SONOFF MINI-DIM Smart Light Dimming Module

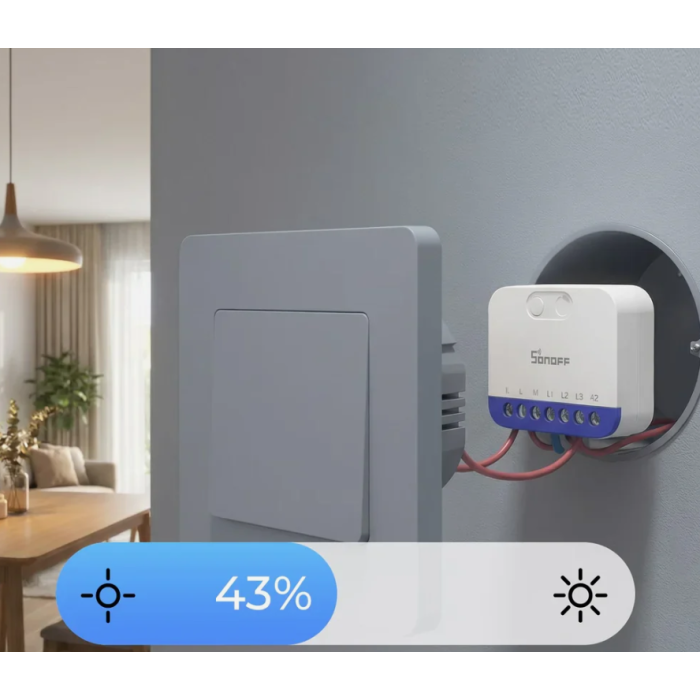

SONOFF MINI-DIM is an extremely compact, flush-mounted smart lighting dimming module from the MINI Extreme series. It is designed to be installed in a wall box behind an existing light switch and allows you to upgrade traditional dimmable lighting with smart home features.

The module uses trailing-edge dimming technology, which ensures broad compatibility with modern dimmable LED lights. It also supports incandescent bulbs, halogen lamps, and compatible electronic ballasts.

MINI-DIM allows for automatic or manual calibration of the brightness range to adapt to the characteristics of the connected light fixture. This enables smoother dimming and helps reduce flickering at low brightness levels.

Thanks to support for Matter over Wi-Fi, you can integrate it with Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, and Home Assistant. In addition to turning the lights on and off, you can also adjust the brightness via supported platforms.

Through the app, you can set timers, schedules, and smart automations. Built-in real-time power monitoring provides better insight into the energy consumption of the connected lighting, and the module also includes overheating protection.

MINI-DIM supports various types of external switches and also allows you to control the same light from two locations. With a thickness of just 16.8 mm, it is suitable for installation in standard wall boxes.

Key advantages:

• Compact built-in dimming module
• Matter over Wi-Fi
• 2.4 GHz Wi-Fi connection
• smooth brightness adjustment
• trailing-edge dimming technology
• Automatic and manual brightness calibration
• Compatible with dimmable LED lights
• Support for incandescent and halogen bulbs
• Support for dimmable electronic ballasts
• current power monitoring
• overheating protection
• Timers and schedules
• Smart scenes and automations
• voice control
• Support for various types of external switches
• Compatibility with Apple Home, Google Home, Alexa, SmartThings, and Home Assistant

Technical Specifications:

• Model: MINI-DIM
• Series: SONOFF MINI Extreme
• Type: smart in-wall dimming module
• Rated voltage: 220–240 V AC
• Frequency: 50 Hz
• Maximum current: 2 A
• Dimmable LED lights: up to 200 VA
• Incandescent bulbs: up to 400 W
• Halogen lamps: up to 400 W
• Dimmable electronic transformers: up to 200 W
• Wireless connection: 2.4 GHz Wi-Fi
• Smart home standard: Matter
• Neutral wire: required
• Housing material: PC
• Operating temperature: –10 °C to 40 °C
• Dimensions: 45 × 39.4 × 16.8 mm
• Net weight: 24.5 g
