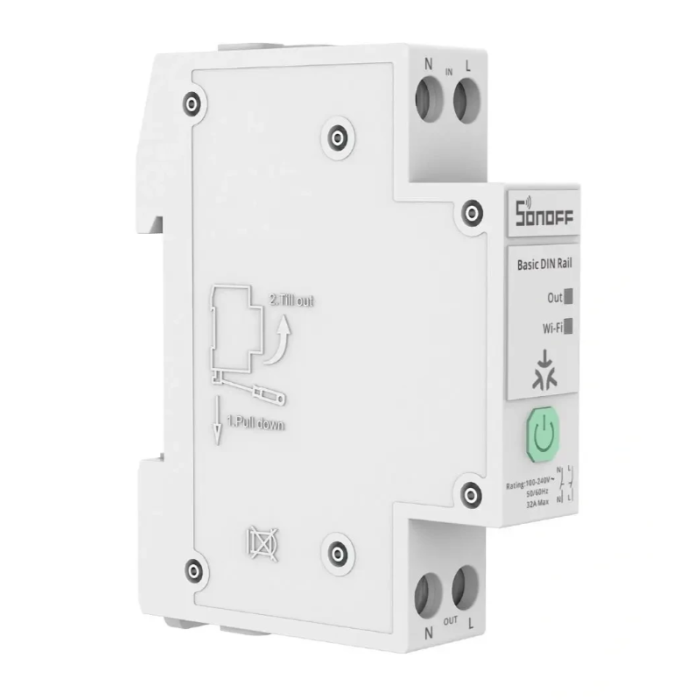

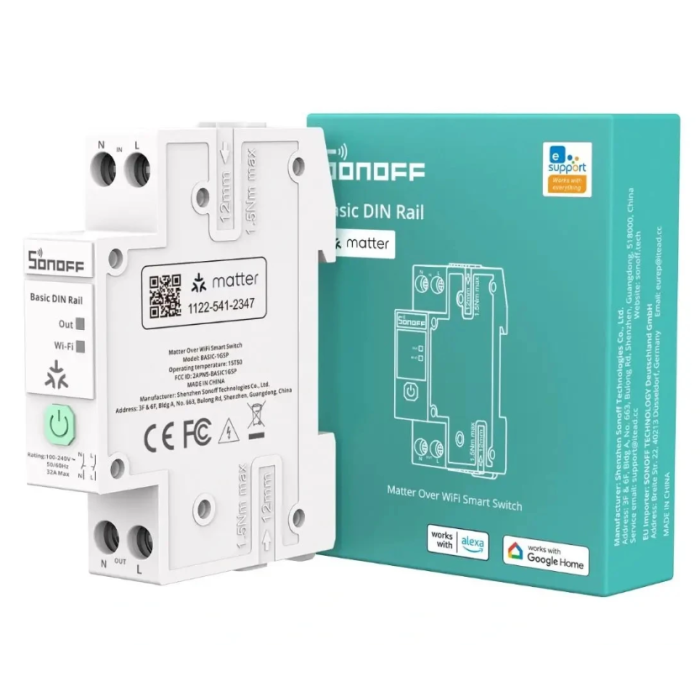

SONOFF BASIC-1GSP Smart Wi-Fi Module for DIN Rail

The SONOFF BASIC-1GSP is a powerful 1-channel smart relay module for DIN rails, designed to control electrical circuits directly from a distribution panel. It is suitable for residential and commercial buildings where you want to upgrade a traditional electrical circuit with the ability to control it remotely, automate it, and monitor energy consumption.

The module supports loads of up to 32 A or 7,680 W, making it suitable even for more demanding electrical loads. It mounts on a standard DIN rail and enables centralized control without the need for an additional wall switch.

The built-in energy consumption measurement function allows you to monitor current voltage, current, power, and total consumption. This makes it easier to monitor the operation of connected devices and control electricity consumption.

The BASIC-1GSP also supports setting limit values for current, voltage, and power. If the set values are exceeded, the module can automatically cut off power to the connected circuit, thereby providing additional protection for electrical wiring and appliances.

A unique feature of this model is its two-pole disconnection, which cuts off both the phase and neutral conductors when the power is turned off. This enables a more complete electrical isolation of the connected circuit.

Thanks to support for Matter over Wi-Fi, you can connect the module to various smart home systems, such as Apple Home, Google Home, Amazon Alexa, and SmartThings. It supports remote control, scheduling, and integration into various smart scenes and automations.

Key benefits:

• 1-channel smart relay module
• mounts on a standard DIN rail
• Maximum current up to 32 A
• Maximum load up to 7,680 W
• Matter over Wi-Fi
• monitoring of electricity consumption
• Display of voltage, current, and power
• Adjustable current, voltage, and power thresholds
• Automatic shutdown when set values are exceeded
• Bipolar disconnection of the phase and neutral conductors
• remote control
• Timers and schedules
• smart scenes and automations
• Compatibility with Apple Home, Google Home, Amazon Alexa, and SmartThings

Technical Specifications:

• Model: BASIC-1GSP
• Type: Smart relay module for DIN rail
• Number of channels: 1
• Power supply: 100–240 V AC, 50/60 Hz
• Maximum current: 32 A
• Maximum load: 7,680 W
• Wireless connection: Wi-Fi
• Smart home standard: Matter
• Energyconsumption tracking: Yes
• Dual-pole circuit breaker: Yes
• Housing material: PC
• Flame-retardant rating: UL94 V-0
• Recommended wire gauge: 4–10 mm²
• Dimensions: 84 × 66.5 × 18 mm
• Net weight: 92.1 g
• Color: white
• Installation: DIN rail
