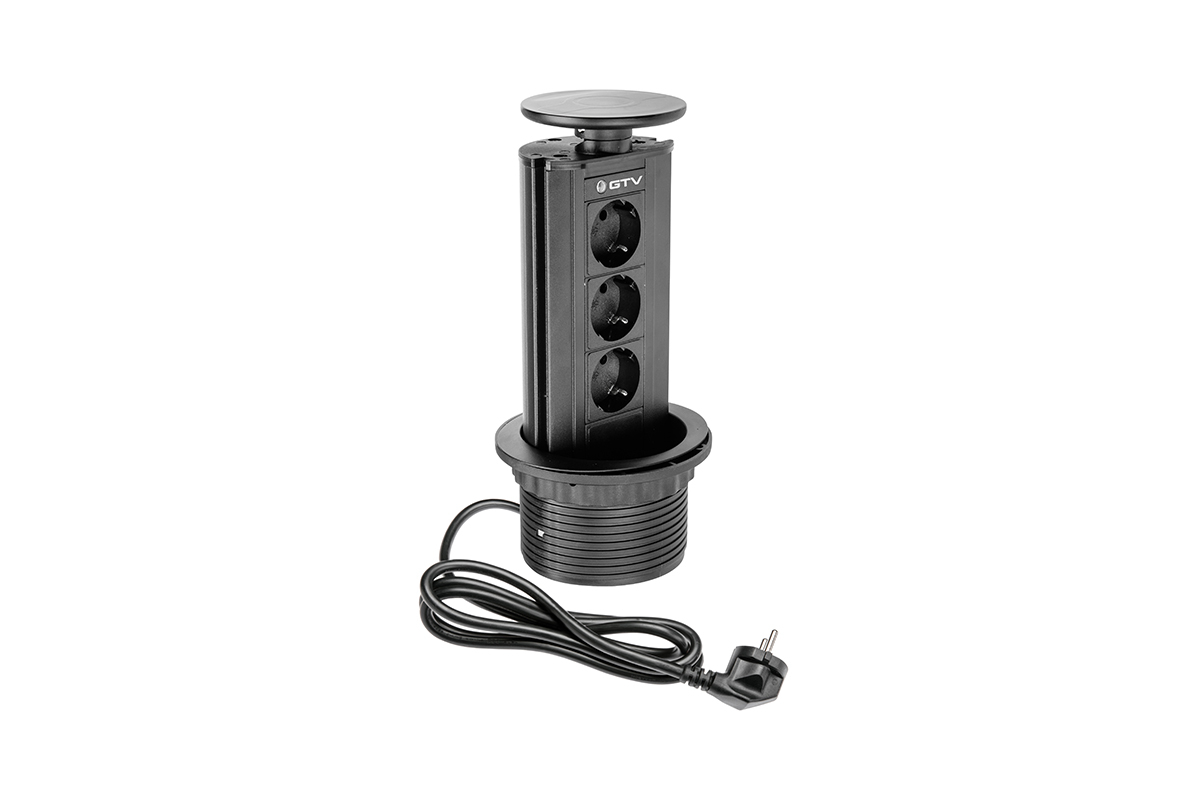

Ugradbena utičnica GTV AE-BPW3GS-20 (3x 230V, Ø100mm)
Ugradbena utičnica GTV AE-BPW3GS-20 (3x 230V, Ø100mm)
50,00 €
Dobavljivo
Ronis Čakovec - Galerija sjever
Ronis Zagreb - Velesajam
Ronis Varaždin - skladište
Ronis Zagreb - Velesajam
Očekivana isporuka do 12.08.2026.
Točniju potvrdu roka i dostupnost javit ćemo ubrzo po narudžbi.
Informacije o raspoloživosti i vremenu isporuke su indikativne, ažuriraju se u intervalima i podložne su promjenama, te ne čine obvezujuću ponudu. Potvrdu dostupnosti i cijene ćemo vam dostaviti nakon što primimo i obradimo vašu narudžbu. Ugovor o kupnji je sklopljen tek po izdavanju računa.
An immersion socket helps save valuable space in your kitchen or work area.
For office, kitchen or other furniture.
Available in black or silver to match your furniture perfectly. You select the desired color using the compiler.
With cable and plug for easy connection to the mains.
Installation is fairly easy and is suitable for a home builder.
Installation:
depending on the surface (wood, metal or stone) you need a suitable crown with a diameter of 100mm, with the help of an electric drill a hole is drilled in a predetermined place, a connection cable with a socket is routed through it, a fastening ring is installed from below and the socket is ready for use.
Use:
lift the cover slightly for better grip and pull the socket up until it is fully extended. After use, simply press on the cover and the socket will lower into its housing.
Number of sockets:
3x schuko socket 16A / 220-240V AC
Other connections:
/
Max. permissible load:
3600W
Protection standard:
IP20
Child protection:
YES
Material:
plastic + aluminum
Colors available:
black and silver
Dimensions:
as can be seen from the figure
Installation dimensions:
Ø 100mm (diameter)
Suitable for thick surfaces:
15 - 52mm
Layout:
built-in
Attachment:
screws are not required
Connection cable length:
1,5m
Plug:
YES
Weight (net):
890г
Warranty:
24 months
Manufacturer code:
AE-BPW3GS-20 / AE-BPW3GS-80
Article code:
13270/14078
Šifra: 101721RN
EAN: 5908231338839
Više o proizvodu
Jamstvo
24 mjeseci
- An immersion socket helps save valuable space in your kitchen or work area.
- For office, kitchen or other furniture.
- Available in black or silver to match your furniture perfectly. You select the desired color using the compiler.
- With cable and plug for easy connection to the mains.
- Installation is fairly easy and is suitable for a home builder.
Installation:
depending on the surface (wood, metal or stone) you need a suitable crown with a diameter of 100mm, with the help of an electric drill a hole is drilled in a predetermined place, a connection cable with a socket is routed through it, a fastening ring is installed from below and the socket is ready for use.
Use:
lift the cover slightly for better grip and pull the socket up until it is fully extended. After use, simply press on the cover and the socket will lower into its housing.
| Number of sockets: | 3x schuko socket 16A / 220-240V AC |
| Other connections: | / |
| Max. permissible load: | 3600W |
| Protection standard: | IP20 |
| Child protection: | YES |
| Material: | plastic + aluminum |
| Colors available: | black and silver |
| Dimensions: | as can be seen from the figure |
| Installation dimensions: | Ø 100mm (diameter) |
| Suitable for thick surfaces: | 15 - 52mm |
| Layout: | built-in |
| Attachment: | screws are not required |
| Connection cable length: | 1,5m |
| Plug: | YES |
| Weight (net): | 890г |
| Warranty: | 24 months |
| Manufacturer code: | AE-BPW3GS-20 / AE-BPW3GS-80 |
| Article code: | 13270/14078 |
