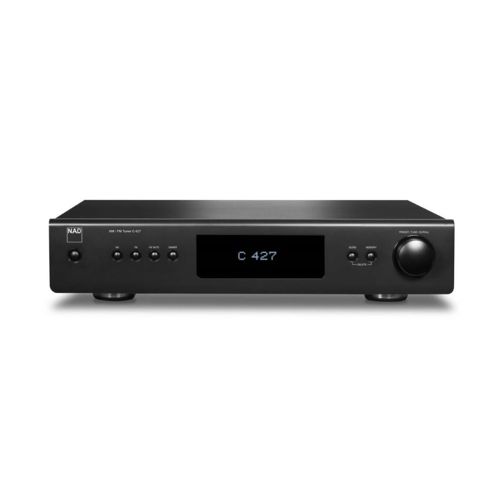

Tuner NAD C 427

Tuner sjajnih soničnih dometa, RDS sa prikazom imena stanice i radio teksta, 40 stanica preseta, kvalitetan VFL grafički displej,analogni izlaz, RS-232 sučelje, daljinski upravljač, raspoloživ u crnoj boji. Dimenzije su 435?mm(š) x 315mm(d) x 99mm(v).

Specifikacije:

Key Features RDS PS (Station name) and RT (Radio text) 40 Station random presets (AM or FM) VFL graphic display MOS-FET RF Front End RS-232 Interface IR Input NAD Full Function Remote Control <0.5W Standby power consumption

FM Tuner Usable Sensitivity (98MHz): 10dBµV Signal/Noise Ratio: 65dB (60dBµV IHF-WTD Mono) / 60dB (60dBµV IHF-WTD Stereo) Frequency Response: ±1.5dB (20Hz – 15kHz, 60dBµV) Channel Separation (60dBµV): 30Hz: 33dB 1kHz: 40dB 10kHz: 32dB Capture Ratio (40dBµV): 3dB AM Suppression: 50dB (60dBµV, 100% Mod. FM, 30% Mod. AM) Image Rejection (119.4MHz): 70dB I.F. Rejection (10.7MHz): 70dB Pilot Suppression (60dBµV): 60dB Total Harmonic Distortion: Mono: 0.4% Stereo: 0.8% Auto Search Sensitivity: 24dBµV RDS Decode Sensitivity: 26dBµV

AM Tuner Usable Sensitivity (999/1000kHz): 55dBµV Signal/Noise Ratio (5mV in): 42dB Total Harmonic Distortion (5mV in): 1.5% IF Rejection (450kHz): 40dB Image Rejection (F+2xIF): 28dB Selectivity: 20dB Loop Sensitivity (20dB S/N): 999/1000Hz: 66dB 603/300Hz: 66dB 1404/1400Hz: 66dB

General Specifications Standby power: <0.5W Gross Unit Dimension* (W x H x D): 435 x 99 x 315mm (17 1/8 x 3 15/16 x 12 7/16”) Net weight: 4.6kg (10.1lb) Shipping weight: 5.4kg (11.9lb)
