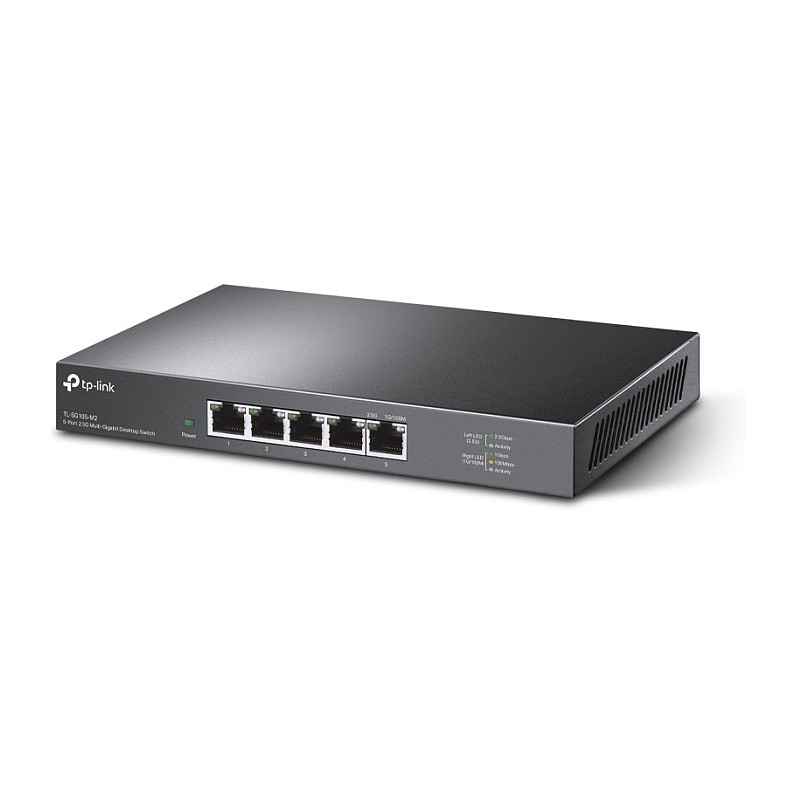

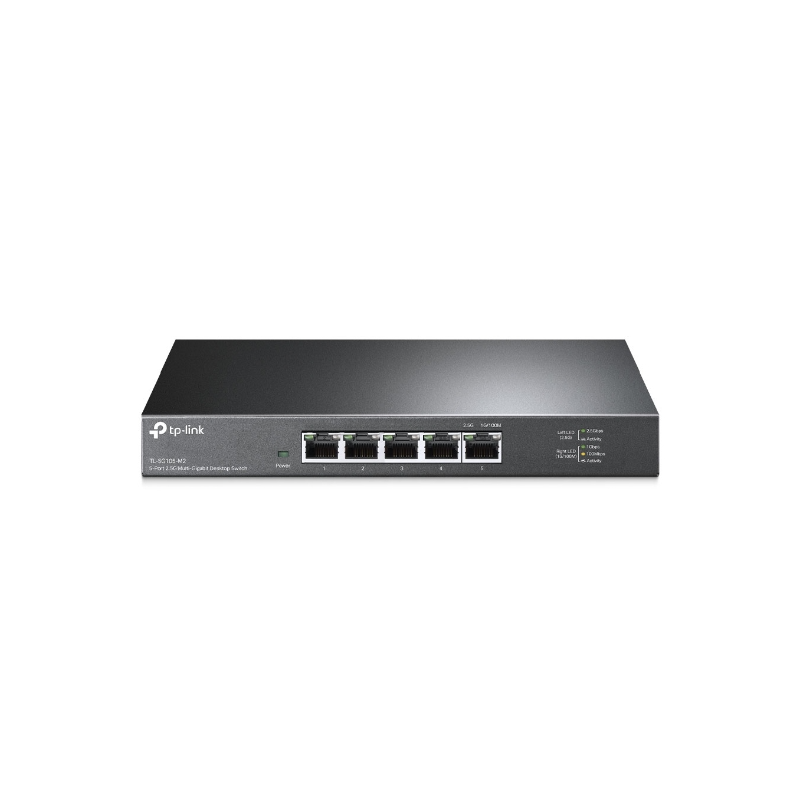

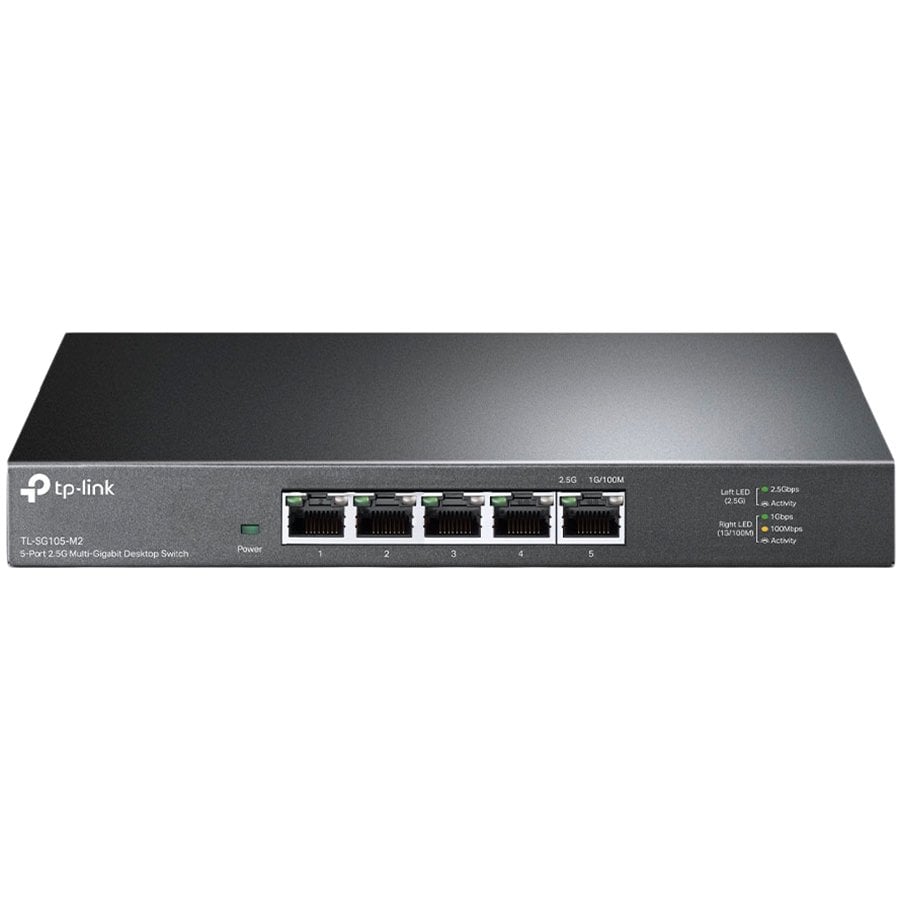

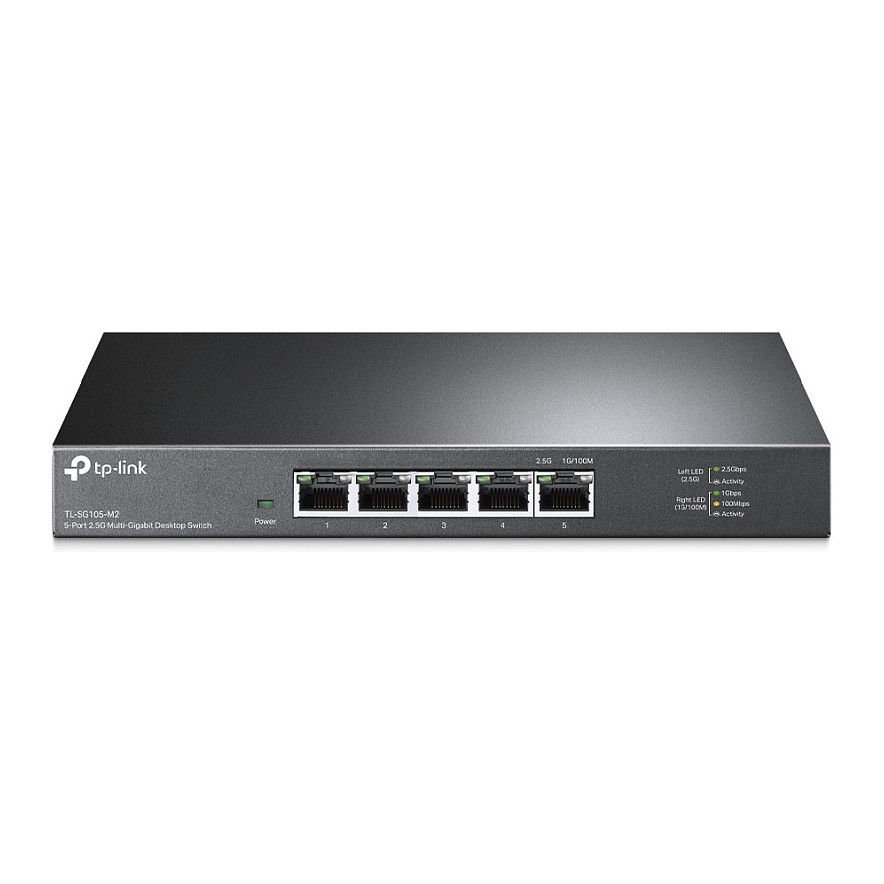

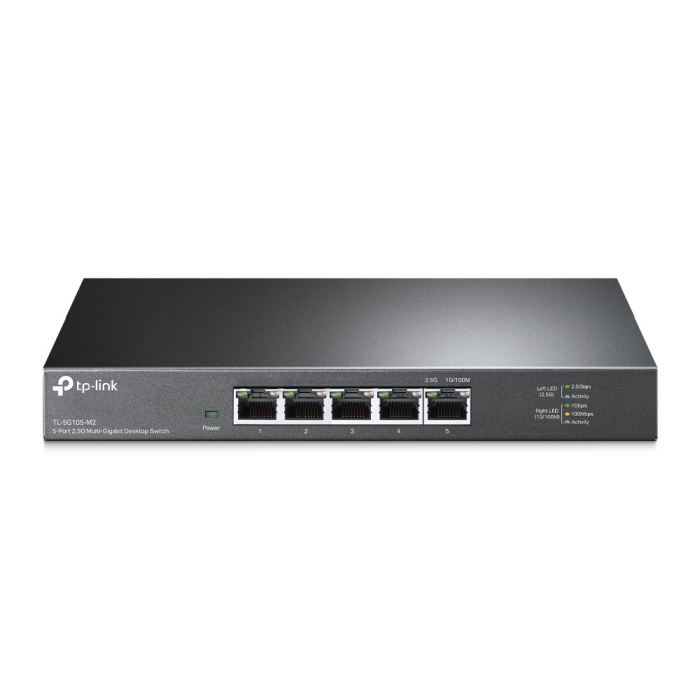

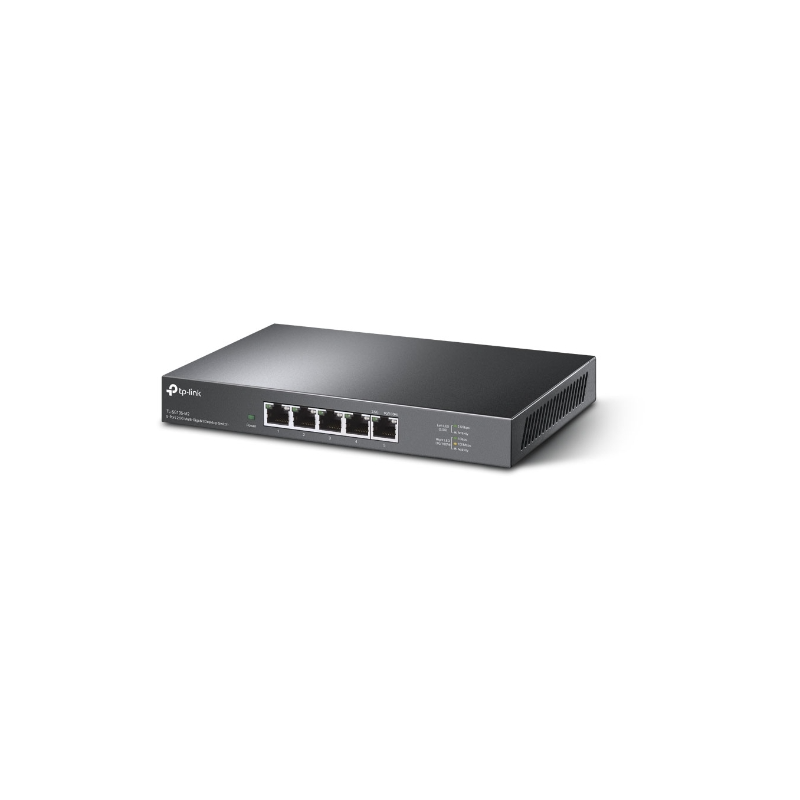

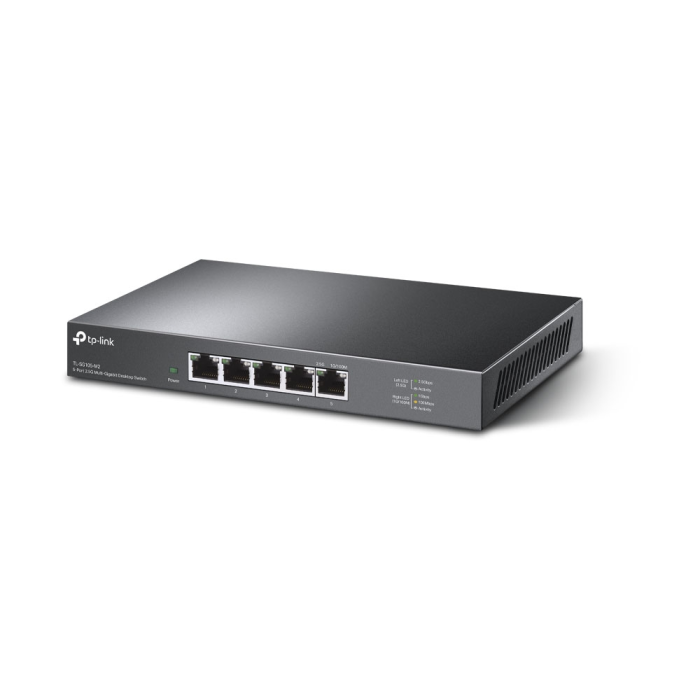

TP-LINK 5 port 2.5G network switch
Odmah dostupno
Pet ports of 2.5 Gbps. 5 × 2.5-gigabit ports unlock the highest performance of your bandwidth and Multi-Gig devices, providing up to 25 Gbps switching capacity.

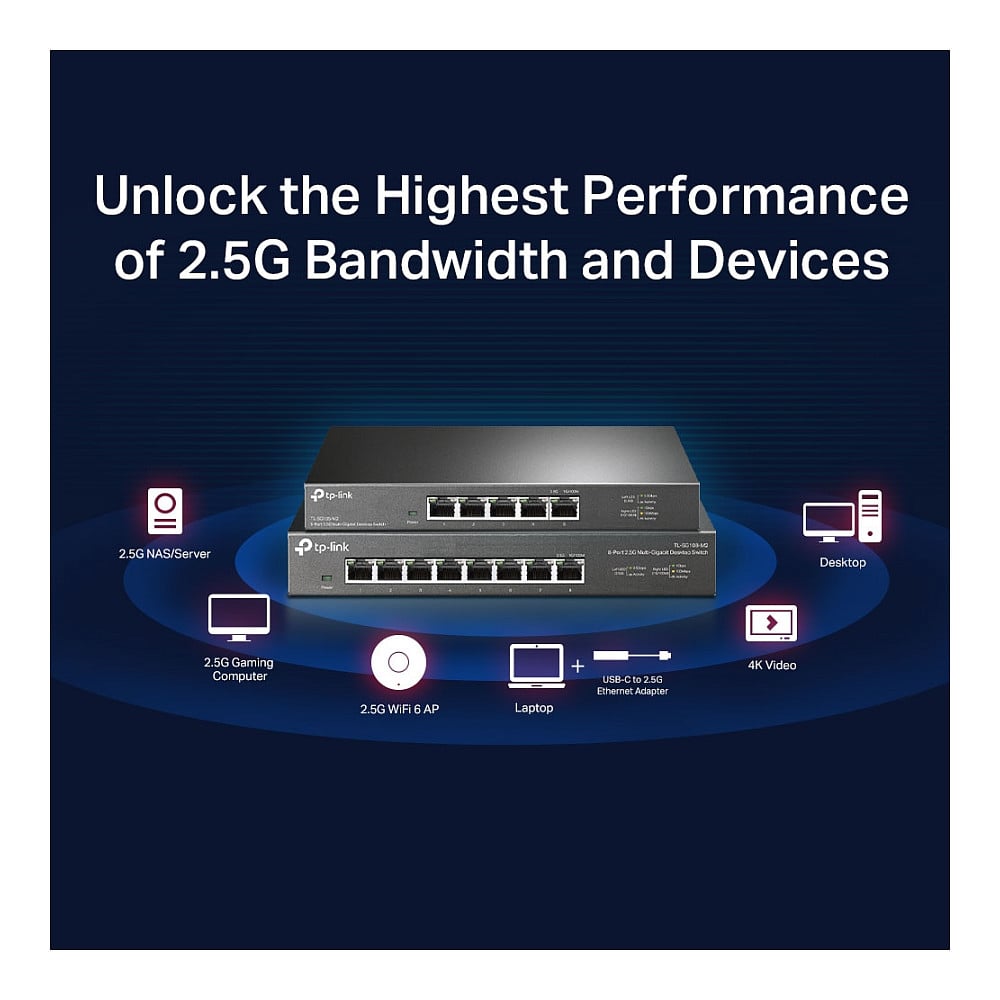

Super fast connections. Enables ultra-fast connections to 2.5G NAS, 2.5G server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
Ideal for various scenarios. Designed for LAN parties, home entertainment, small and home offices, and instant transfer for workstations.

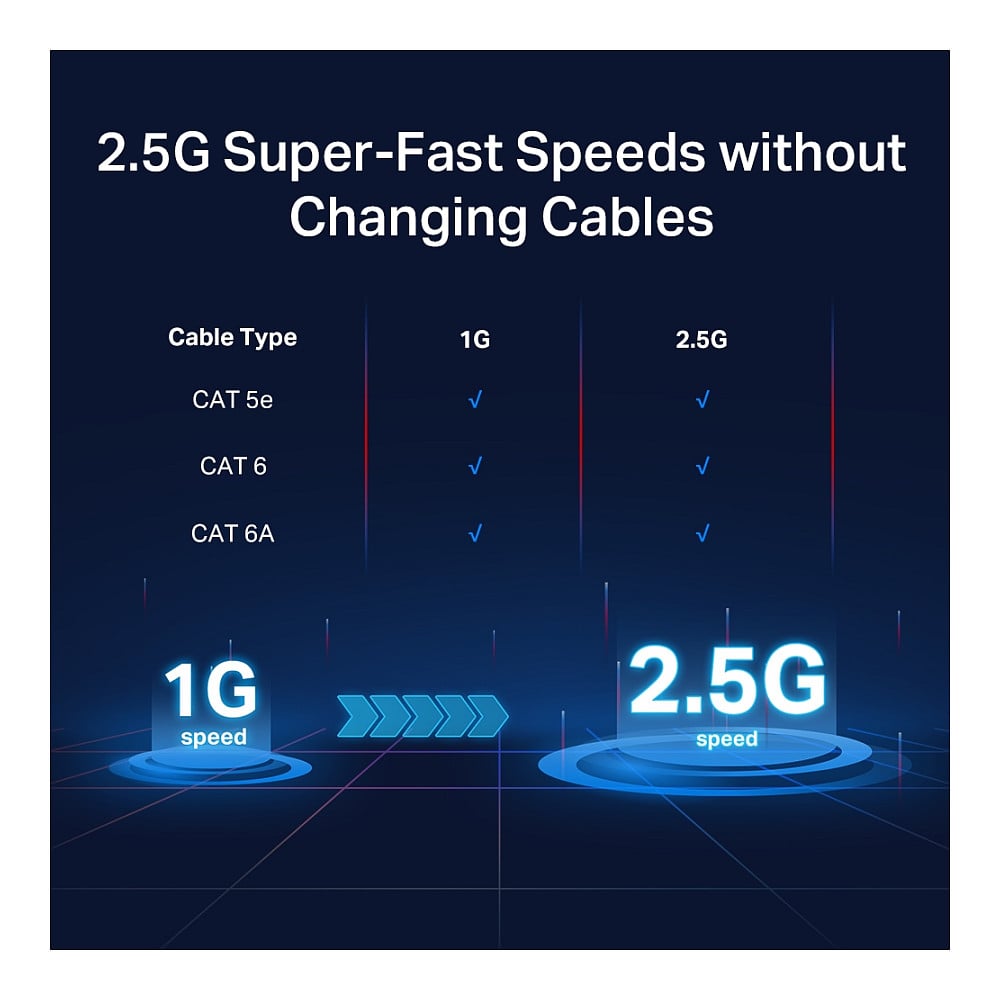

Hassle-free cable deployment. Upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassles.
Quiet operation. Industry-leading fanless design ensures quiet operation, ideal for any home or business.
Plug and play. Enables easy installation without the need for a technician.
Metal housing. Durable metal housing and desktop/wall-mount design are suitable for different environments.
HARDWARE FEATURES
Standards and protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Interface 5× 100Mbps/1Gbps/2.5Gbps ports, auto-negotiation, auto MDI/MDIX
Fan quantity Fanless

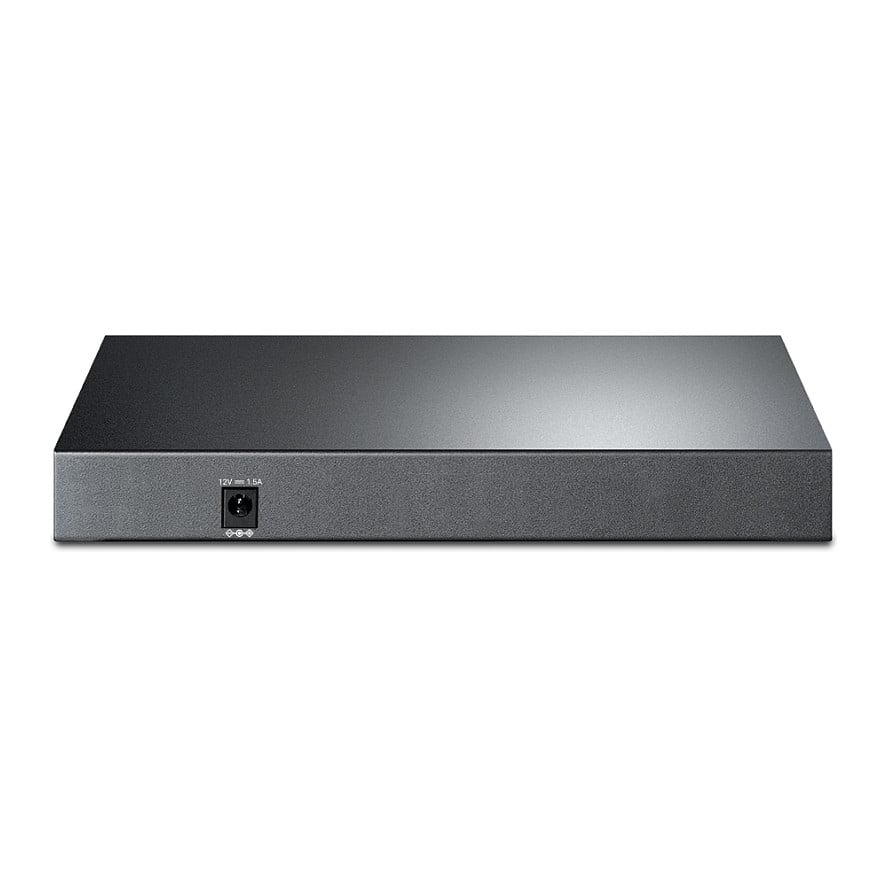

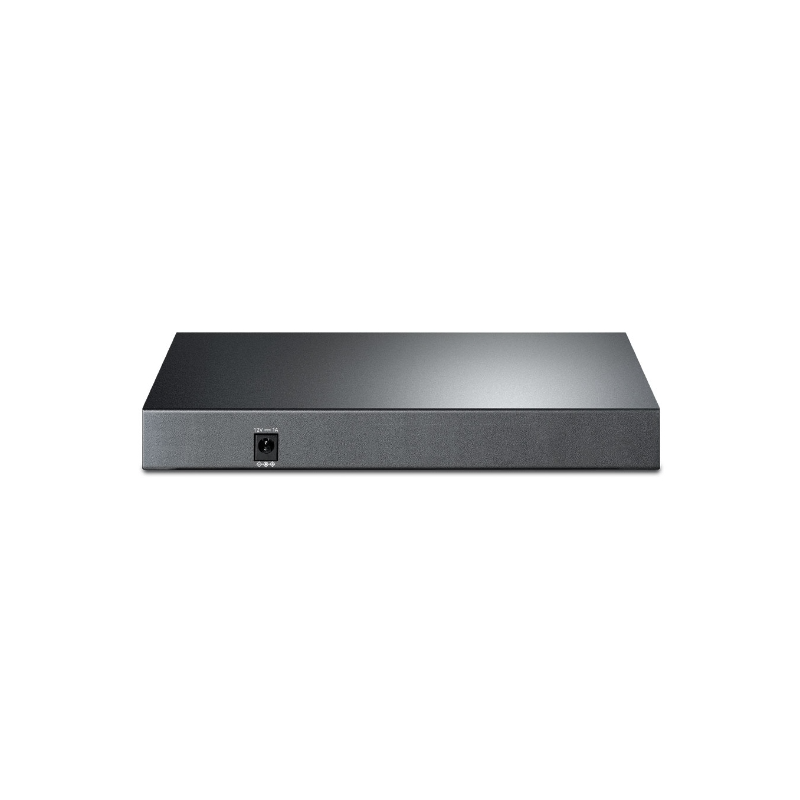

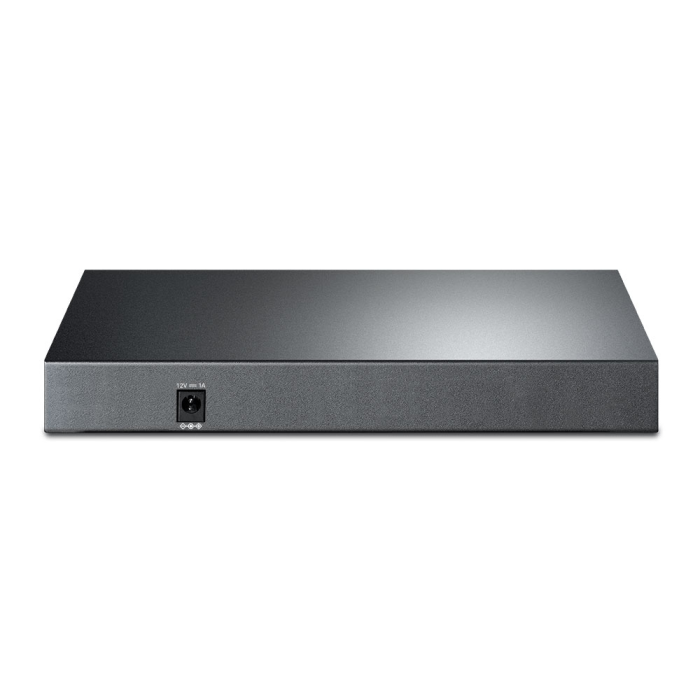

External power supply External power supply (Output: 12 VDC / 1 A)
LED indicator • System power: 1
• Link/Act indicators: 5, 1 indicator per port, built into each RJ-45 port
Dimensions (W × D × H) 8.2×4.9×1.0 in (209×126×26 mm)
Maximum power consumption 12.11W
Maximum heat dissipation 41.32 BTU/h
PERFORMANCE
Switching capacity 25 Gbps
Packet forwarding rate 18.6 Mpps
MAC address table 16 K
Packet buffer 1.5 Mb
Jumbo frame 10 KB
SOFTWARE FEATURES
Advanced features
• 802.3X flow control
• 802.1p/DSCP QoS
Transmission method Store and forward
OTHERS
Certification CE, FCC, RoHS
Package contents
• 5-port 2.5G multi-gigabit desktop switch TL-SG105-M2
• Power adapter
• Installation guide
• Rubber feet
Environment
• Operating temperature: 0–40 °C (32–104 °F)
• Storage temperature: -40–70 °C (-40–158 °F)
• Operating humidity: 10–90% RH non-condensing
• Storage humidity: 5–90% RH non-condensing
