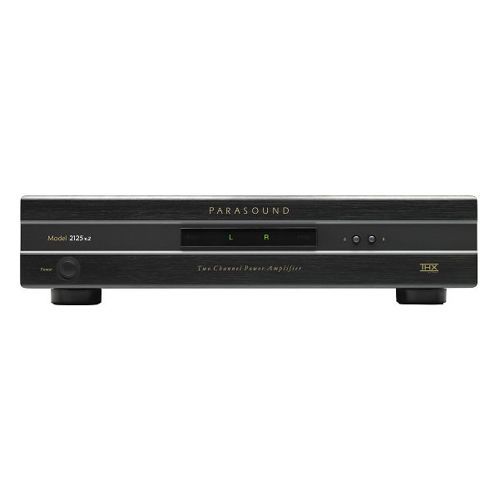

Stereo pojačalo PARASOUND NewClassic 2125 v2

2-kanalno pojačalo snage 150 watts x 2 (8 ohma), 225 watts x 2 (4 ohma), mono 400W, kapacitet struje 35 amps po kanalu, frekvencijski raspon, 20 Hz - 50 kHz, ulazna impedancija 33 kOhma.

Specifikacije:

All Channels Driven
150 watts x 2, 8?
225 watts x 2, 4?
225 watts x 2, 2? (Load switch set to 2-3?)

Bridged Mono
400 watts x 1, 8?
400 watts x 1, 4? (Load switch set to 2-3?)

Current Capacity
35 amps peak per channel

Frequency Response
20 Hz - 50 kHz, +0/-3 dB, 1 watt
Dynamic Headroom - 1.3 dB

Total Harmonic Distortion
0.25% at full rated output
0.015% at average listening levels

IM Distortion - 0.05 %
Transient IM Distortion - Not measurable

S/N Ratio
114 dB at rated output, IHF A-weighted
106 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted

Input Impedance - 33 k ?

Input Sensitivity 1 V in for 28.28 V out, THX standard

Inter-Channel Crosstalk
85 dB @1 kHz, 73 dB @10 kHz, 67 dB @ 20kHz
Damping Factor - Over 150 at 20Hz
12V Trigger Turn On - DC 9 – 12V, 15 mA

Audio Turn On
Quieter: 1 mV
Louder: 6 mV

AC Power Requirement
110 - 120 V / 220 -240 V, 50 - 60 Hz
0.5 watts standby
32 watts Idle (no audio)
550 watts full output

Dimensions
171/4" Wide
16" Deep, with cables connected
4.25" High with feet, 3.5" panel only (2U)
(437 x 406 x 107mm, 88.2 mm panel only)

Net Weight - 27 lbs (12.3 kg)
Rack Mount Accessory May be Purchased Separately: RMK22

Više o proizvodu na www.parasound.com
