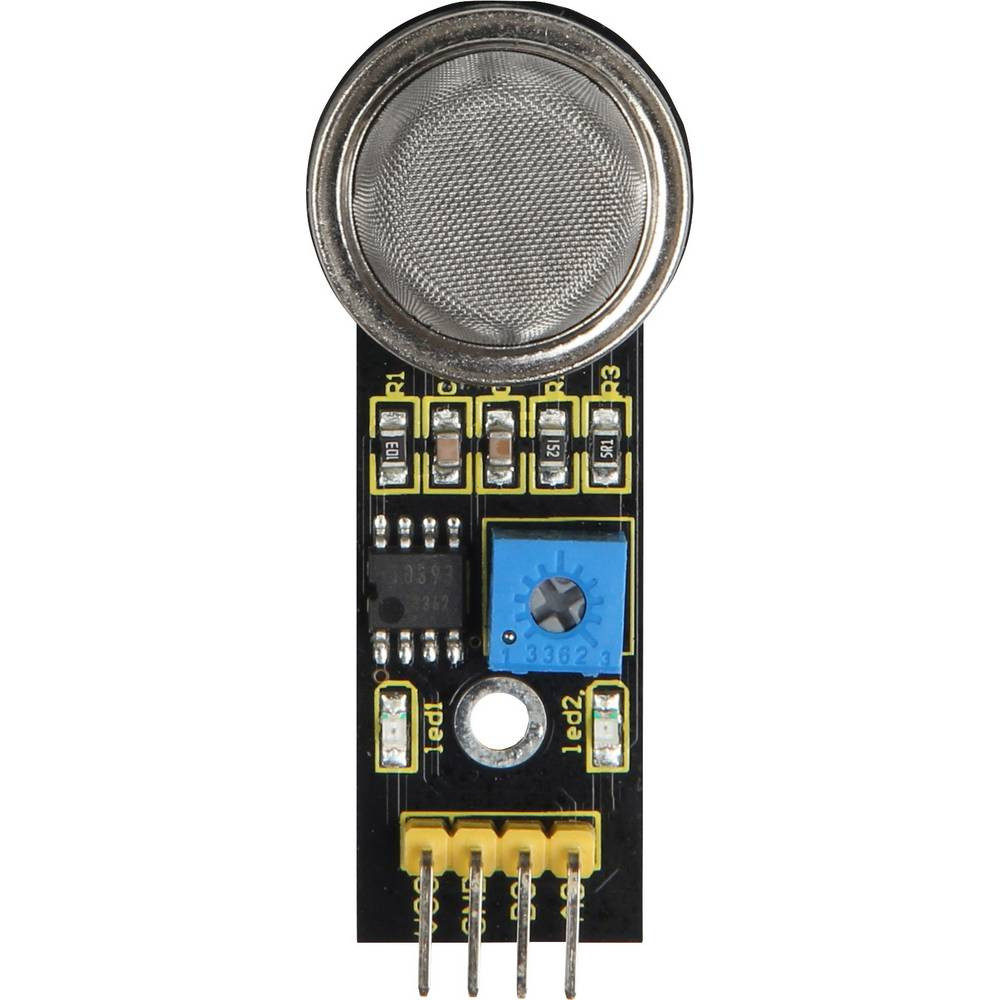

Senzor za plin JOY-IT MQ4, CNG, metan (CH4)
Senzor za plin JOY-IT MQ4, CNG, metan (CH4)
8,20 €
-3% dodatnog popusta
= 7,95€ uz plaćanje odjednom (osim Diners i PayPal)
= 7,95€ uz plaćanje odjednom (osim Diners i PayPal)
Dobavljivo
Ronis Čakovec - Galerija sjever
Ronis Zagreb - Velesajam
Ronis Varaždin - skladište
Ronis Zagreb - Velesajam
Očekivana isporuka do 25.09.2026.
Točniju potvrdu roka i dostupnost javit ćemo ubrzo po narudžbi.
Informacije o raspoloživosti i vremenu isporuke su indikativne, ažuriraju se u intervalima i podložne su promjenama, te ne čine obvezujuću ponudu. Potvrdu dostupnosti i cijene ćemo vam dostaviti nakon što primimo i obradimo vašu narudžbu. Ugovor o kupnji je sklopljen tek po izdavanju računa.
Gas sensor
This analog gas sensor has a small heating part with an electronical chemical sensor.
It is suitable for indoor usage.
The sensor can output exact values only after...
This analog gas sensor has a small heating part with an electronical chemical sensor.
It is suitable for indoor usage.
The sensor can output exact values only after...
EAN: 4250236819952
Više o proizvodu
Gas sensor
This analog gas sensor has a small heating part with an electronical chemical sensor.
It is suitable for indoor usage.
The sensor can output exact values only after warmup phase.
Caution: sensor gets hot while usage
Specifications
Measurement range
300 - 10000 ppm
Measureable substances
Compressed natural gas (CNG), methane (CH4)
Application areas
Detecting gas leaks, gas alarm, robotic, microcontroller projects
Compatible with
Raspberry Pi (with AD-converter), Arduino. etc.
Special features
High sensitivity which can be adjusted by potentiometer, quick reaction time
Analog Output
Values are processed by the microcontroller
Digital Output
thresholds can be set
Pins
VCC: Voltage supply 5V, GND: Ground, AOUT: Analog Output, DOUT: Digital Output
Response time
? 10 s
Recovery time
? 30 s
Heating current
? 180 mA
Heating resistance and power
31 ± 3?; ?900 mW
Working temperature
-20 - 55 ° C
Dimensions
52 x 20 x 18 mm
Weight
8 g
https://joy-it.net/en/products/SEN-MQ4
