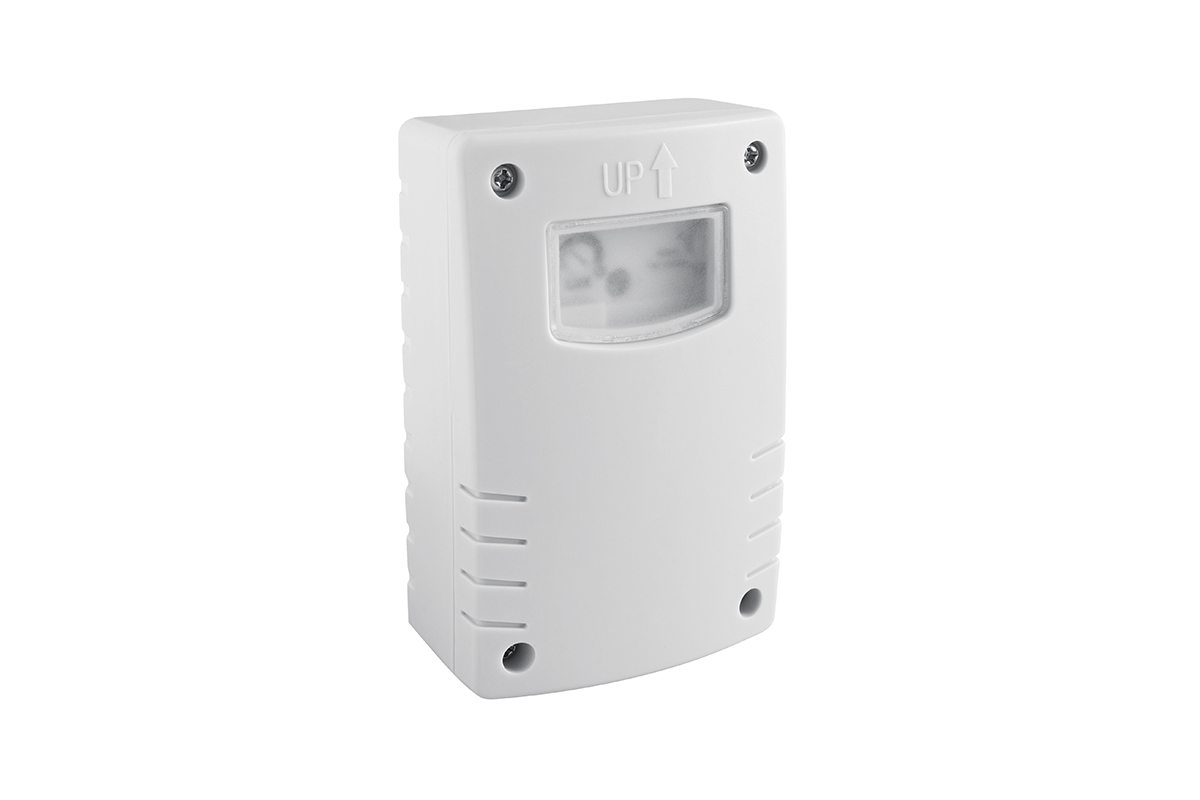

Senzor svjetla GTV luxomat (1500W, podesiv, IP54)
Senzor svjetla GTV luxomat (1500W, podesiv, IP54)
12,50 €
-3% dodatnog popusta
= 12,13€ uz plaćanje odjednom (osim Diners i PayPal)
= 12,13€ uz plaćanje odjednom (osim Diners i PayPal)
Odmah dostupno
Ronis Čakovec - Galerija sjever
Ronis Zagreb - Velesajam
Ronis Varaždin - skladište
Ronis Zagreb - Velesajam
Očekivana isporuka do 20.10.2026.
The light sensor is used to automatically turn on the lights at dusk and off at dawn. This saves electricity.
The sensor is protected in a waterproof housing.
Possible settings:
- ambient light from 3 - 500 LUX
- time delay: from 1 -9 hours and the possibility of setting from dusk to dawn
The sensor is suitable for wall mounting above light elements.
Possibility of cable routing from the back or bottom of the sensor.
Mounting accessories (screws and inserts) are included.
Installation:
- first make sure that there is no voltage in the mains
- determine the correct position of the sensor: it must be placed above the lamp to avoid poor performance
- connect the lamp (consumer) and power supply (mains) to the switch - the wiring diagram is given in the enclosed instructions
- after the installation, lower the el. current and check the operation of the sensor
Technical specifications:
| Voltage: | 220-240V AC / 50-60Hz |
|
Maximum permissible load: |
1500W / 10A |

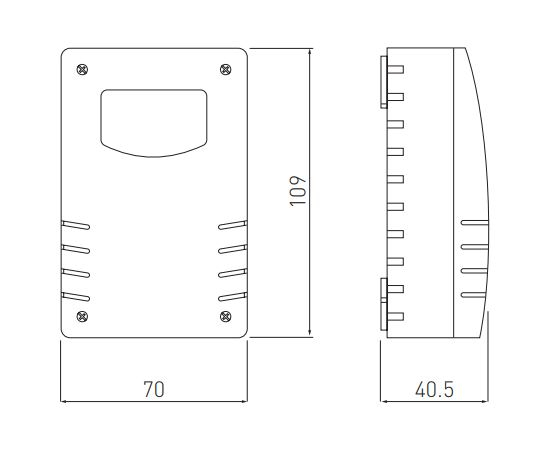

| Switch dimensions: | 70 x 109 x 40.5mm |
| Weight: | 130г |
| Sensor protection standard: | IP54 |
Šifra: 80784
EAN: 5901867108937
