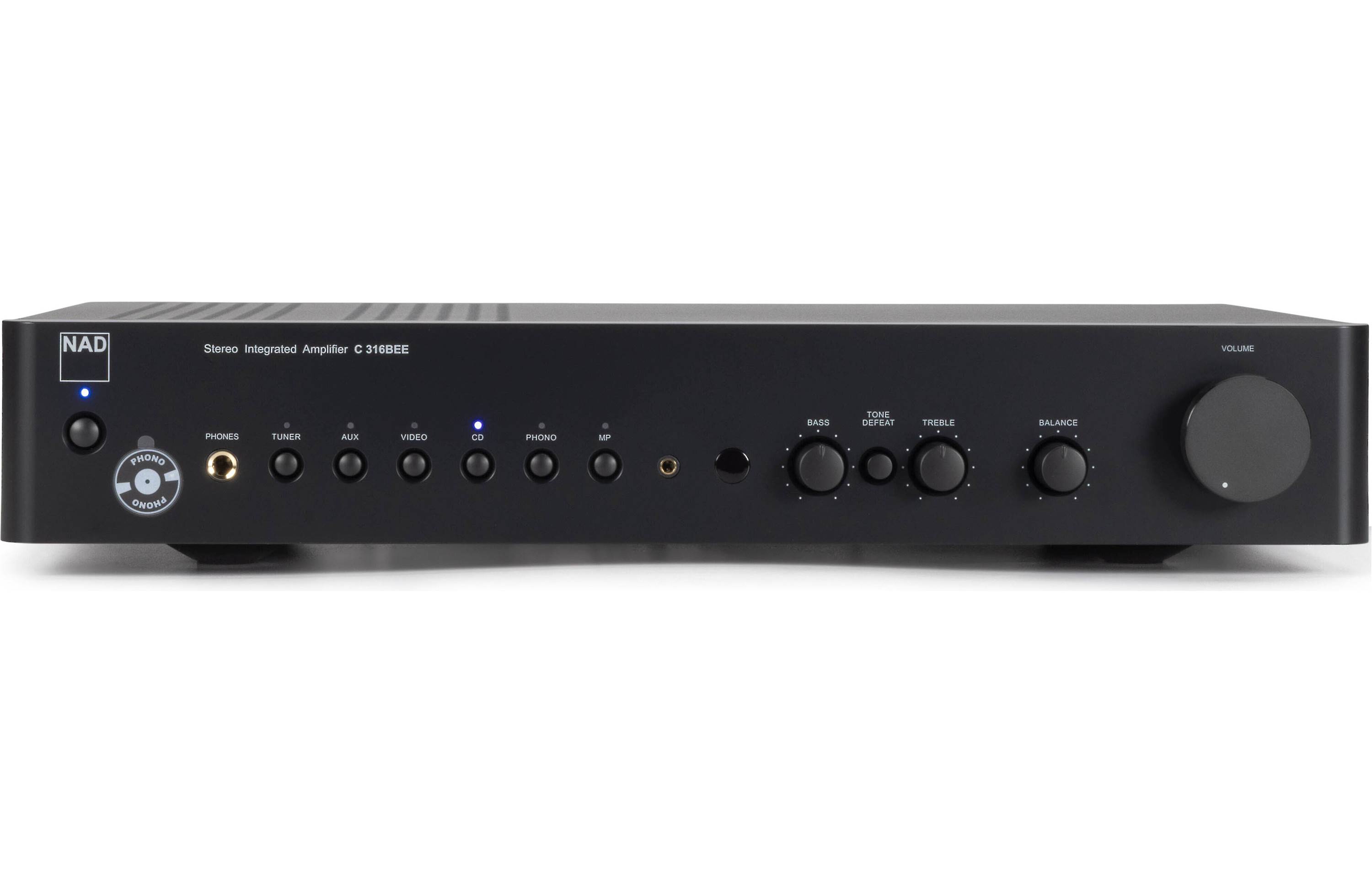

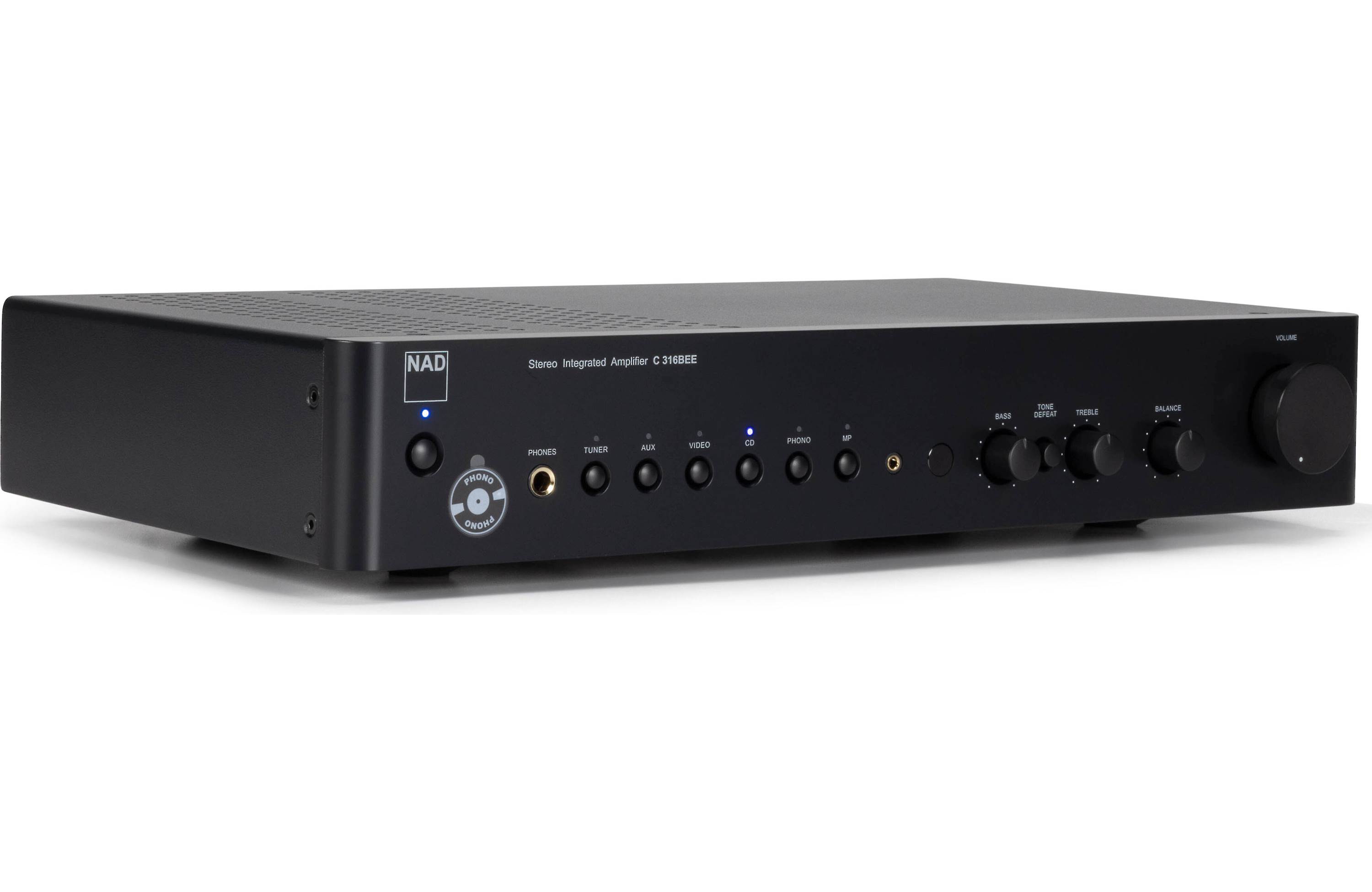

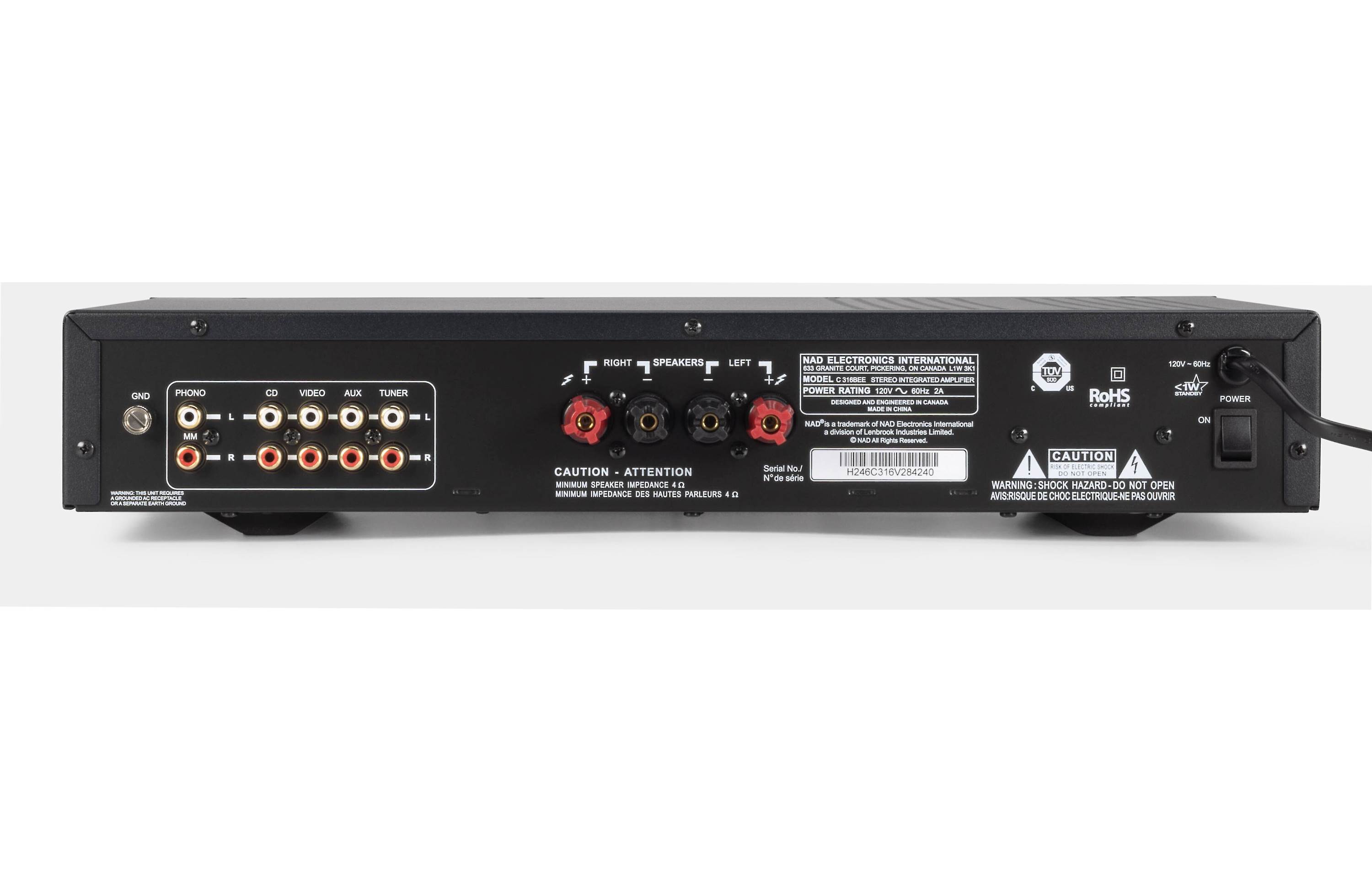

Pojačalo NAD C316 BEE V2

Analogno stereo integrirano pojačalo izuzetnog omjera uloženo/dobiveno sa phono stage-om, kontinuirana snaga 2 x 40W koja omogućuje stabilan rad i sa dinamički zahtjevnim zvučnicima, ulaz za slušalice i Media Player na prednjoj ploči, daljinski upravljač, PowerDrive, 5 Line Level ulaza.

Line In / Headphone Out

• THD (20 Hz – 20 kHz)
• <0.03 % in 300 ohms at 2 V out
• Signal-to-Noise Ratio
• >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
• Frequency response
• ±0.3 dB (20 Hz – 20 kHz)
• Output impedance
• 8 ohms

Line In / Speaker Out

• Continuous output power into 8 ohms and 4 ohms
  40W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
• THD (20 Hz – 20 kHz)
• <0.03 % (250 mW to 40 W, 8 ohms and 4 ohms)
• Signal-to-Noise Ratio
• >95 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
  >97 dB (A-weighted, 500 mV input, unity gain in 32 ohms)
• Clipping power (at 1 kHz 0.1 % THD)
• >45 W in 8 ohms
  >60 W in 4 ohms
• IHF dynamic power
• 8 ohms: 90 W
  4 ohms: 120 W
  2 ohms: 170 W
• Damping factor
• >200 (ref. 8 ohms, 1 kHz)
• Frequency response
• ±0.3 dB (20 Hz – 20 kHz, Tone Defeat ON)
  Treble: ± 5dB at 10 kHz
  Bass: ± 8 dB at 100 Hz
• Channel separation
• >70 dB (1 kHz)
• Maximum input level
• 4.3V (1 kHz THD 0.1%)
• Input sensitivity (for 40 W in 8 ohms)
• 200 mV
• Standby power
• <0.5 W

Phono In / Speaker Out

• THD (20 Hz – 20 kHz)
• <0.03 % (1 W to 40 W, 8 ohms and 4 ohms)
• Signal-to-Noise Ratio
• >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)
• Frequency response (RIAA deviation)
• +0.3 dB (20 Hz – 20 kHz, Tone Defeat ON)
• Maximum input level
• 71 mV (1 kHz THD 0.1%)
• Input sensitivity (for 40 W in 8 ohms
• 2.95 mV

Dimension and Weight

• Gross dimensions (W x H x D)
• 17 1/8 x 3 9/16 x 11 1/4 inches
  435 x 90 x 285 mm
• Net weight
• 5.5 kg (12.1 lbs)
• Shipping weight
• 6.4 kg (14.1 lbs)
