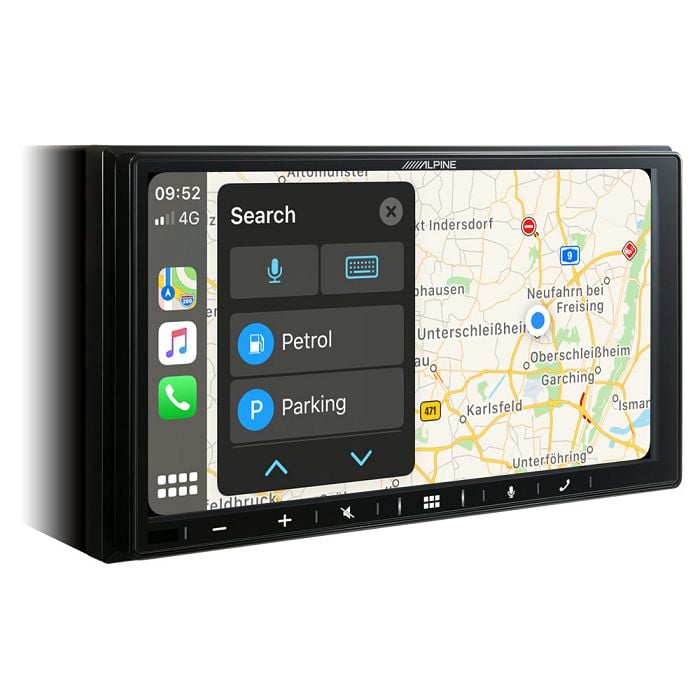

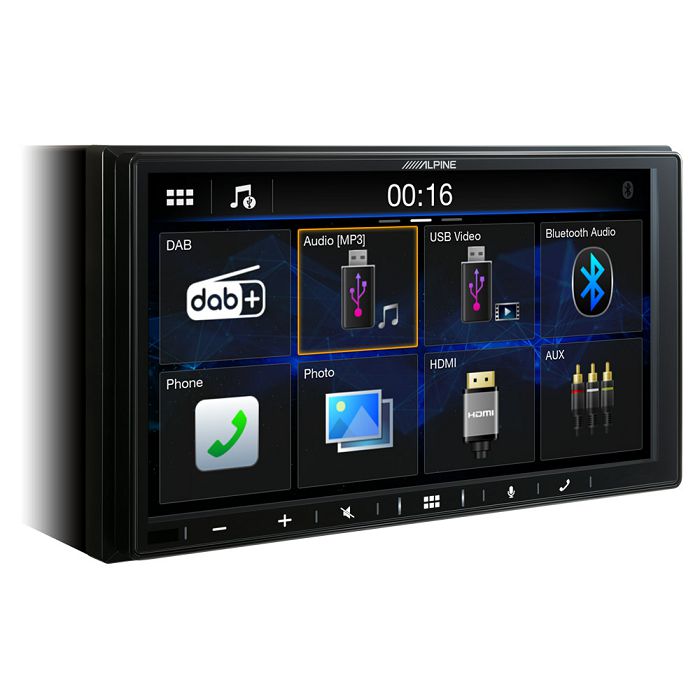

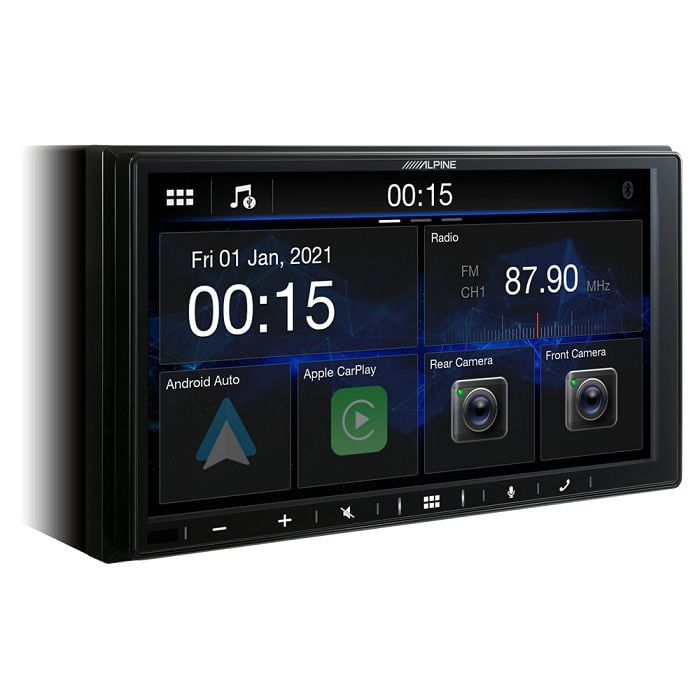

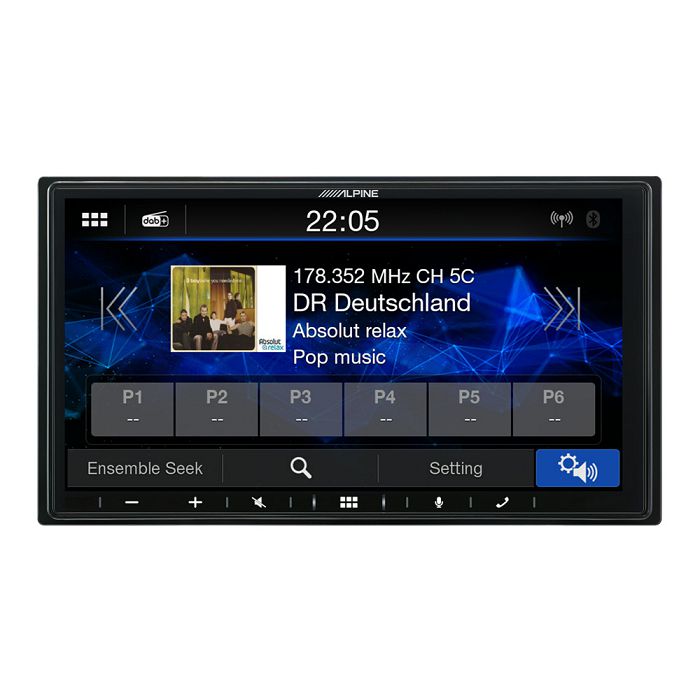

Multimedijska jedinica ALPINE iLX-W690D

Alpine iLX-W690D je 2-DIN multimedijska jedinica sa ekranom dijagonale 7". Na stražnjoj strani uredaja ugraden je USB prikljucak putem kojeg možete reproducirati FLAC/MP3/WMA formate zvuka. Tu je i Bluetooth za telefoniranje ili streaming te FM prijemnik za slušanje radio stanica. Ugradena je podrška za Apple car play kao i za Android. Za dodatno proširenje tu su 3 seta RCA prikljucaka napona 4V sa subwoofer kontrolom, 2 ulaza za kameru te HDMI ulaz.

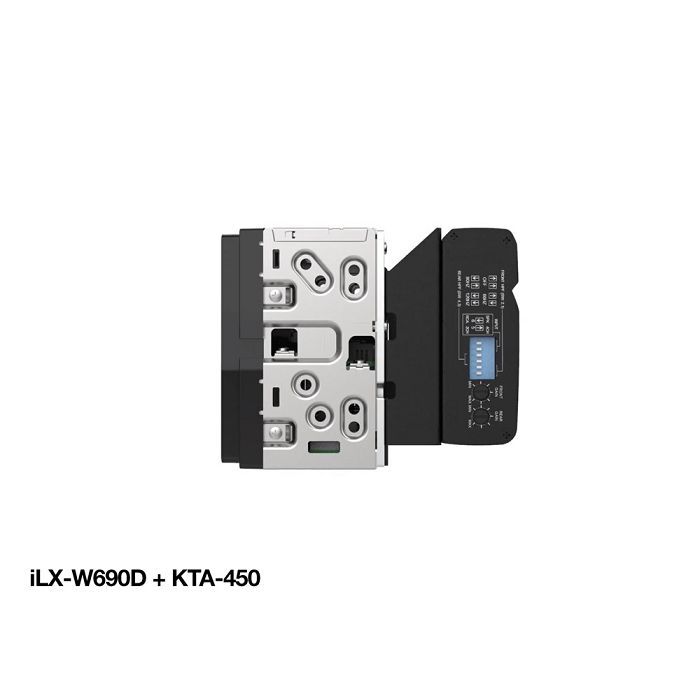

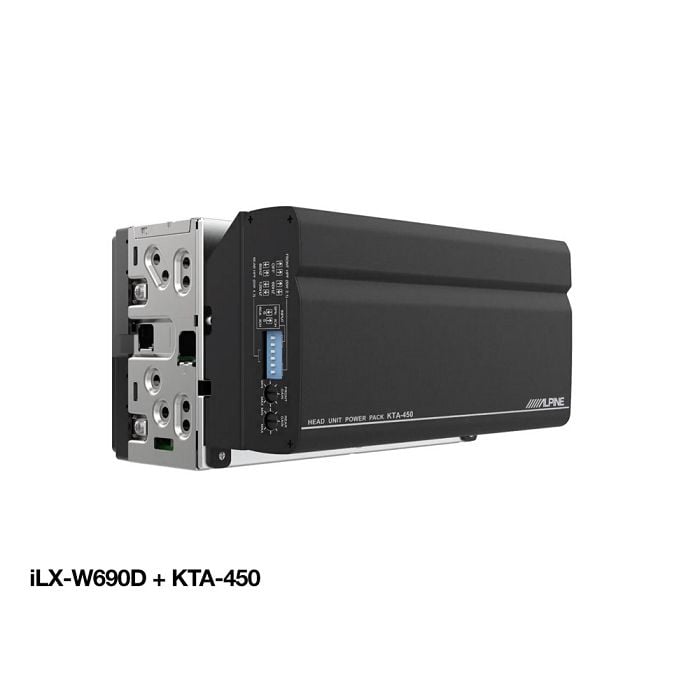

Možete dodatno nadograditi svoj iLX-W690D s KTA-450 4-kanalnim Power Packom ili KTA-200M Mono Power Pack pojacalom s mogucnošcu PowerStack, kako biste povecali svoj zvuk cak pet puta. Obje jedinice mogu se montirati zajedno, kako bi se stvorio vrlo kompaktan paket koji može stati u obican 2DIN prostor. Ovaj Power-Stack dizajn cak je osvojio nagradu "Best of CES 2019".

SPECIFIKACIJE:
7-inch capacitive touch screen with swipe graphical user interface
DAB+ Digital Radio Tuner
AM / FM (RDS) Tuner
Preset Stations (FM: 2x6 / DAB: 3x6 / AM: 1x6)
Works with Apple CarPlay
Works with Android Auto
5-Band Graphic EQ
10 EQ Pre-Sets
Digital Crossover
6-Chanel Digital Time Correction
Media Xpander
Independent Source Volume Level Setting
Built-in Bluetooth for audio streaming and hands-free operation
Included microphone

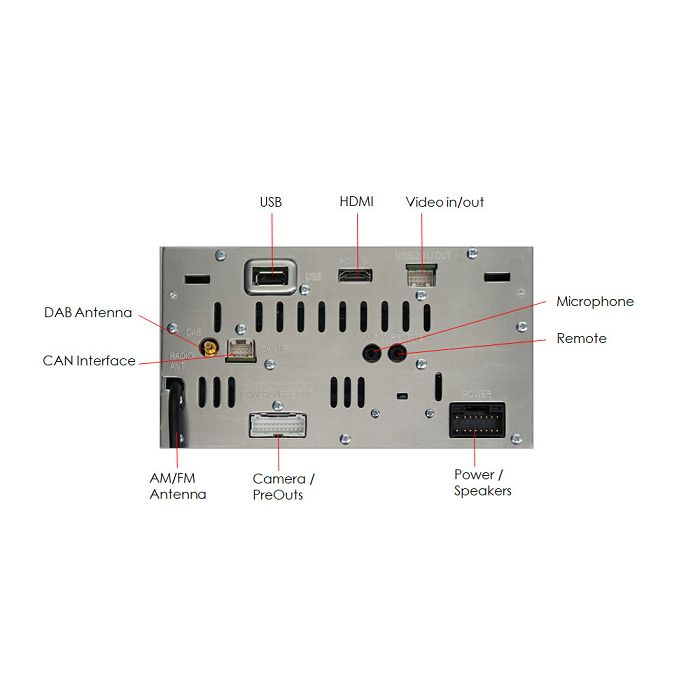

1 A/V AUX Input (RCA)
1 Video Output (RCA)
2 RCA Camera Inputs (front and rear)
HDMI Input
3 PreOuts (4 Volts)
KTA-450 and KTA-200M Power Pack Ready
Built-in Rear USB port
USB video, audio and photo playback
Steering Wheel Remote Control Ready
Remote Control Ready
Various vehicle specific installation kits available

MONITOR SECTION
Screen Size: 7 inch
LCD Type: Transparent type TN LCD
Operation System: TFT active matrix
Number of Picture Elements: 1,152,000 pcs. (800 × 480 × 3 (RGB))
Effective Number of Picture Elements: 99% or more
Illumination System: LED

TUNER SECTION
FM Tuning Range: 87.5 – 108.0 MHz
AM Tuning Range: 531 – 1,602 kHz
Signal-to-Noise Ratio: 65 dB
DAB Tuning Range: 174.928 – 239.2 MHz
Usable Sensitivity: -92dBm
Signal to Noise Ratio Band III: 70dB

USB SECTION
USB requirements: USB 2.0
Max. Power Consumption: 1,500 mA (CDP Support)
USB (Play From Device) / USB (Mass Storage Class)
File System: FAT16/32
Dynamic Range: 95 dB (at 1 kHz)
Signal-to-Noise Ratio: 100 dB
WAV / FLAC / MP3 / WMA / AAC Audio Playback (from USB)
MP4 / MOV / AVI / WMV / MPG Video Playback (from USB)
JPG / PNG / BMP Photo Playback (from USB)

HDMI SECTION
Input Format: 720p/480p/VGA

BLUETOOTH SECTION
Bluetooth Specification: Bluetooth V4.1
HFP (Hands-Free Profile)
PBAP (Phone Book Access Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)

GENERAL
Power Requirement: 14.4 V DC (11–16 V allowable)
Operating temperature: -20 degree Celsius to + 60 degree Celsius
Power Output: 4x 50 Watts
Weight: 1.0 kg

CHASSIS SIZE
Width: 178 mm
Height: 100 mm
Depth: 60 mm
