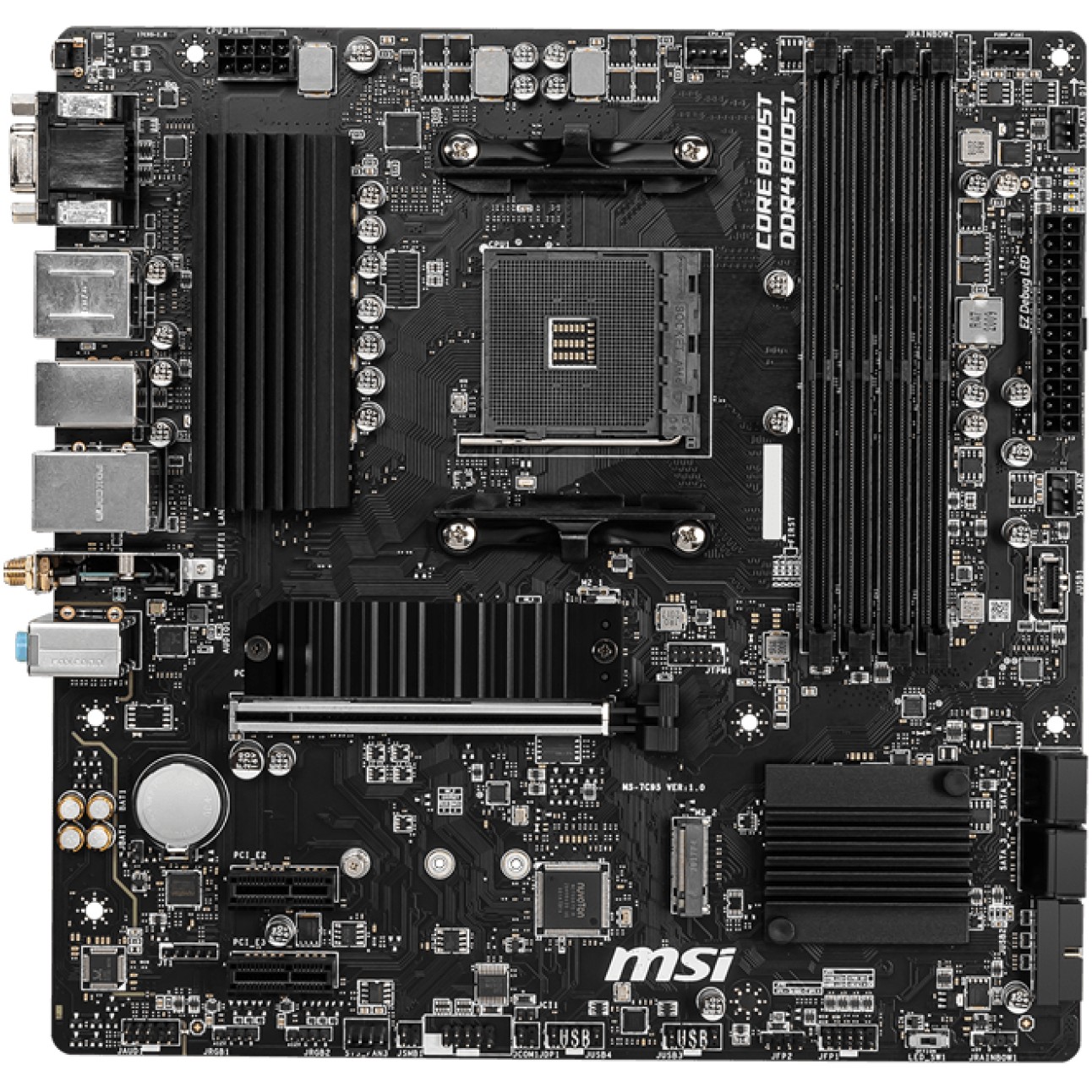

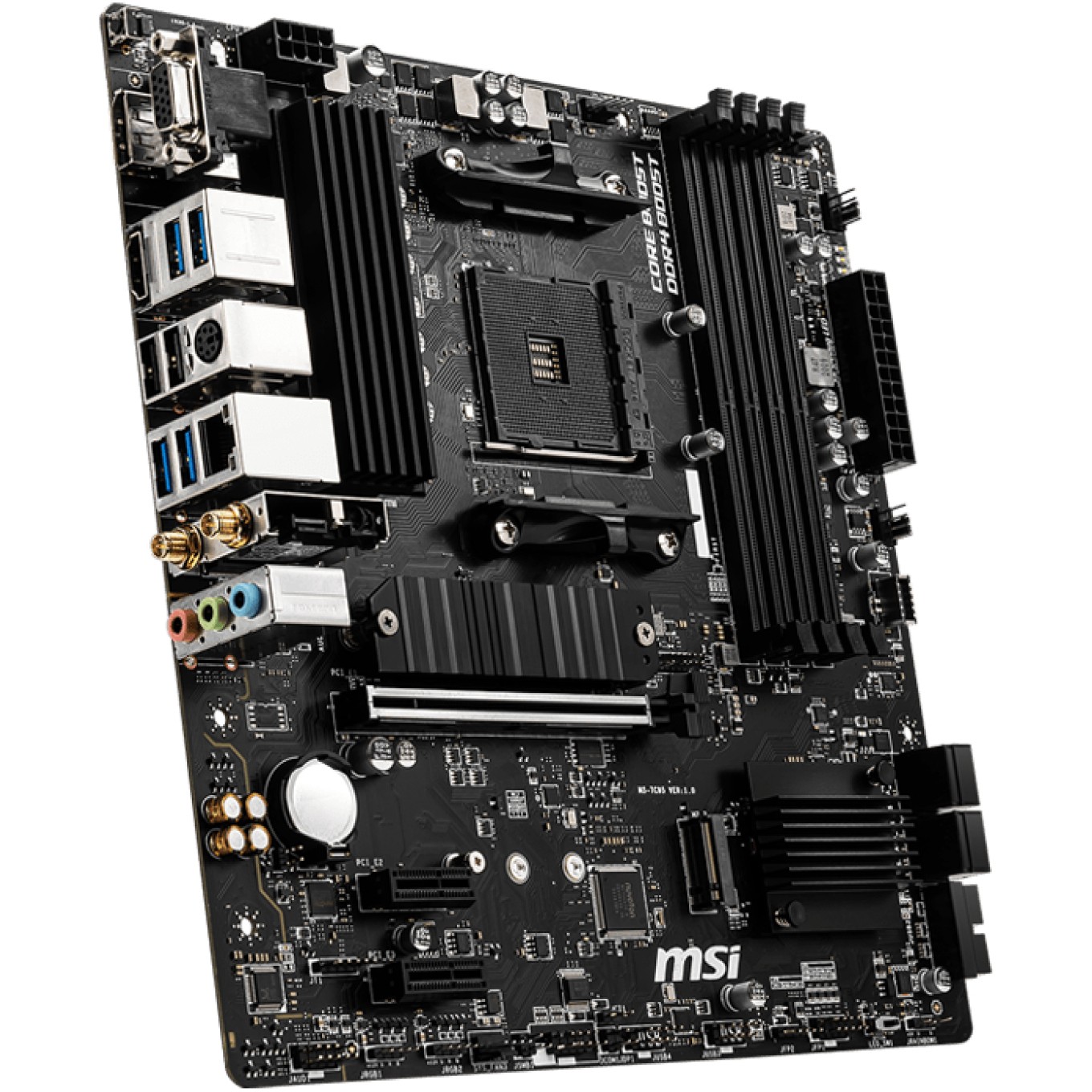

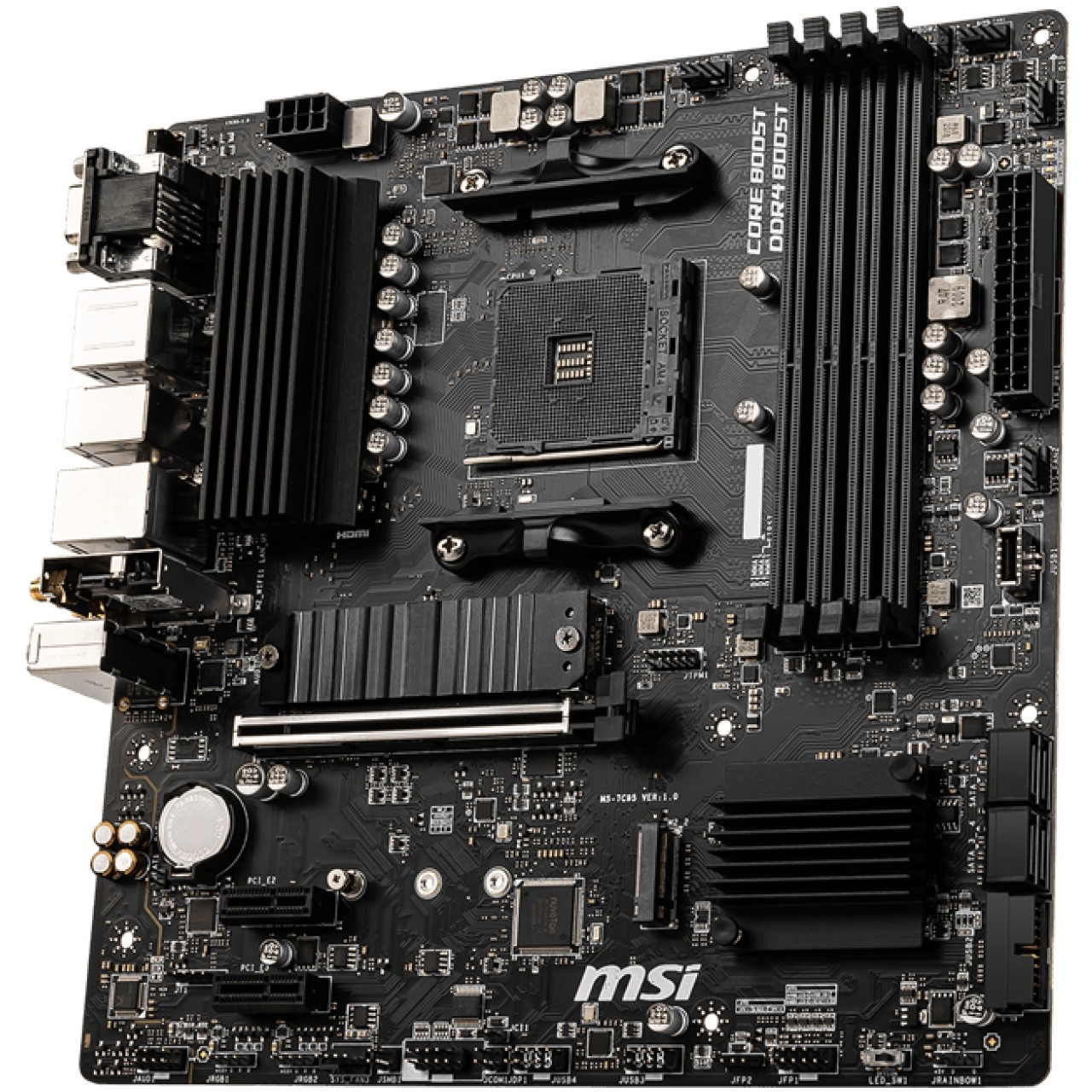

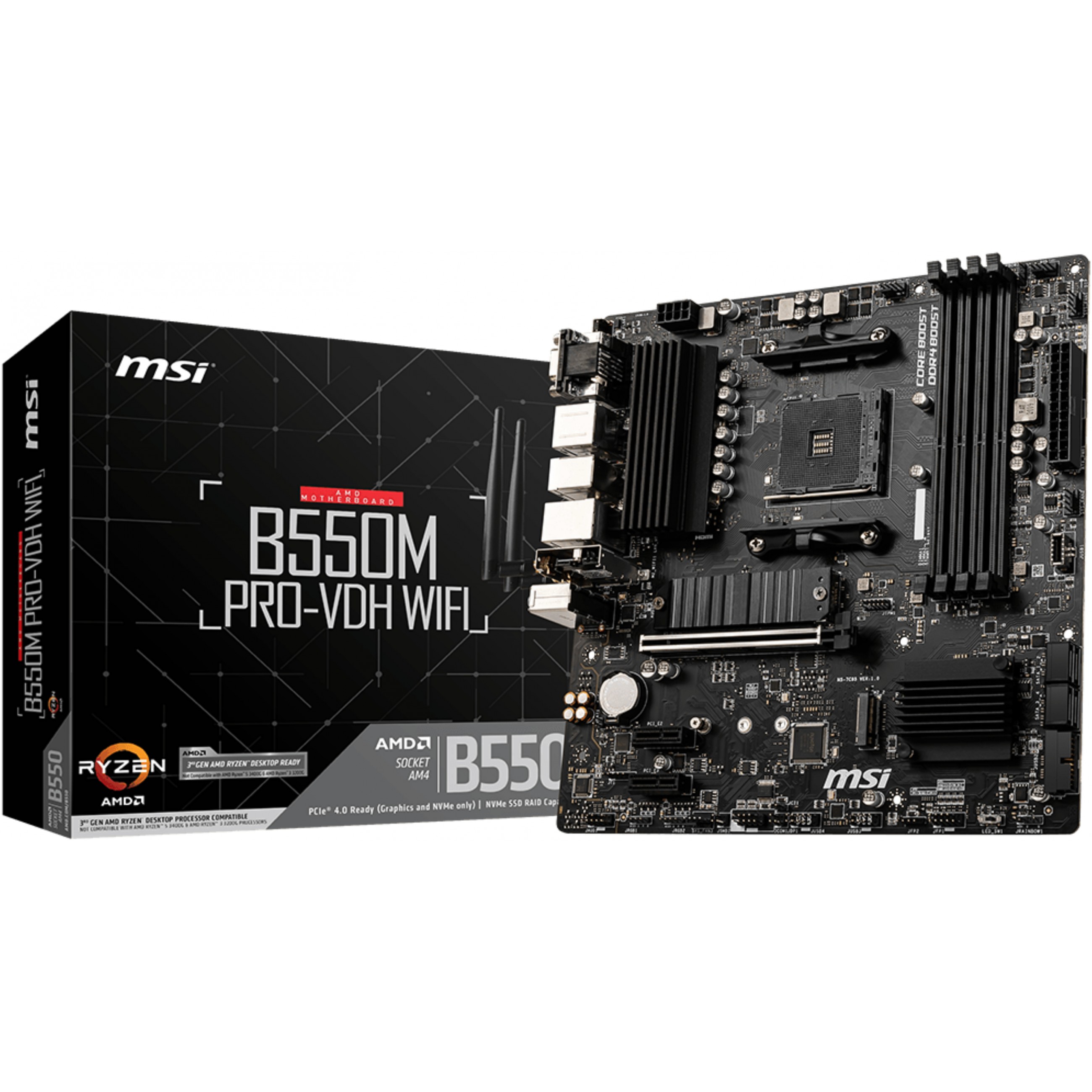

Matična ploča MSI B550M PRO-VDH WIFI (Socket AM4, micro ATX, AMD B550, DDR4)

BIOS Clear CMOS jumper: Yes Expansion slots PCI Express x1 (Gen 3.x) slots: 2 Number of M.2 (M) slots: 2 PCI Express x16 (Gen 4.x) slots: 1 Features Number of mounting holes: 8 Motherboard form factor: micro ATX Motherboard chipset: AMD B550 Audio output channels: 7.1 channels Product colour: Black Motherboard chipset family: AMD Audio chip: Realtek ALC892 Graphics Maximum resolution: 4096 x 2160 pixels Parallel processing technology support: Not supported Maximum graphics card memory: 16000 MB Internal I/O 12V power connector: Yes Serial port headers: 1 Number of chassis fan connectors: 3 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 RGB LED pin header: Yes CPU fan connector: Yes ATX Power connector (24-pin): Yes Number of SATA III connectors: 4 USB 2.0 connectors: 2 Logistics data Harmonized System (HS) code: 84733020 Memory Supported memory clock speeds: 3600 Supported memory clock speeds: 2400 Supported memory clock speeds: 2800 Memory channels: Dual-channel Supported memory clock speeds: 3866 Maximum internal memory: 128 GB Supported memory clock speeds: 2133 Supported memory clock speeds: 3466 Supported memory clock speeds: 1866 Memory slots type: DIMM Number of memory slots: 4 Supported memory types: DDR4-SDRAM Supported memory clock speeds: 3000 Supported memory clock speeds: 3200 Supported memory clock speeds: 4266 Supported memory clock speeds: 4133 Supported memory clock speeds: 4000 Supported memory clock speeds: 2933 Supported memory clock speeds: 2667 Supported memory clock speeds: 3733 Supported memory clock speeds: 4400 MHz Supported memory clock speeds: 3066 Unbuffered memory: Yes Network LAN controller: Realtek 8111HN Bluetooth: Yes Wi-Fi standards: Wi-Fi 5 (802.11ac) Wi-Fi standards: 802.11b Wi-Fi standards: Wi-Fi 4 (802.11n) Ethernet interface type: Gigabit Ethernet Wi-Fi standards: 802.11g Top Wi-Fi standard: Wi-Fi 5 (802.11ac) Wi-Fi: Yes Bluetooth version: 4.2 Ethernet LAN: Yes Wi-Fi standards: 802.11a Other features Weight: 1 kg Packaging content Drivers included: Yes Cables included: SATA Processor Compatible processor series: 3rd Generation AMD Ryzen™ 9 Maximum number of SMP processors: 1 Processor socket: Socket AM4 Processor manufacturer: AMD Supported processor sockets: Socket AM4 Compatible processor series: 3rd Generation AMD Ryzen™ 7 Compatible processor series: 3rd Generation AMD Ryzen™ 3 Compatible processor series: 3rd Generation AMD Ryzen 5 Rear panel I/O ports VGA (D-Sub) ports quantity: 1 PS/2 ports quantity: 1 WiFi-AP antenna jack: 2 USB 2.0 ports quantity: 2 DisplayPorts quantity: 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 1 Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: SATA III RAID levels: 1 RAID levels: 0 RAID support: Yes RAID levels: 10 Weight & dimensions Height: 65 mm Width: 244 mm Depth: 244 mm
