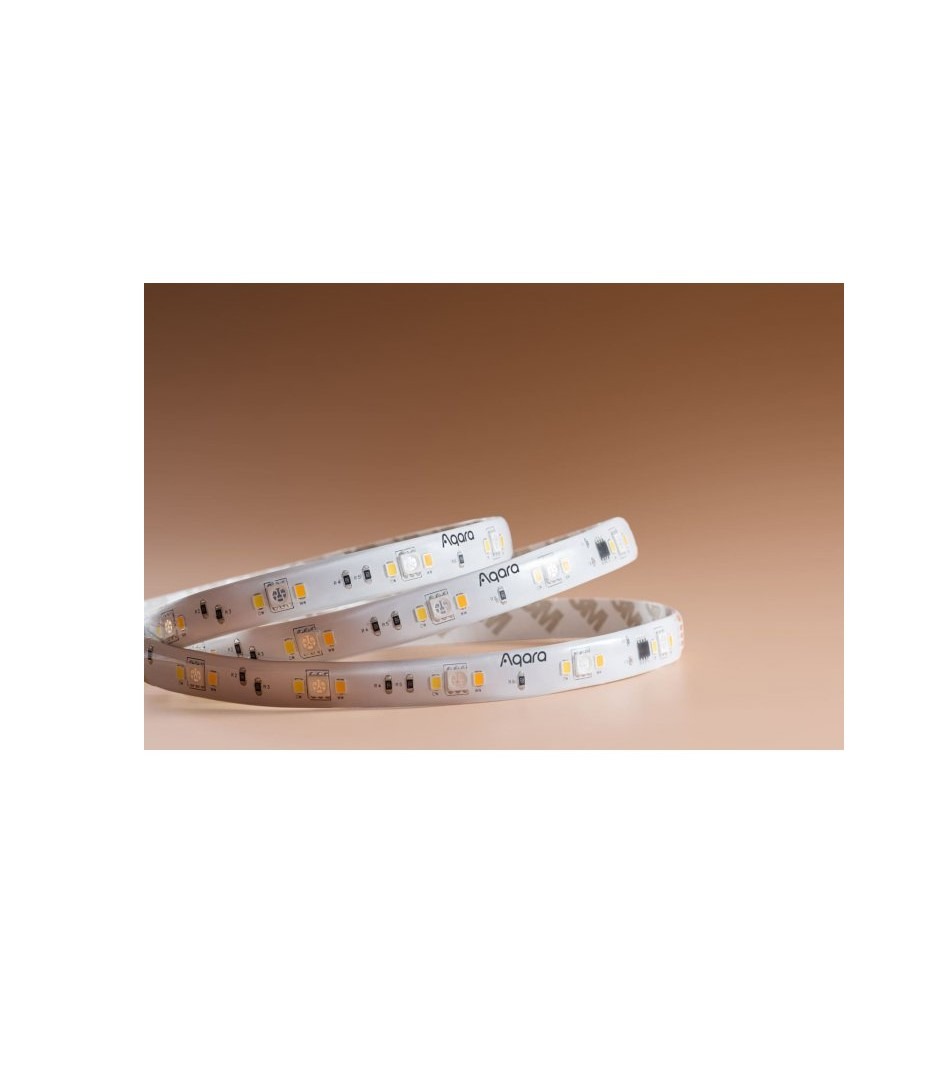

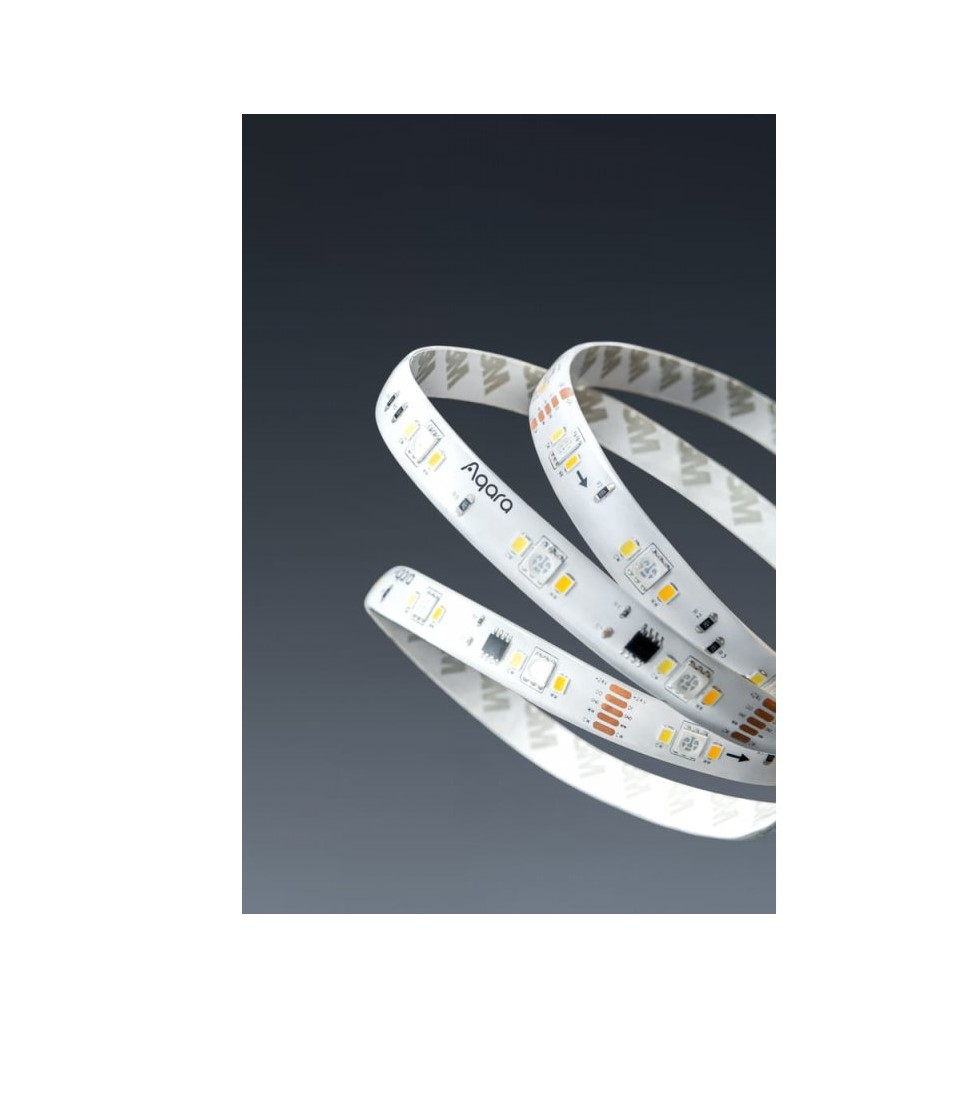

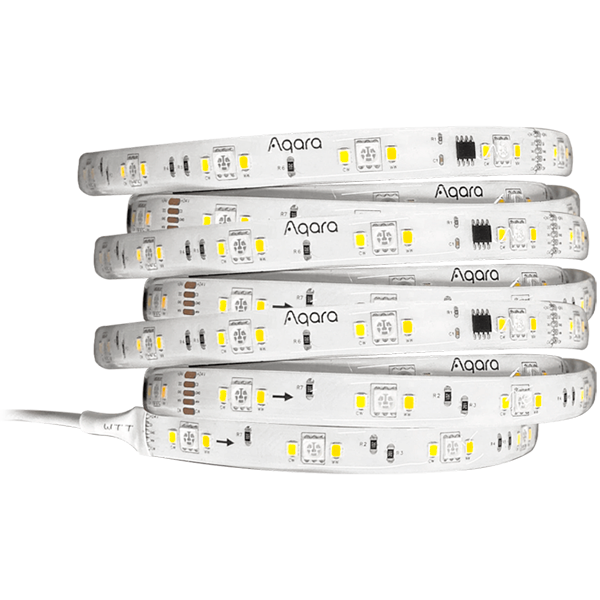

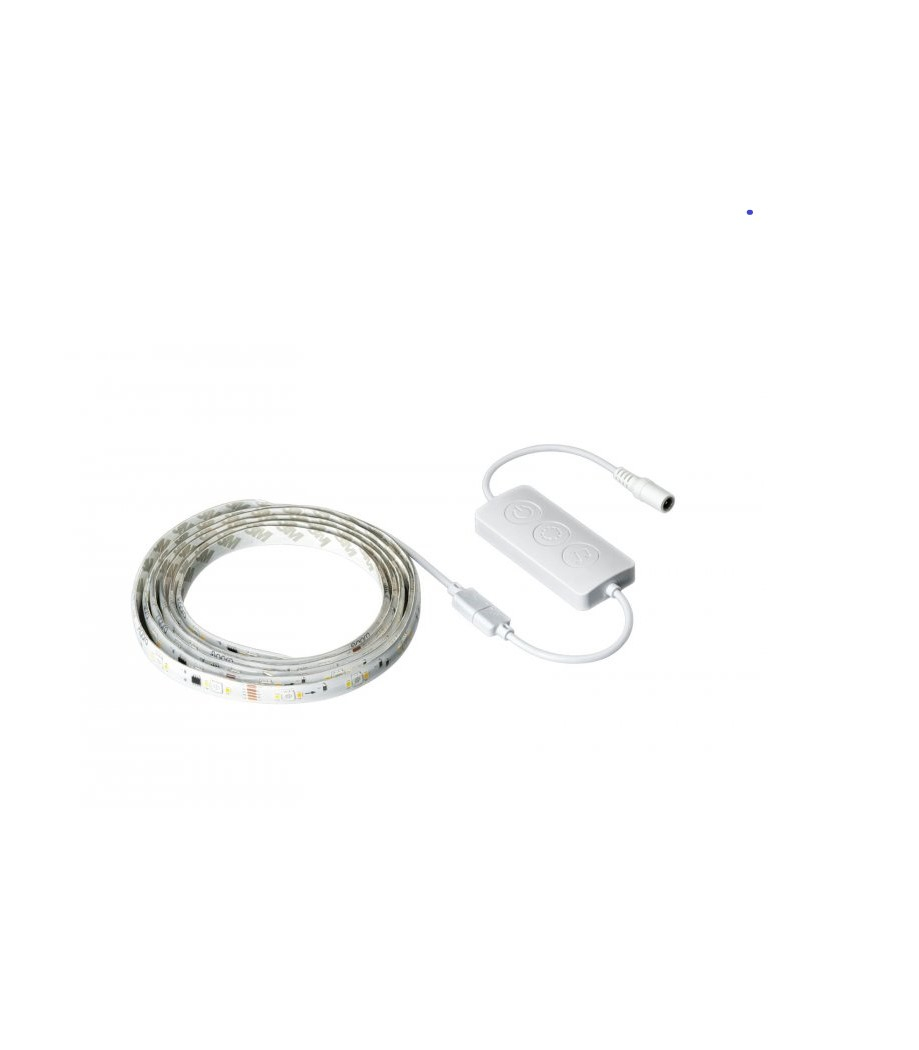

LED traka AQARA T1 RLS-K01D (Zigbee 3.0, RGB+CCT)

Aqara LED Strip T1 is a multi-functional light strip that not only provides high-quality lighting with bright white colors, but also can display multiple colors at the same time and is used in smart home automation with other Aqara devices or other devices.
< br />

•      16 million colors and adjustable whiteness
•      RGBIC with gradient effects
•      Adjustable length
•      Zigbee 3.0 with repeater function
•      Zigbee support issue

Features:

     Compatibility and Important* Support: T1 is compatible with a variety of mainstream ecosystems and offers users multiple ways to customize and future-ready smart homes. Smart home users don't have to worry about different protocols or different platforms when choosing their favorite products. T1 can support Matter through a hub, which will solve most interoperability and connectivity issues.

•          Subject
•          Apple Home
•          Google Home Page
•          Amazon Alexa
•          Yandex
•          Marusja
•          IFTTT

     16 million colors and adjustable whites: almost unlimited color options. You can enjoy a brighter white light with a temperature range from cool to warm, or lose yourself in a world of vibrant hues. In the lamp's colorful ball mode, you can choose your favorite bright color or create a scene that changes colors to achieve the perfect mood.

•          RGB+CCT
•          Adjustable white，Color temperature: 2700K to 6500K
•          RGB: 16M
•          Brightness: 1200/2m

     RGBIC** with gradient effects: each of the 10 strip segments can be configured separately: it supports different colors, dimming, effects or even using one strip for different parts of the room.
         20 cm RGBIC segments
         Addressable with gradient effects
     Home Automation and Scenes: Aqara Home app offers rich operation and setting pages. You can choose between a fixed combination of color cards or a color of your choice. Support for custom scene names, brightness and selection of dynamic effects and dynamic speed.
         Local music sync
         Custom brightness
         Fixed color combination and optional color available
         Support for selection of dynamic effects
         Custom dynamic speed
         Smart home automation
     Adjustable length and easy installation: It is suitable for DIY projects because it can be cut*** (into segments 20 cm / 7.9") each, extendable up to 10 meters and re-attachable. In addition, it is IP44 rated, which means it is protected against dust and can be used hereand outdoors.

•          Supports a maximum width of up to 10 m
•          Cutting option: yes (20 cm)
•          Stick to any smooth surface
•          IP44

     Zigbee 3.0 with repeater function: Compared to competitors, the Wi-Fi Strip T1 does not overload your smart home network: on the contrary, it works as a network repeater and makes your Zigbee network more reliable. In addition, it has much lower idle power consumption, making it more environmentally and budget friendly.

•          Turn off memory
•          repeaters
•          Lower idle power consumption

     T1 has a built-in sound sensor that can follow the rhythm of the music to change the rhythm of the light in time, and you can choose the setting of different color cards and colors.

*Aqara hub compatible with Matter is required.< br />**Please note: RGBIC effects are only available for color (RGB) scenes, not adjustable white.
***When the tape is cut, 5-pin connectors and 5-core wires will be required , to reattach them.
**** Please note: IP44 only applies to the LED strip itself, the hand controller and power supply are not weatherproof and must be installed indoors.
< br />Automation:

1. Status light for alarm and automation system.

IF Camera Hub G3 detects an unknown face when you are not home
THEN the T1 LED strip starts flashing red and the alarm system triggers siren and notify you remotely

The T1 LED strip can indicate that the alarm system is on with a steady red light that flashes strongly in emergency situations, such as an unknown face is detected when you are not at home, or on example indicates that your laundry is finished.

Devices LED Strip T1 + Camera Hub G3 + Smart Plug

2. Circadian Lighting Using Aqara Home Dynamic Scenes

IF Sunrise
THEN trigger a device scene that will slowly adjust the temperature of the strip from warm to cold

If you don't want to use HomeKit adaptive lighting, you can easily configure circadian lighting through Aqara Home dynamic scenes.

T1 + Hub LED strip devices

3. Set a dynamic staircase welcome!

IF a presence is detected near the stairs
THEN turn on the segments of the tape steps one by one

Thanks to addressable LED technology, The strip T1 can be divided into segments and turned one by one, which makes it possible to realize scenes of smart staircase lighting. For example, the light strip will start to illuminate each step of the staircase one by one.

Devices LED strip T1 + Hub + Presence sensor FP2

4. A countdown scene that can be used in automations!

IF the door is open while the warning system is on
THEN the LED strip will start to "count down"
< br />Simply use the Aqara home alarm system delay along with a countdown (for example 10 seconds) and you will know how much time you have left to disarm the alarm system.

*The scene needs to be set separately

Devices LED strip T1 + Hub + Sensors

Technical data:

•      Product name: Aqara LED Strip T1
• Mpart: RLS-K01D
•      Rated power: 5 W/m (30 pcs × 5050 / 0.2 W / RGB, 60 pcs × 2835 0.2 W)
•      Color temperature: RGB + 2700K + 6500K
•      Input power (power supply): 100-240V~50/60Hz 1.2A max.
•      Output power (power supply): 24V DC 1.5 A
•      Input power (LED strip): 24VDC ≤0.25A/m
•      Wireless protocol: Zigbee
•      Strip dimension: 2000 × 12 × 2.8 mm (LED strip)
•      Operating temperature: -10°C ~ 40°C (14°F ~ 104°F)
•      Working humidity: 0 ~ 95% RH, non-condensing
•      Zigbee working frequency: 2405-2475MHz
•      Maximum Zigbee output power: ≤13dBm

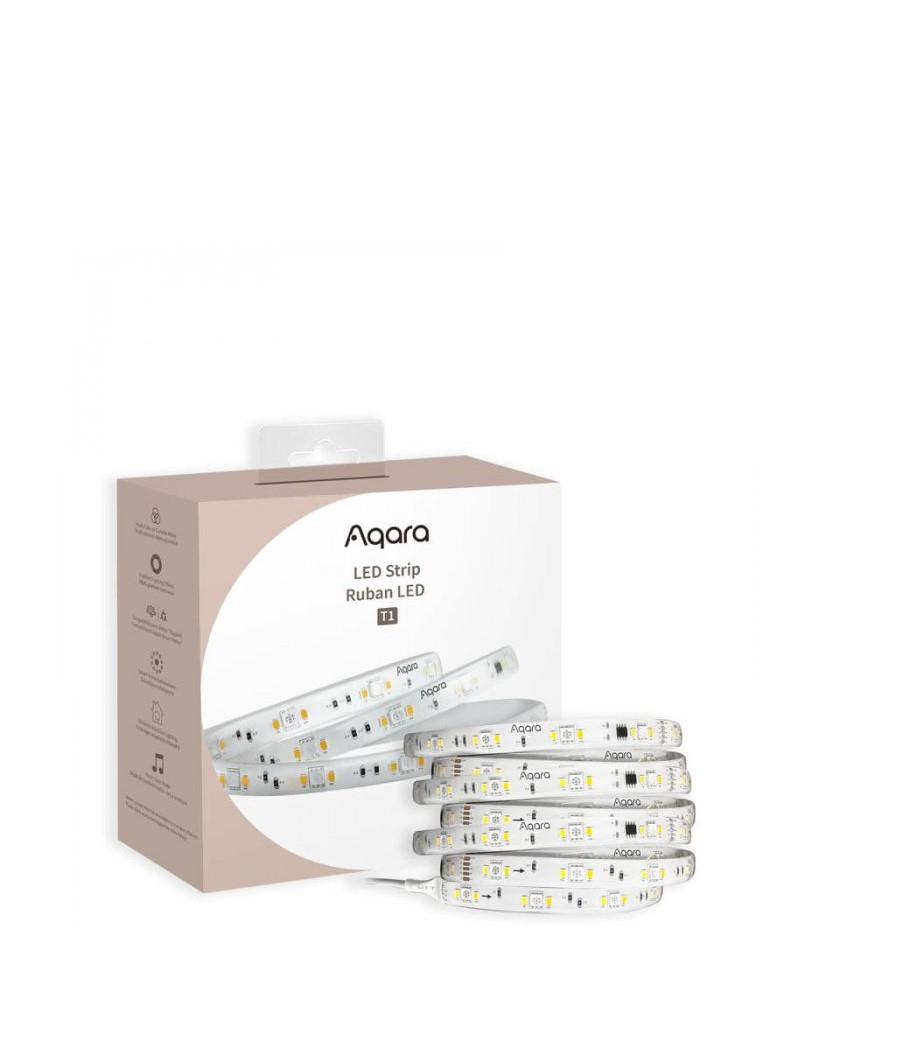

•      What's in the box: Light strip (2m) × 1, Power adapter × 1, Controller × 1, User manual × 1
