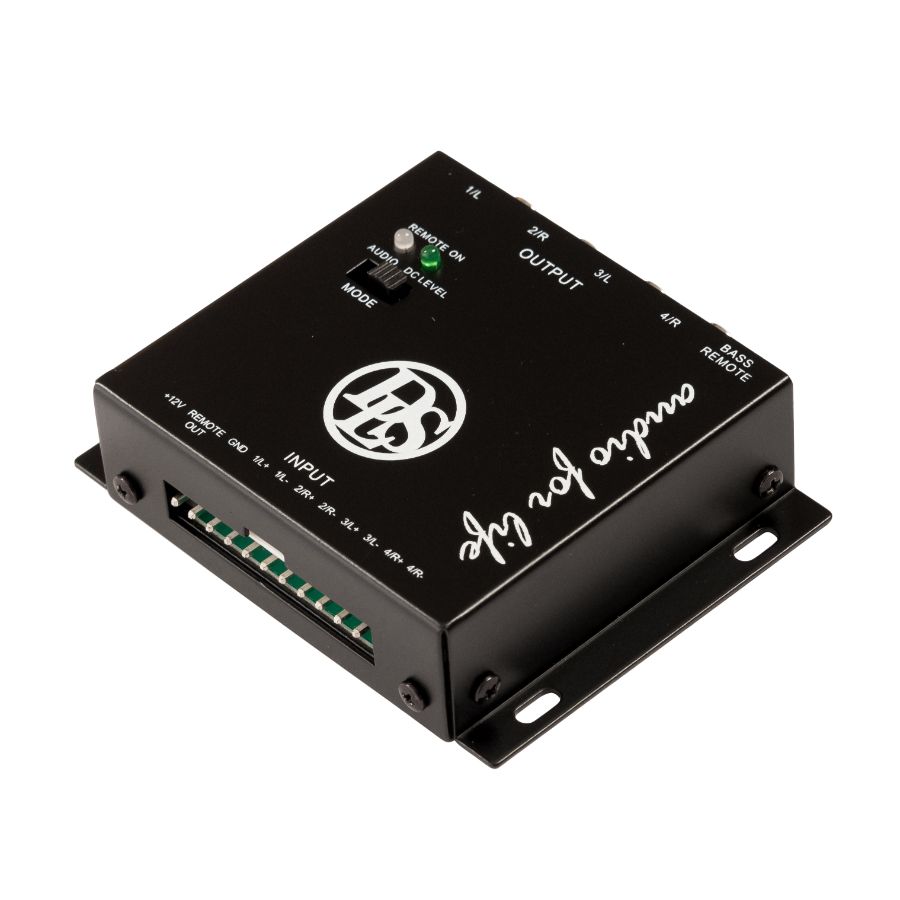

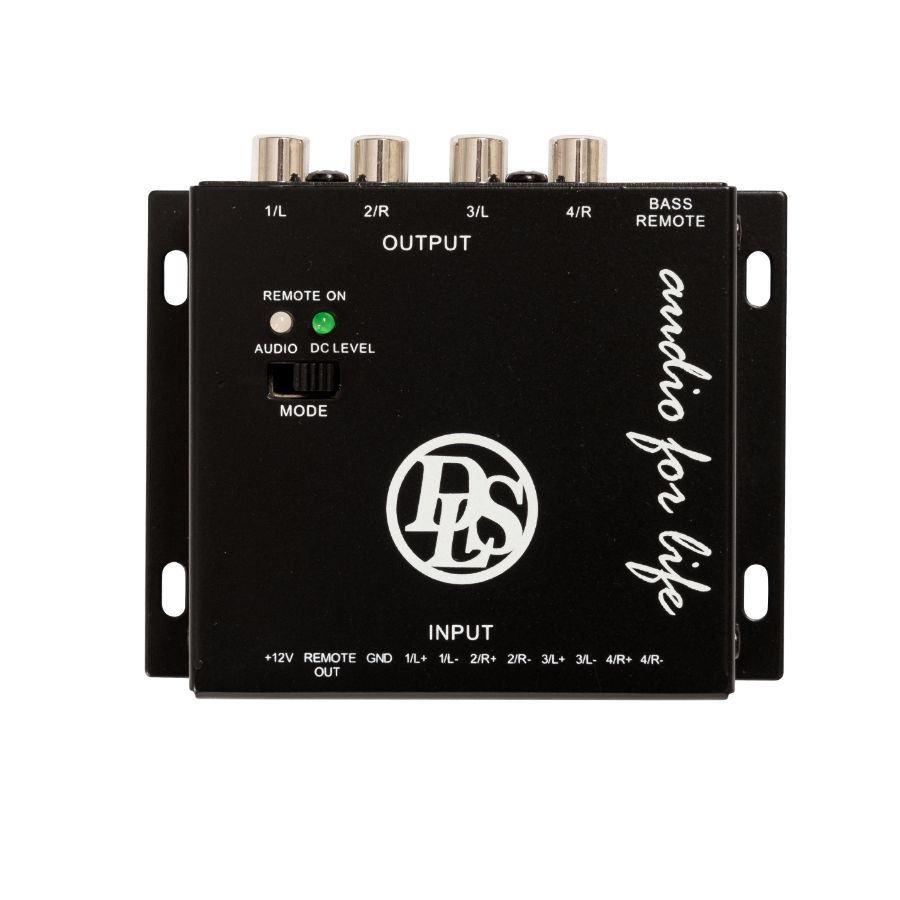

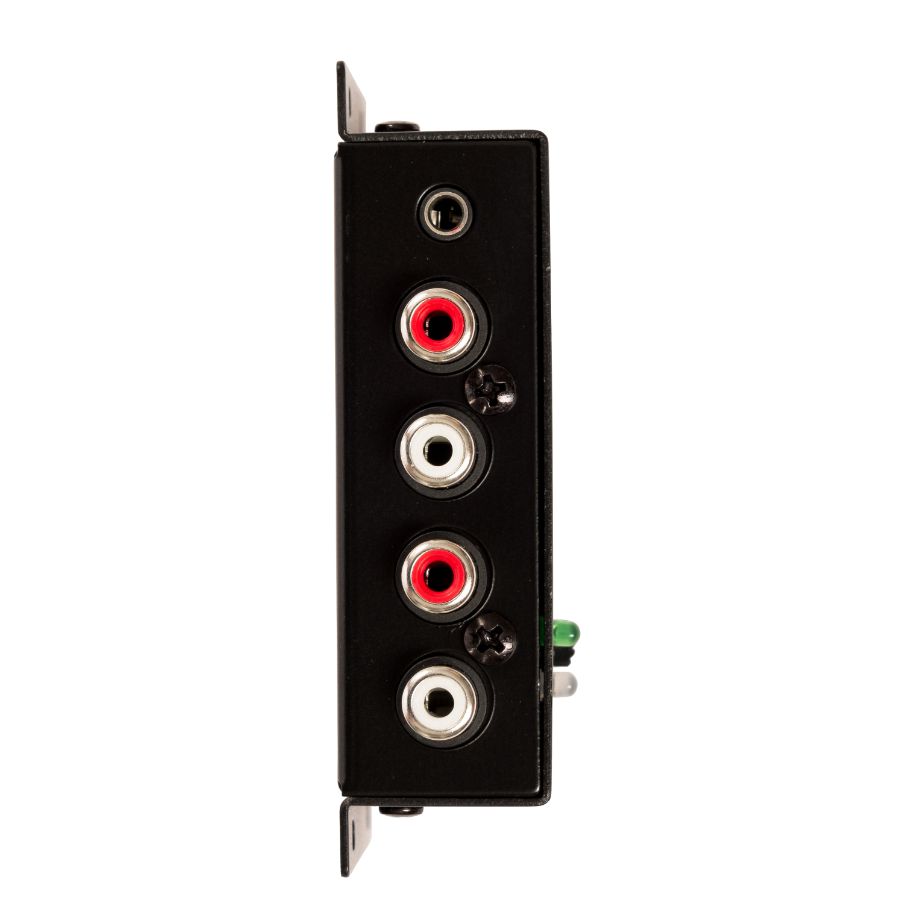

Konverter audio signala DLS HLC4.2"

High level konverter dizajniran za korištenje s glavnim jedinicama u automobilima bez RCA low level izlaza iz glavne jedinice. 4 balansirana kanala. Napajanje 12 V DC. Struja 4 mA, radna 25 mA. Izlazni napon 3 V RMS. Distorzija 0,002% THD. Ulazna impedancija 200 ohma.

Specifikacije:
Number of channels: 4
Power supply: 12 V DC (min 10,8, max 15,6V)
Current draw, no signal: 4 mA
Current draw, operational: Typical 25 mA
Output voltage: 3 V RMS
Distortion: 0,002% THD @ 3V output, 10 kohm load
Clip point: 3,7 V RMS @ 14,4 V power supply
Output impedance: 200 ohms nominal
Input impedance: Ch. 1: 44 ohms, Ch. 2-4: 100 ohms, All channels are fully balanced
Sensing modes: DC level or Audio, both operate on Ch. 1 only.
Remote output: 12 Volts, max 100 ma max, protected against short term short circuit
Indicators: Green= Remote on, Blue = Audio sensing active
Reverse polarity protected.Summing output ch 3 + 4 for subwoofer amp when used with optional EBC
