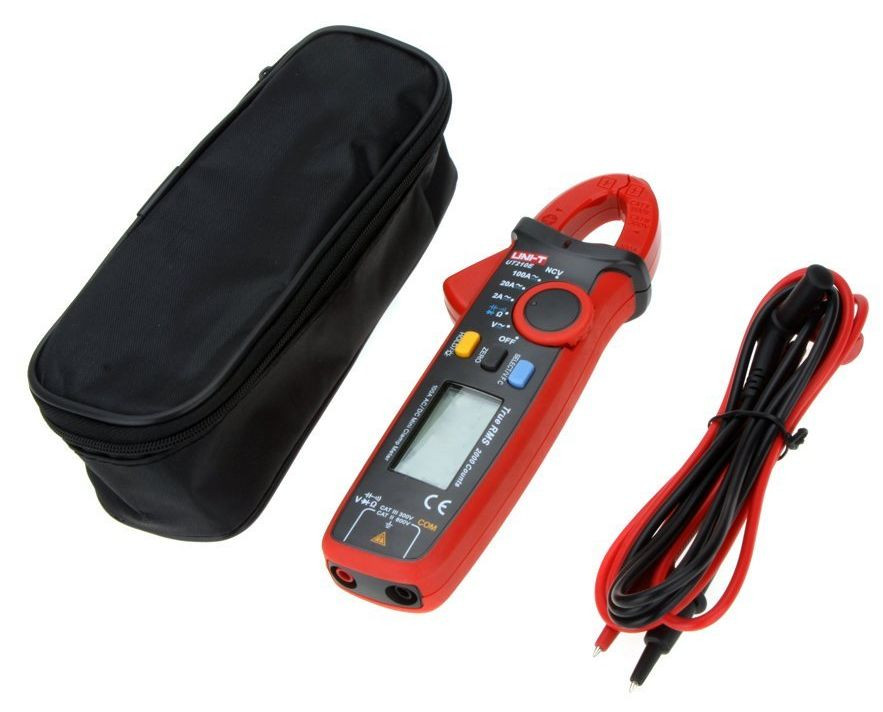

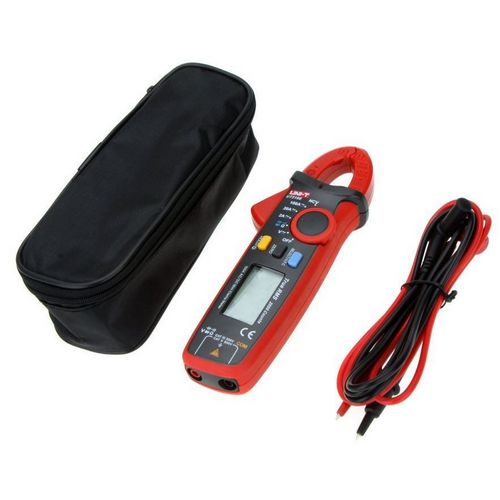

Instrument UT-210 E MINI TRUE RMS STRUJNA KLIJEŠTA 100 A AC/DC, Uni-trend
Instrument UT-210 E MINI TRUE RMS STRUJNA KLIJEŠTA 100 A AC/DC, Uni-trend
77,50 €
-3% dodatnog popusta
= 75,18€ uz plaćanje odjednom (osim Diners i PayPal)
= 75,18€ uz plaćanje odjednom (osim Diners i PayPal)
Dobavljivo
Očekivana isporuka do 13.11.2026.
Točniju potvrdu roka i dostupnost javit ćemo ubrzo po narudžbi.
Informacije o raspoloživosti i vremenu isporuke su indikativne, ažuriraju se u intervalima i podložne su promjenama, te ne čine obvezujuću ponudu. Potvrdu dostupnosti i cijene ćemo vam dostaviti nakon što primimo i obradimo vašu narudžbu. Ugovor o kupnji je sklopljen tek po izdavanju računa.
UT210 series Mini Clamp is provided with the features of high reliability, security, auto range , and small-size.
It can test the small current signal precisely; the chip itself has VFC...
It can test the small current signal precisely; the chip itself has VFC...
Šifra: 101977
EAN: 6935750521052
Više o proizvodu
Jamstvo
24 mjeseci
UT210 series Mini Clamp is provided with the features of high reliability, security, auto range , and small-size.
It can test the small current signal precisely; the chip itself has VFC start-up model, and there is a Specific filter circuit inside,
which can filter the high frequency interference signal and ensure the accuracy of the measurement.
It can be applied in the situation such as variable frequency voltage and current with VFC .
It has the design of full range of overload protection ,along with the unique exterior design,
which makes it a more remarkable new practical electric testing instrument.
UT210 series Mini Clamp is an ideal tool that can be applied to colleges and universities, smelting, telecommunications,
manufacturing, oil,defense, power, foundry, circuit of power equipment inspection, and maintenance and repairs.
UT210E (Main features)
1.Ultra-portable tools for advance electricians
2.100A AC and DC current measurement with 1mA resolution
3.True RMS response for AC current
4.V.F.C function for measuring signal at variable frequency
5.600V AC and DC voltage measurement
6.Resistance, diode, continuity and capacitance functions
7.Non-contact voltage detection with LED indication
8.Display backlight
9.Data HOLD, MAX, MIN, MAX-MIN, and ZERO model
SpecificationsRange Best Accuracy
Model UT210E
AC Current (A)2A/20A/100A ±(2.5 +5)
DC Current (A)2A/20A/100A ±(2 +3)
AC Voltage (V)2V/20V200V/600V ±(1 +3)
DC Voltage (V)200mV/2V/20V200V/600V ±(0.7 +3)
Resistance (?)200?/2K?/20K?/200K?/2M?/20M? ±(1 +2)
Capacitance (F)2nF/20nF/200nF/2µF/20µF/200µF/2mF/20mF ±(4 +5)
Features
Display Count 2000
Auto Range ?
Jaw Capacity 17mm
True RMS ?
DiodeAround 3.0V ?
V.F.C. ?
NCV ?
Data Hold ?
Zero Mode ?
LCD Backlight ?
Auto Power OffAround 15 Minutes ?
Continuity Buzzer ?
Low Battery Indication?2.5V ?
Input Protection ?
Input Impedance for DCV?10M? ?
General Characteristic
PowerAAA 1.5V × 2
LCD Size39.3mm × 26.5 mm
Product ColorRed and Grey
Product Net Weight 170g
Product Size175mm × 60mm × 33.5mm
Standard AccessoriesBatteries, Test Lead
Standard Individual PackingBox, Carrying bag, English Manual
It can test the small current signal precisely; the chip itself has VFC start-up model, and there is a Specific filter circuit inside,
which can filter the high frequency interference signal and ensure the accuracy of the measurement.
It can be applied in the situation such as variable frequency voltage and current with VFC .
It has the design of full range of overload protection ,along with the unique exterior design,
which makes it a more remarkable new practical electric testing instrument.
UT210 series Mini Clamp is an ideal tool that can be applied to colleges and universities, smelting, telecommunications,
manufacturing, oil,defense, power, foundry, circuit of power equipment inspection, and maintenance and repairs.
UT210E (Main features)
1.Ultra-portable tools for advance electricians
2.100A AC and DC current measurement with 1mA resolution
3.True RMS response for AC current
4.V.F.C function for measuring signal at variable frequency
5.600V AC and DC voltage measurement
6.Resistance, diode, continuity and capacitance functions
7.Non-contact voltage detection with LED indication
8.Display backlight
9.Data HOLD, MAX, MIN, MAX-MIN, and ZERO model
