IcyBox IB-2925MS-CU31 Docking and Cloning Station for M.2 NVMe SSDs & 2.5/3.5-inch SATA SSDs/HDDs

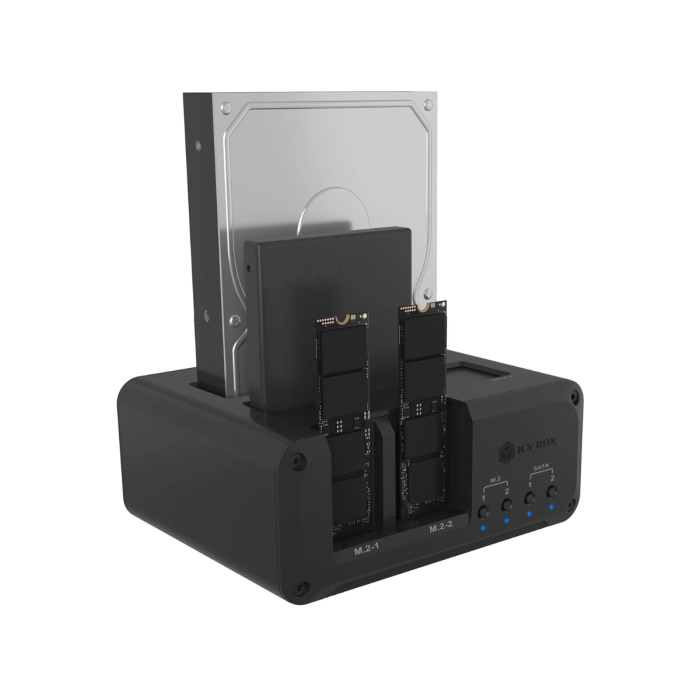

The ICY BOX IB-2925MS-CU31 Club Case 2925 is a universal 4-bay external storage docking station that allows for the simultaneous use of two M.2 SSDs and two 2.5"/3.5" SATA SSDs or HDDs in a single enclosure. It combines modern NVMe drives with classic SATA drives, offering a practical solution for users who need a central location for various types of storage devices.

Each drive has its own on/off switch, so you can manage individual drives independently, turn them off when you don’t need them, or replace them without shutting down the entire system. LED indicators make it easy to monitor the operation of individual drives.

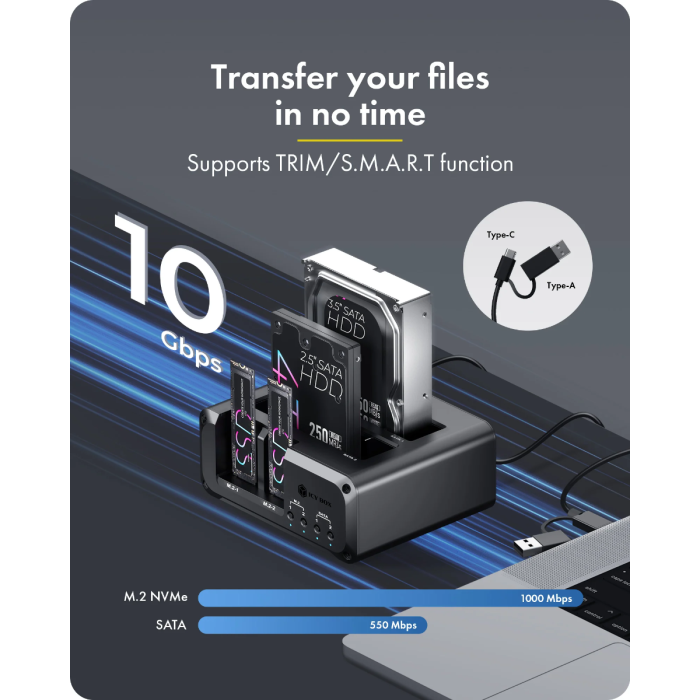

The USB-C 3.2 Gen 2 connection enables data transfer speeds of up to 10 Gb/s, making it suitable for backups, working with large files, video content, and project folders. The enclosure supports Plug & Play and UASP for more efficient data transfer.

The aluminum enclosure ensures a sturdy construction, while passive cooling helps dissipate heat without the added noise of a fan. A 12 V / 4 A power supply with 48 W of power is included to power all installed drives.

Specifications:
4-bay external storage enclosure
Supports simultaneous use of 2× M.2 SSDs and 2× 2.5"/3.5" SATA SSDs/HDDs
Compatible with M.2 NVMe, M.2 SATA, and SATA drives

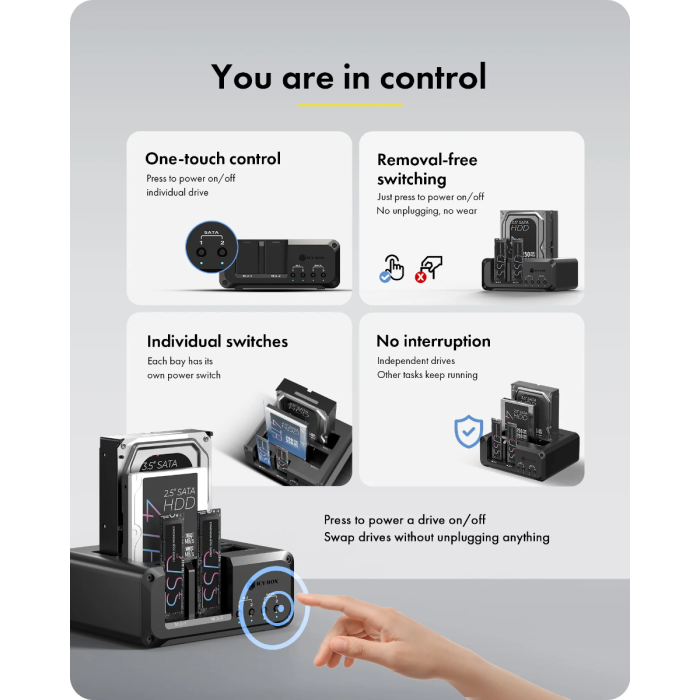

Separate on/off switches for each drive
LED indicators to display operating status
Hot-swap support for easy drive replacement
Plug & Play operation
UASP support for optimized data transfer
Non-slip feet for stable placement

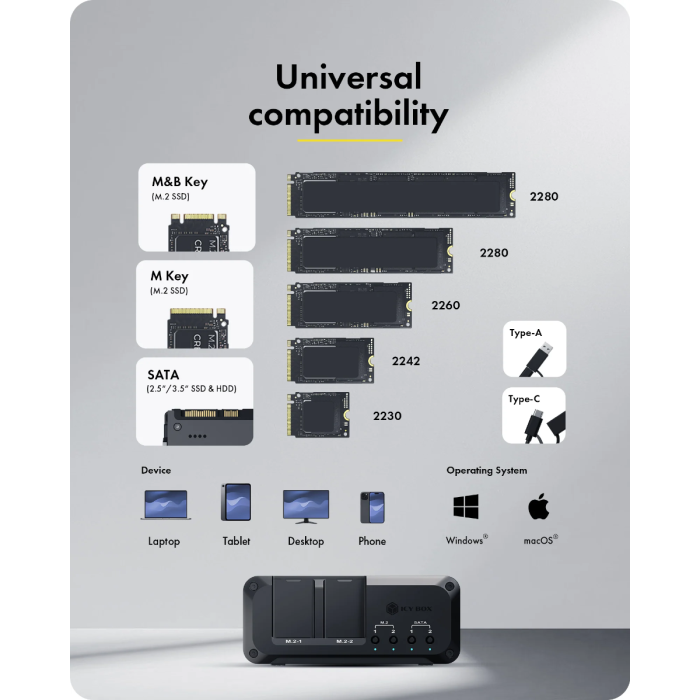

Drive support
M.2 NVMe PCIe and M.2 SATA:
Formats: 2230, 2242, 2260, 2280, 22110
Supported keys: M-Key, B+M-Key
Maximum capacity: up to 4 TB

2.5"/3.5" SSD/HDD:
SATA interface
Maximum capacity: up to 20 TB per drive

Interface:
USB 3.2 Gen 2 Type-C
Data transfer speed:
up to 10 Gb/s
Cable:
USB-C to USB-C/A, 40 cm long

Individual power management for each drive
Ability to power off individual drives without interrupting the operation of the others
Easy drive replacement without shutting down the entire system

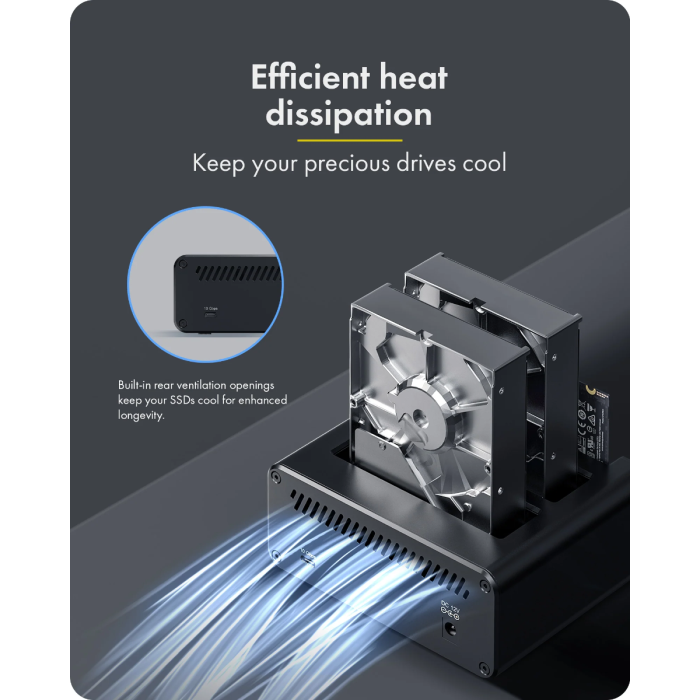

Passive cooling
Aluminum housing for efficient heat dissipation
Fanless operation

External power supply:
12 V / 4 A (48 W)

Operating systems:
Windows
macOS

Requirements:
USB 3.2 Gen 2 Type-C or USB-A port

Chipset:
VL822
JMS581DL ×2
JMS580 ×2

RAID: not supported
Material: aluminum
Color: black
Dimensions: 142 × 57 × 115 mm
Net weight: 450 g

Package Contents
ICY BOX IB-2925MS-CU31 Club Case 2925
USB-C to USB-C/A cable (40 cm)
12 V / 4 A (48 W) power adapter
User Manual
