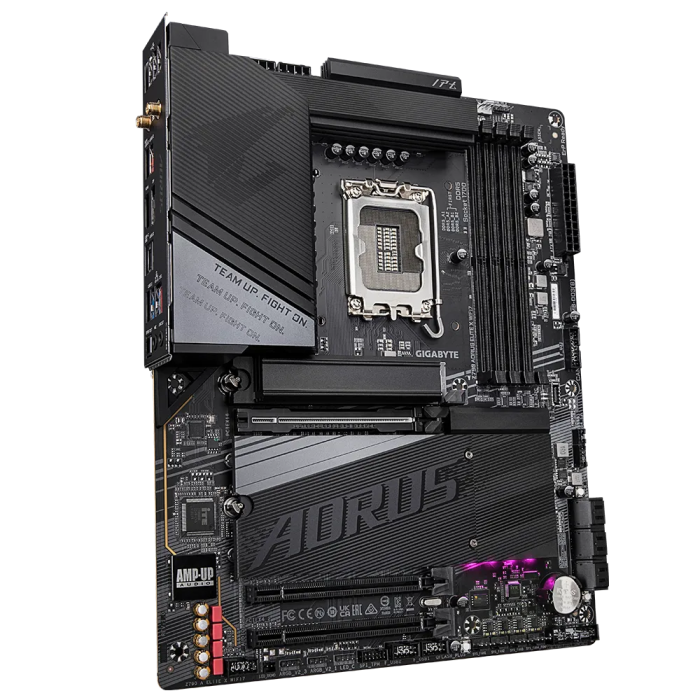

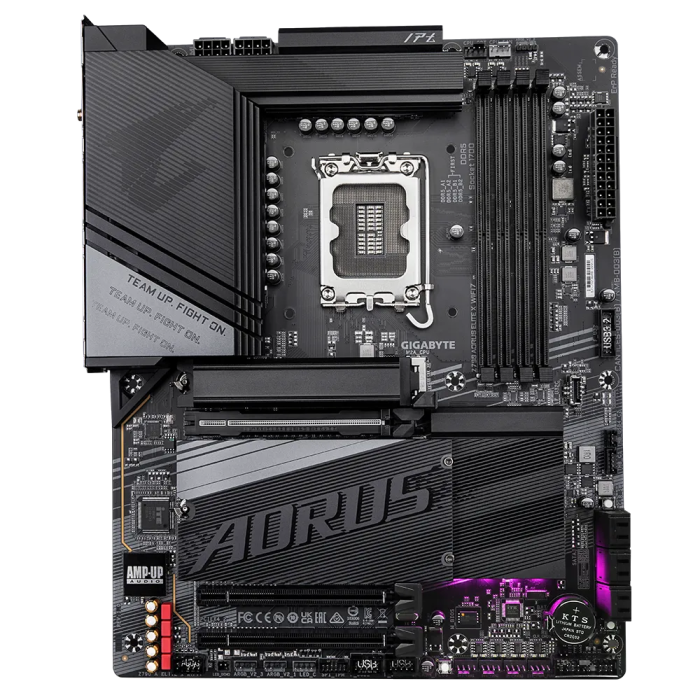

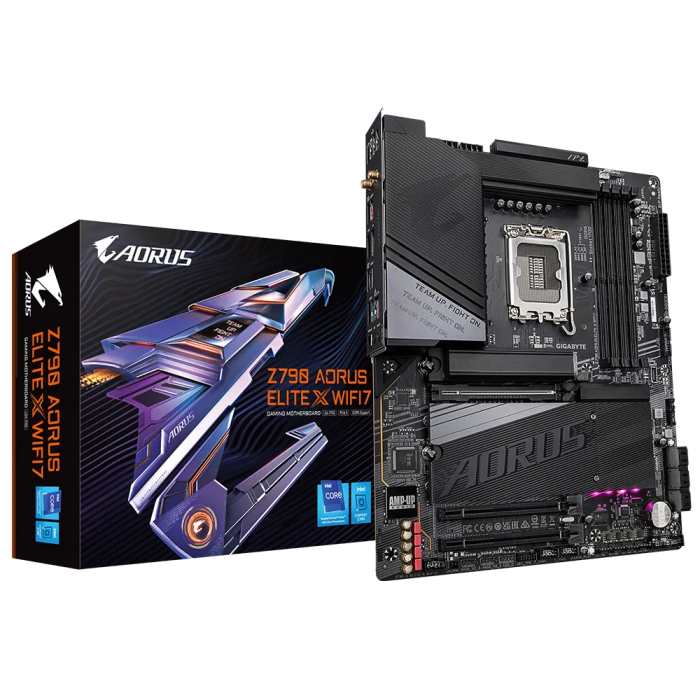

GIGABYTE Z790 AORUS ELITE X WIFI7, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, WIFI 7, LGA1700 ATX

SOCKET: INTEL LGA1700
FOR PROCESSORS:  Intel 12/13/14thGeneration Core™ i7/i5/i3/ Pentium/Celeron
FORMAT: ATX Form Factor 30.5 x 24.4 cm
CONNECTION CHIP: Intel Z790 Express
MEMORY:
4 x DDR5 (8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000MHz)< /span> up to a total of 192GB capacity, dual channel and Extreme Memory Profile (XMP) support, Support for non-ECC /ECC Un-buffered DIMM(operate in non -ECC mode), Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
GRAPHICS: via CPU
RAID: YES (0,1,5,10) support for SATA/< span>NVMe storage devices
EXPANSION SLOTS:
1 x PCIe 5.0/4.0/3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (x4 mode)
NETWORK CARD: Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) + Wi-Fi 7 + BLUETOOTH 5.3
MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
Intel® Wi-Fi 7 BE200 (PCB rev. 1.1)< br />- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
Qualcomm® Wi-Fi 7 QCNCM865 (PCB rev. 1.2)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
SOUND CARD strong>: Realtek ALC1220-VB High Definition Audio Audio CODEC
INTERNAL CONNECTIONS:
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC- TPM2.0 SPI 2.0/
GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper

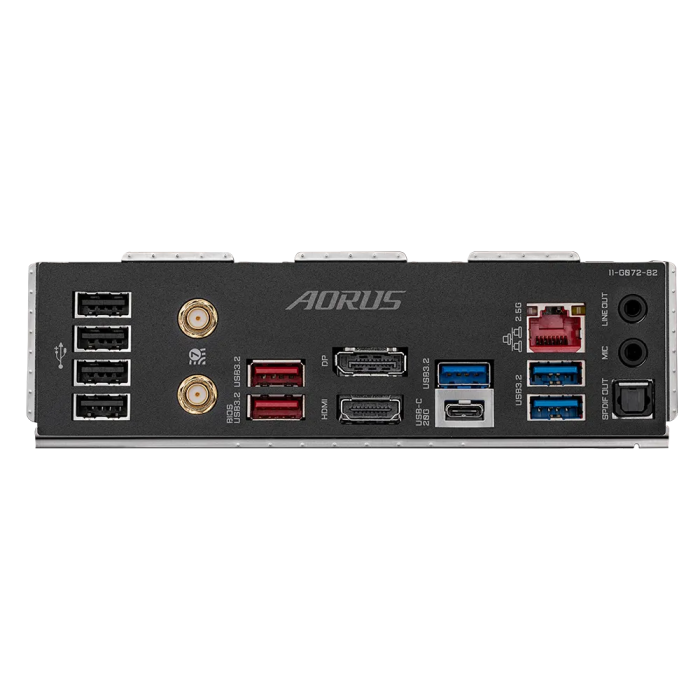

EXTERNAL CONNECTIONS:
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R) jk
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
< strong>ADDITIONAL:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center ( GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Manufacturer's website: https://www.gigabyte.com/Motherboard/Z790-AORUS -ELITE-X-WIFI7#kf
