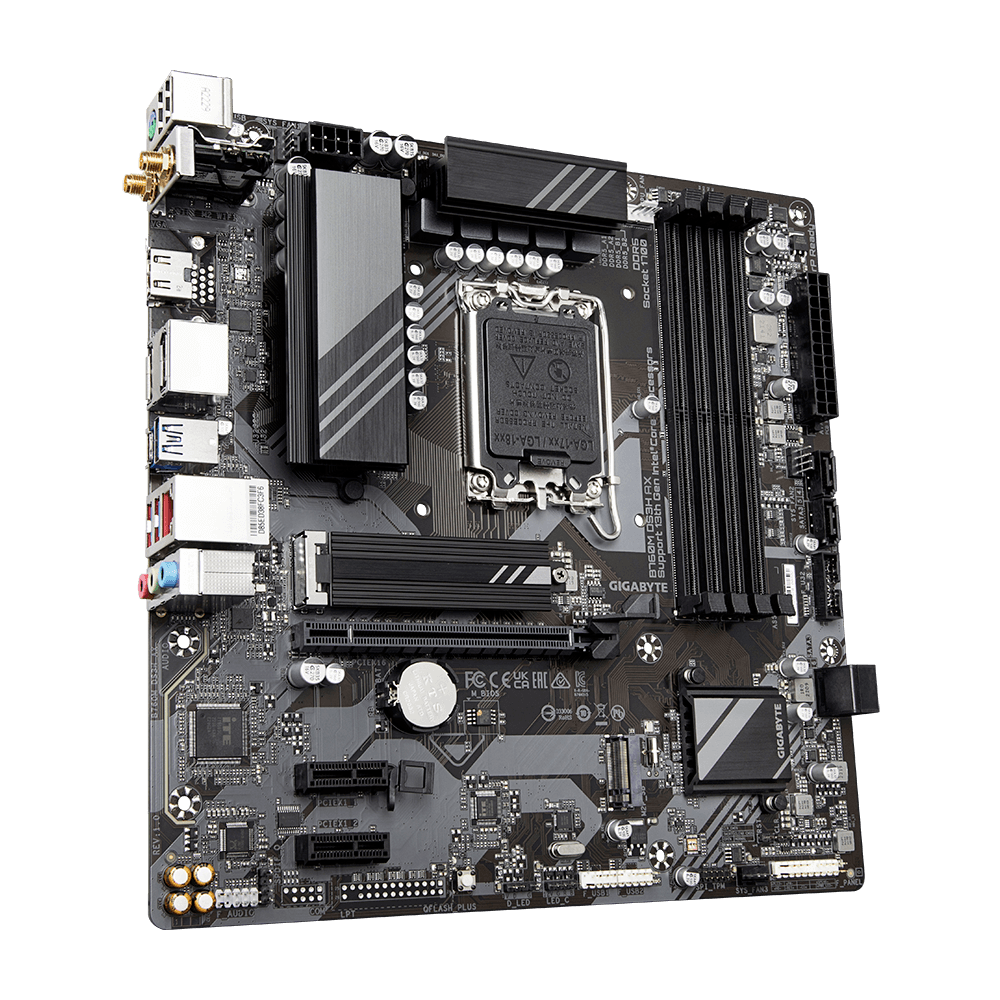

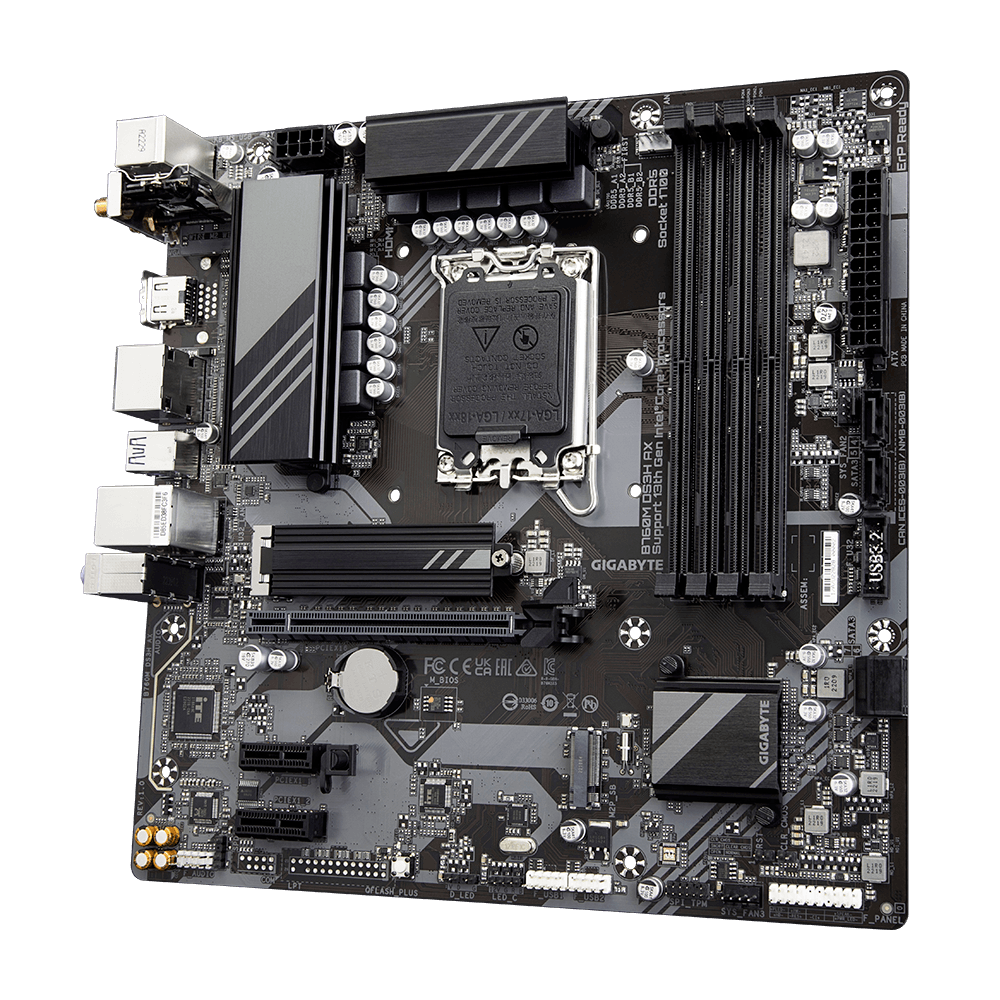

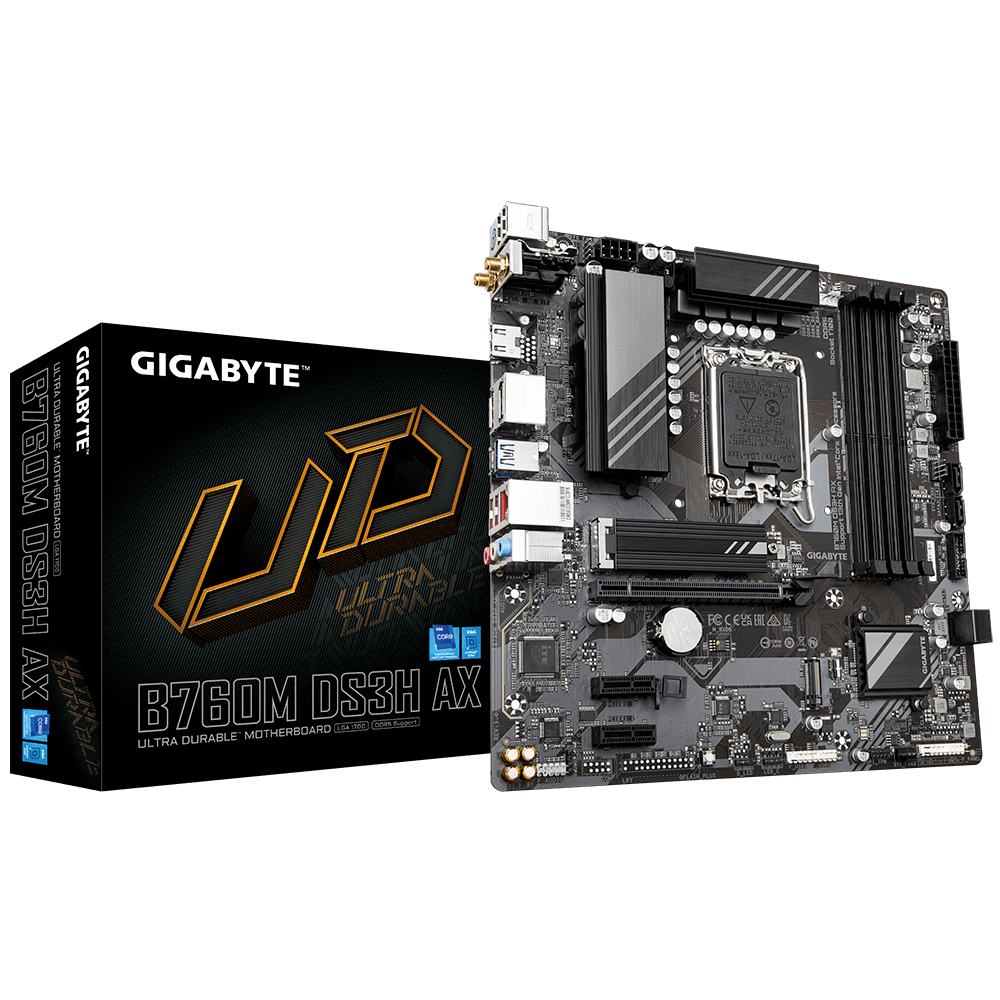

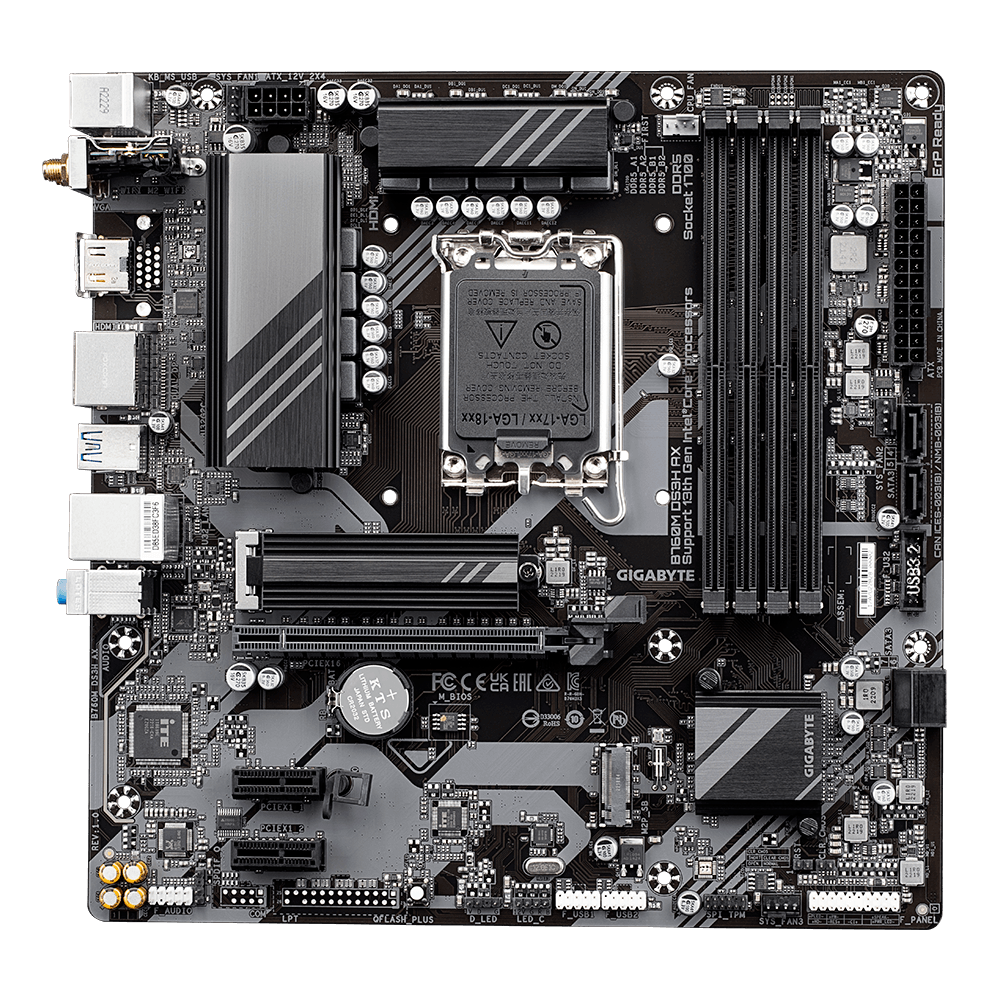

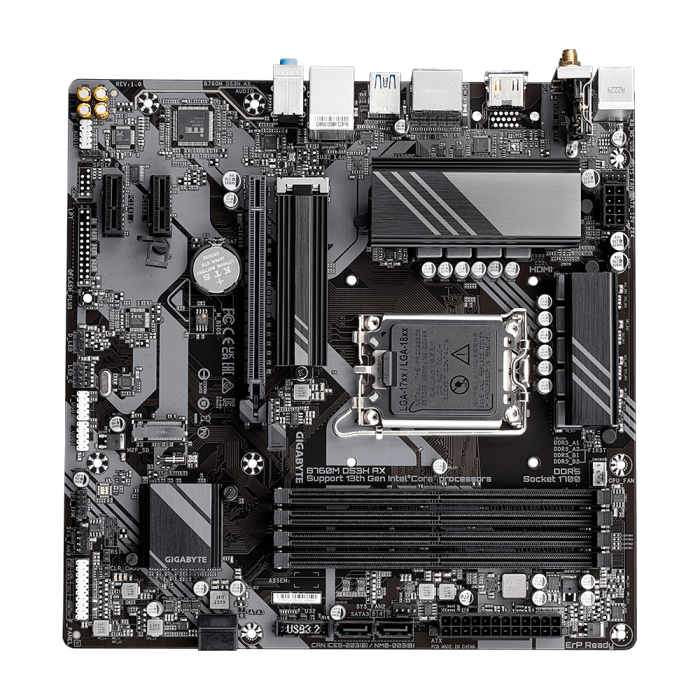

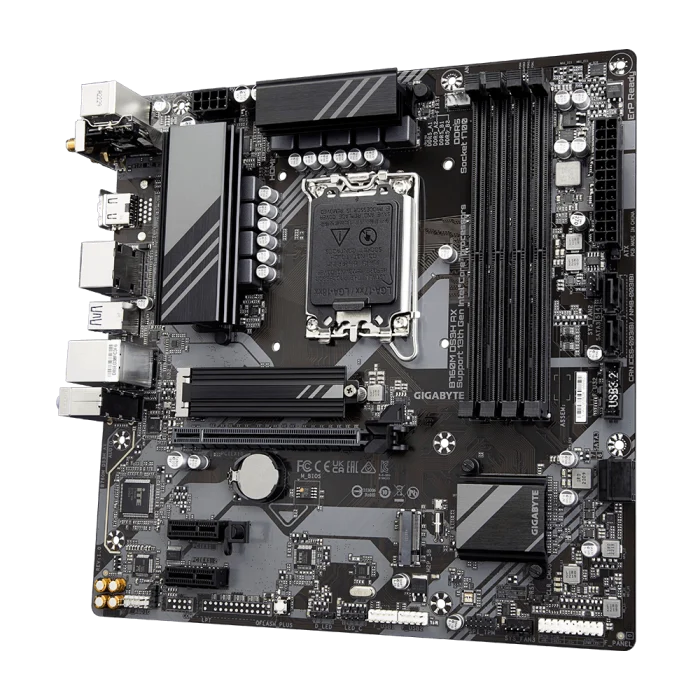

GIGABYTE B760M DS3H AX, DDR5, SATA3, USB3.2Gen2, DP, WiFi 6E, LGA1700 mATX

BASE: INTEL LGA 1700
FOR PROCESSORS: 14/th13th/12th Generation Core i7/i5/ i3/Pentium/Celeron
FORMAT: mATX format 24.4 cm x 24.4 cm
CONNECTION CHIP: INTEL B760
< strong>MEMORY:
4 x DDR5 DIMM ECC/non-ECC 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600 (O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000MHz) up to total 192GB capacity, dual channel and XMP support GRAPHICS: YES - via CPU RAID: RAID 0 , RAID 1, RAID 5, and RAID 10
EXPANSION SLOTS:
1 x PCI Express 4.0/3.0< /span> x16
2 x PCI Express 3.0 x1
NETWORK CARD: Realtek 2.5GbE LAN chip +
SOUND CARD: Realtek codec High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTIONS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2. 0 SPI 2.0 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

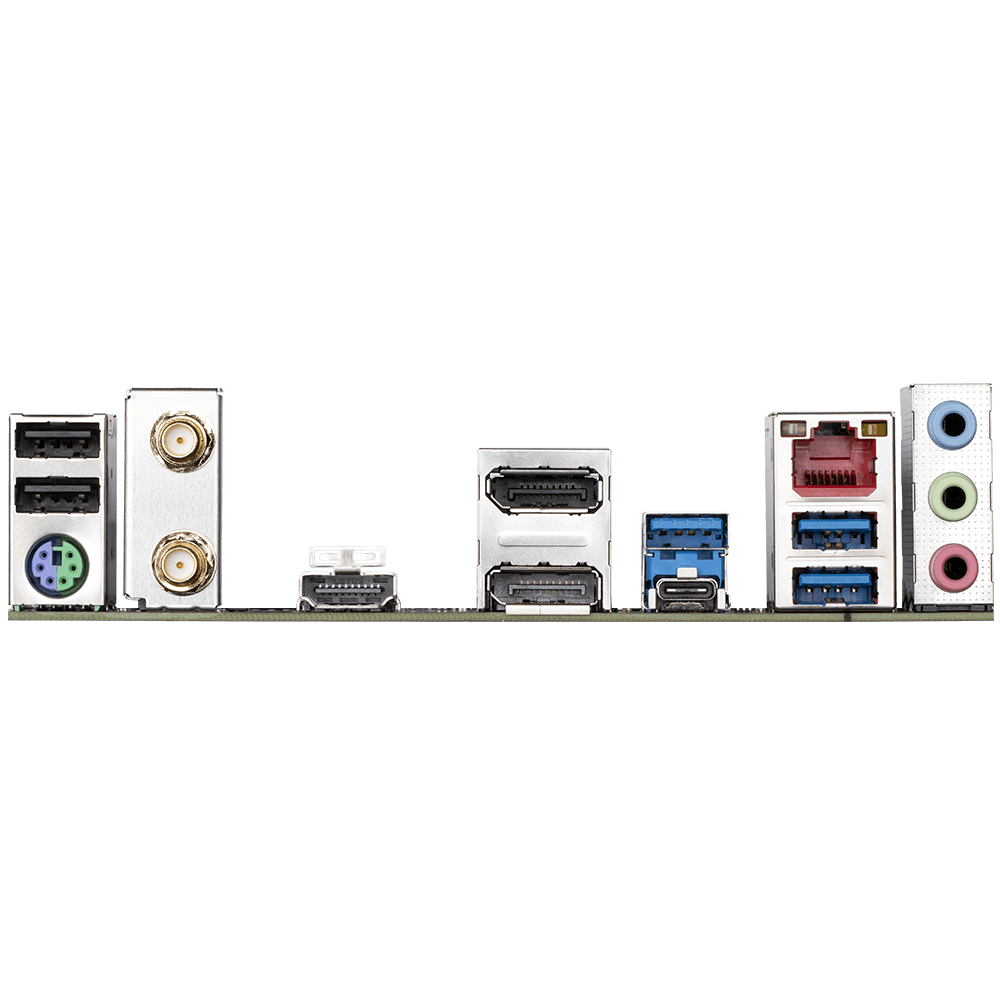

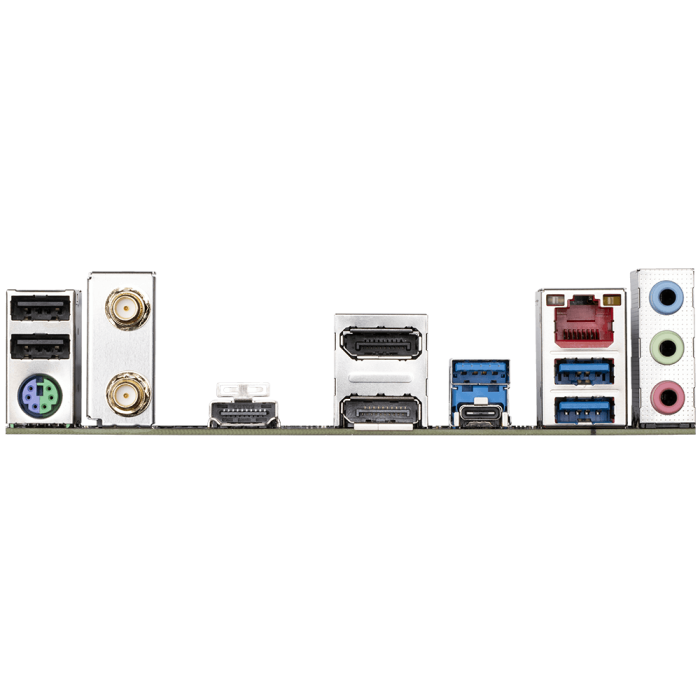

< strong>EXTERNAL CONNECTIONS:
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
EXTRA:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Manufacturer's website: https://www.gigabyte.com/si/Motherboard/B760M-DS3H-AX-rev-1x#kf
