EcoFlow PowerStream Microinverter 800W Microinverter for Balcony Solar Power Systems

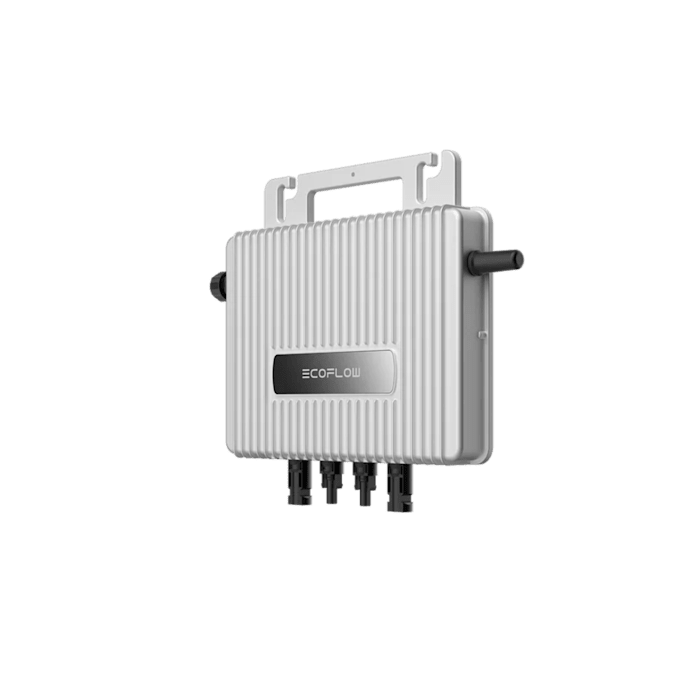

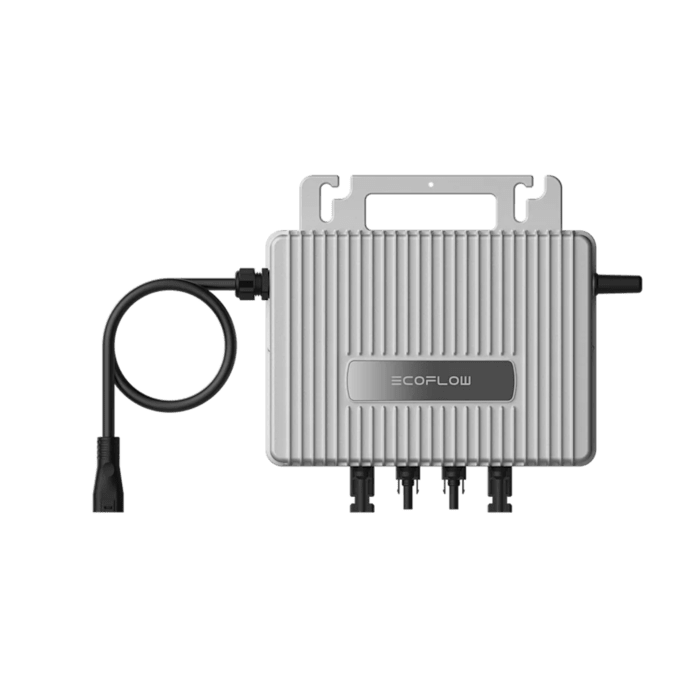

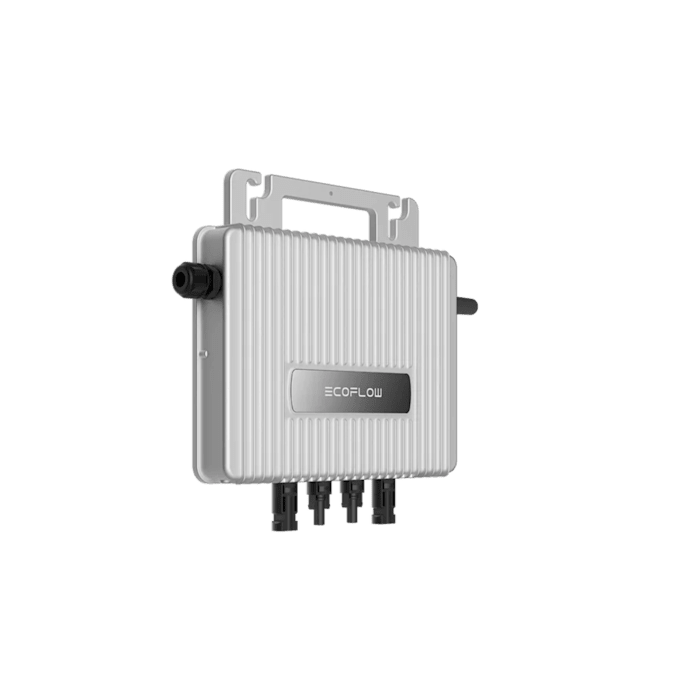

The EcoFlow STREAM 800 W CentralMicroinverter is a key component of the EcoFlow STREAM Plug & Play solar system, designed to efficiently utilize the energy generated by solar panels. The microinverter converts the direct current (DC) from the solar panels into alternating current (AC), which can be used to power devices in the home or, depending on the system configuration and local regulations, fed into the utility grid.

The device features two independent MPPT channels, each supporting up to 600 W of input power. The MPPT range of 16 to 60 V enables optimal utilization of the solar panels under various lighting conditions. The system starts operating at an input voltage as low as 20 V, while EcoFlow states that the STREAM system can begin generating power even with very low solar input.

The rated output power is 800 W at a grid voltage of 230 V. Integrated Wi-Fi and Bluetooth connectivity allow connection to the EcoFlow app, where users can monitor energy production and manage compatible STREAM systems.

The microinverter uses passive cooling via natural convection, without a fan, which ensures quiet operation and reduces the need for maintenance. The IP67-rated housing protects the device from dust and water, and the operating temperature range of -40 °C to 65 °C ensures reliable operation in various weather conditions.

Technical Specifications
