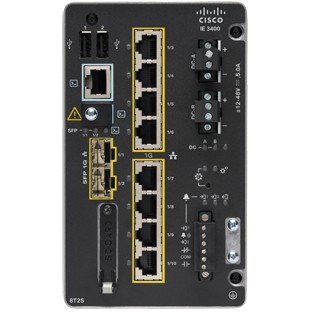

Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Modular, NE

Operational conditions
Non-operating altitude: 0 - 4572 m
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 85 °C
Operating temperature (T-T): -40 - 70 °C
Performance
Internal memory: 4000 MB
Flash memory: 1500 MB
Mean time between failures (MTBF): 549808 h
Management features
ARP inspection: Yes
Switch layer: L2
System event log: Yes
Switch type: Managed
Quality of Service (QoS) support: Yes
Multicast features
Multicast support: Yes
Data transmission
MAC address table: 8000 entries
Number of queues: 8
Design
Certification: FCC 47 CFR Part 15 subpart B Class A, EN 55032/CISPR 32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 Class A, ICES 003 Class A, CNS 13438 Class A, KN 32 Class A, EN 300 386, CISPR 24, EN 55024, KN 35, EN 61000-4-2 Electro Static Discharge (air – 15kV, contact – 8kV), EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP), EN 61000-4-4 Electromagnetic Fast Transients (4kV), EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP), EN 61000-4-6 Conducted RF (10Vrms UTP), EN 61000-4-8 Power Frequency Magne
DIN rail mounting: Yes
International Protection (IP) code: IP20
Product colour: Black
Rack mounting: Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Console port: Mini USB-B/RS-232
Fiber ports quantity: 2
Compatible memory cards: SD
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fiber optic connector: SFP
USB 2.0 ports quantity: 3
Power
DC input voltage: 9.6 - 60 V
Input current: 6.3 A
Power consumption (typical): 36 W
Network
Spanning tree protocol: Yes
Number of VLANs: 256
Copper ethernet cabling technology: 100BASE-TX
Copper ethernet cabling technology: 10BASE-T
VLAN support: Yes
Link aggregation: Yes
Copper ethernet cabling technology: 1000BASE-T
Broadcast storm control: Yes
10G support: No
Networking standards: IEEE 802.11n
Networking standards: IEEE 802.1D
Networking standards: IEEE 802.3u
Networking standards: IEEE 802.11ac
Networking standards: IEEE 802.3ah
Networking standards: IEEE 1588
Networking standards: IEEE 802.3ad
Networking standards: IEEE 802.1s
Networking standards: IEEE 802.1ab
Networking standards: IEEE 802.3
Networking standards: IEEE 802.3ab
Networking standards: IEEE 802.1p
Networking standards: IEEE 802.1w
Networking standards: IEEE 802.1Q
Networking standards: IEEE 802.3x
Logistics data
Harmonized System (HS) code: 85176990
Security
IGMP snooping: Yes
Access Control List (ACL): Yes
Security algorithms: SSH
Security algorithms: SNMPv3
MAC address filtering: Yes
Security algorithms: 802.1x RADIUS
Access Control List (ACL) IPv4 entries: 2000
IGMP entries: 1000
BPDU filtering/protection: Yes
DHCP features: DHCP snooping
Access Control List (ACL) IPv6 entries: 512
Authentication: Guest VLAN
Weight & dimensions
Weight: 1.72 kg
Depth: 134.6 mm
Width: 152.4 mm
Height: 91.4 mm
