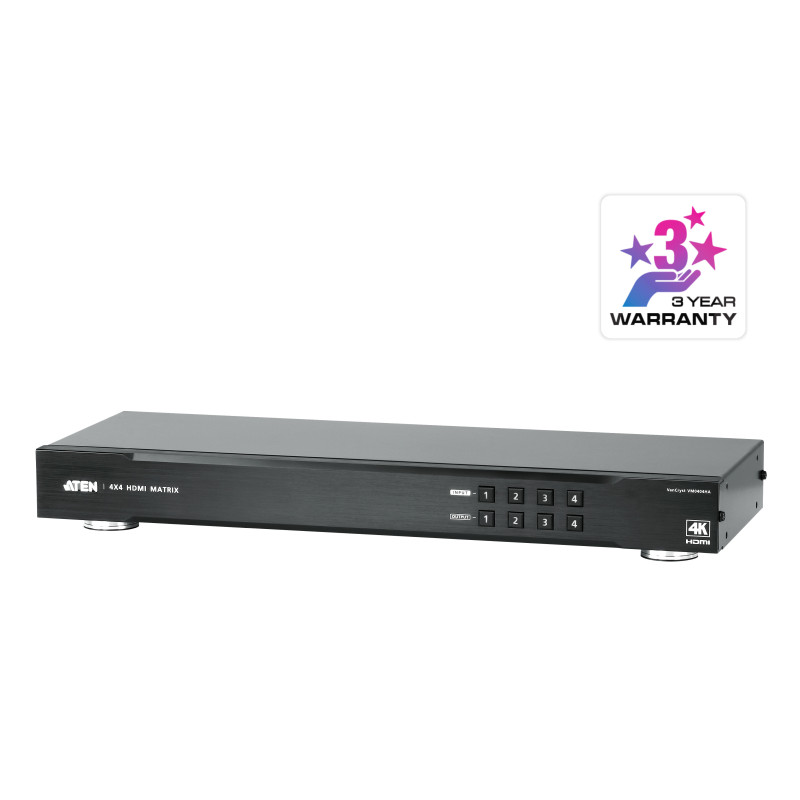

Aten 4x4 4K HDMI Matrix Switch

- The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching, the VM0404HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more. - The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons, IR remote and RS-232 control, ensuring optimum viewing and control of high-definition video. Specifications Video Input - Interfaces: 4 x HDMI Type A Female (Black) - Impedance: 100 - Max. Distance: 5 m Video Output - Interfaces: 4 x HDMI Type A Female (Black) - Impedance: 100 - Max. Distance: 15 m Video - Max. Data Rate: 10.2 Gbps (3.4 Gbps Per Lane) - Max. Pixel Clock: 340 MHz - Compliance • HDMI (3D, 4K, Deep Color) • HDCP 1.4 Compatible • Consumer Electronics Control (CEC) - Max. Resolution • Up to 4096 x 2160 / 3840 x 2160 60Hz (4:2:0); • 4096 x 2160 / 3840 x 2160 30Hz (4:4:4) - Max. DistanceUp to 15 m EDID Settings - EDID Mode: Default / Port1 / Remix Control - USB • 1 x Micro USB • F/W upgrade - RS-232 • Connector: 1 x DB-9 Female (Black) • Baud rate and protocol: • Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No - IR: 1 x Mini Stereo Jack Female (Black) - Carton Lot: 3 pcs Physical Properties - HousingMetal - Weight: 2.02 kg ( 4.45 lb ) - Dimensions (L x W x H): 43.72 x 16.29 x 4.40 cm (17.21 x 6.41 x 1.73 in.) Connectors - Power: 1 x DC Jack (Black) Power Consumption - DC5V:9.62W:45BTU Environmental - Operating Temperature: 0-40°C - Storage Temperature: -20 - 60°C - Humidity: 0 - 80% RH, Non-Condensing *Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Package Contents • 1x VM0404HA 4x4 4K HDMI Matrix Switch • 1x 0AD6-1005-26EG Power Adapter • 1x 2XRT-0106G IR Remote Control • 1x 2XRT-0003G IR Receiver • 1x Mounting Kit • 1x User Instructions
