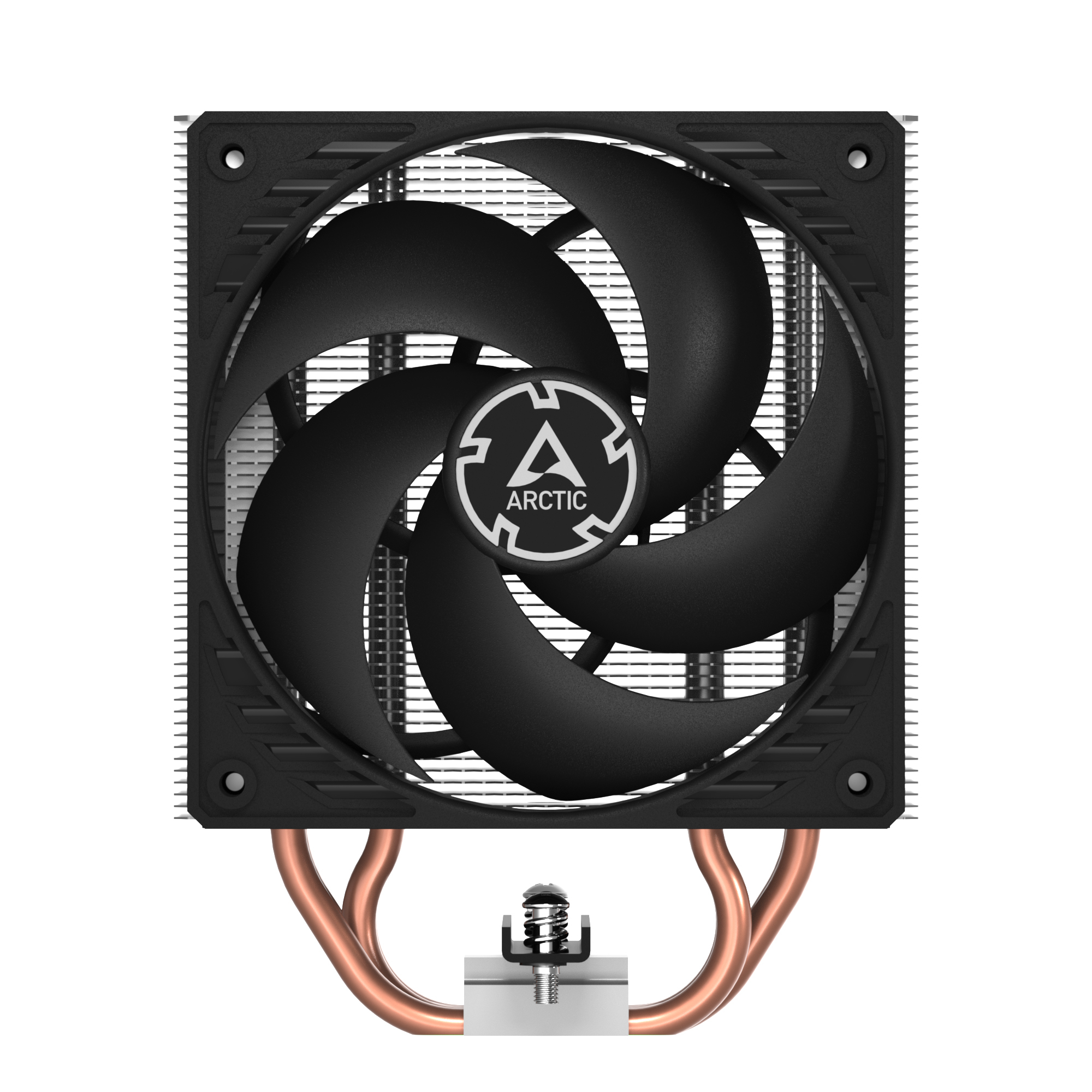

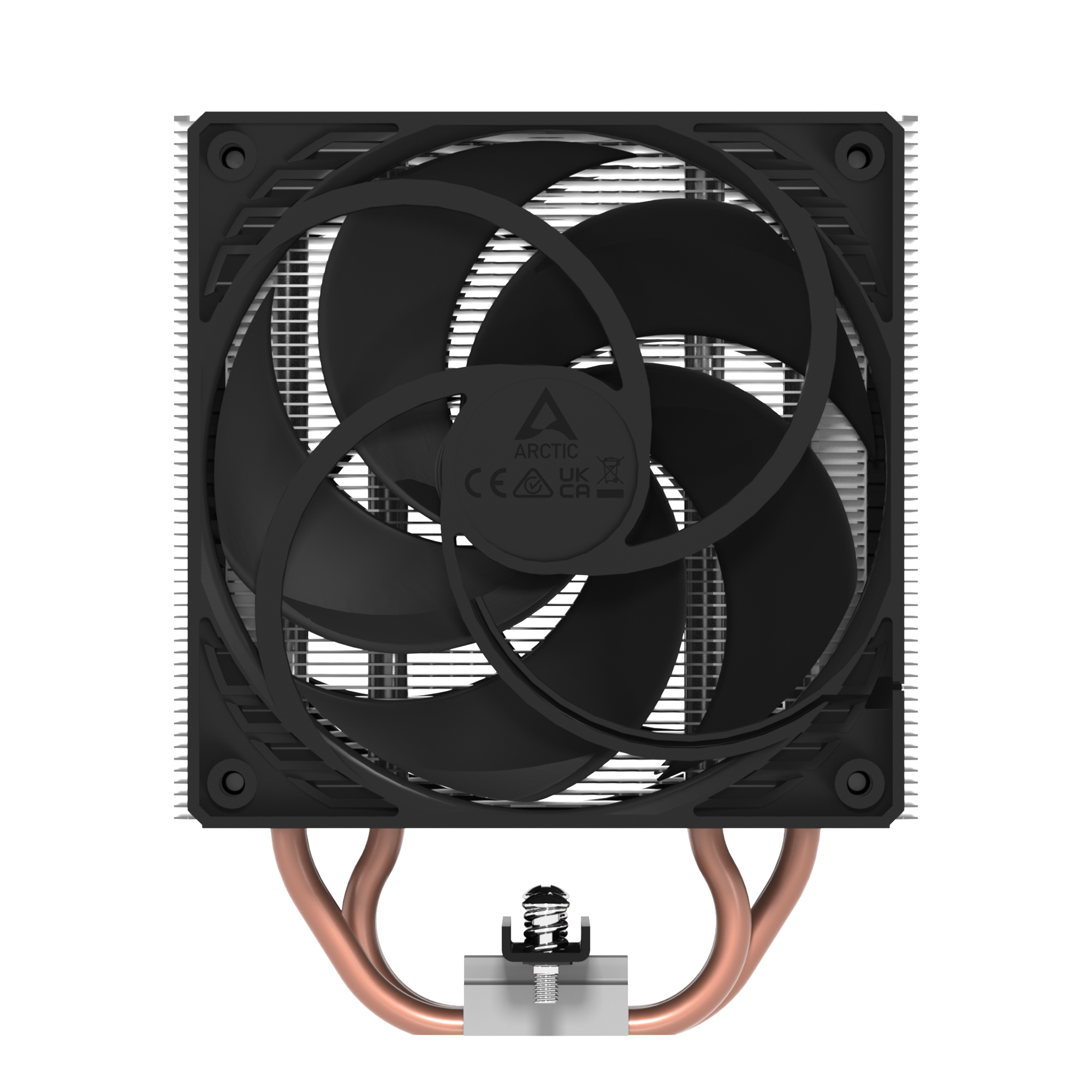

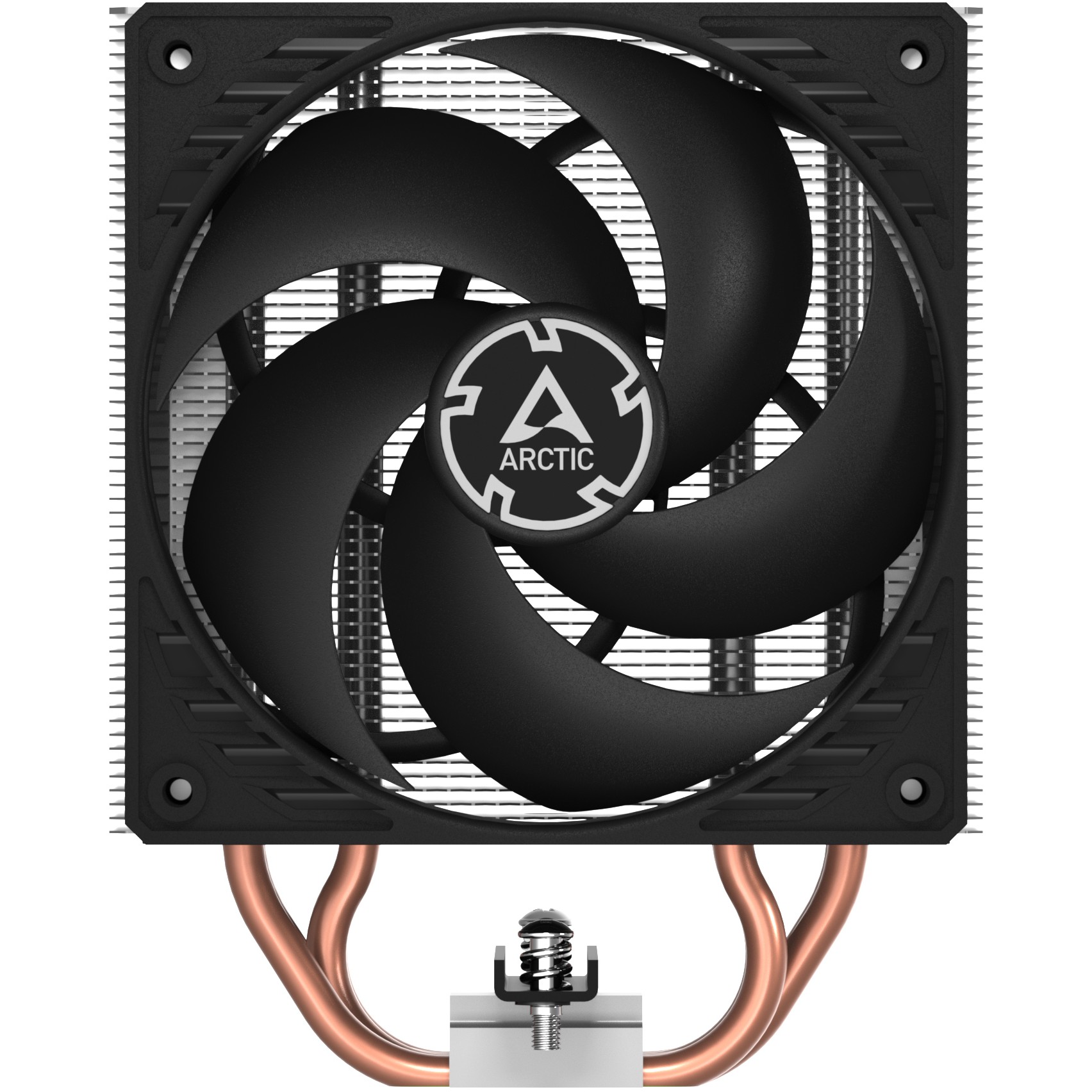

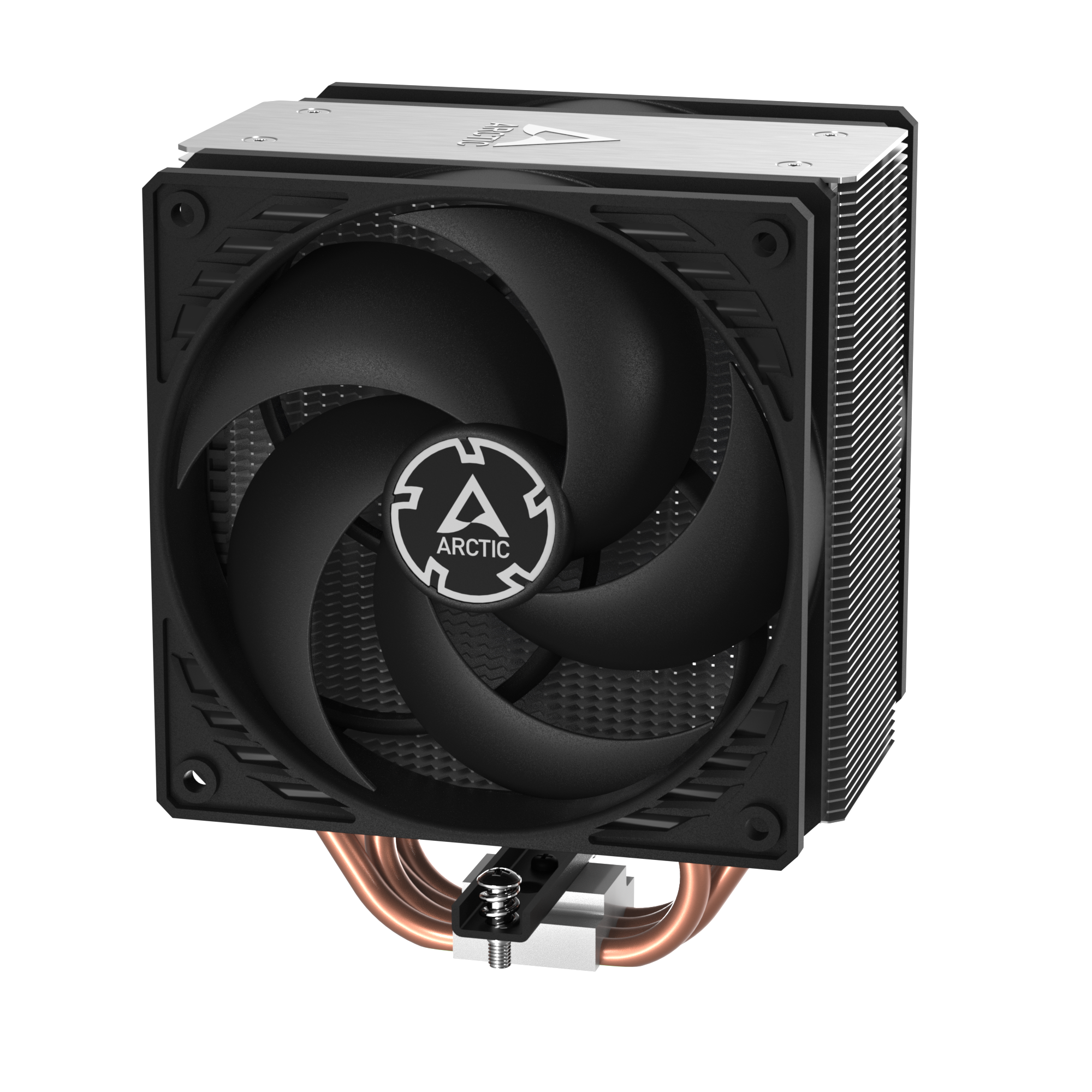

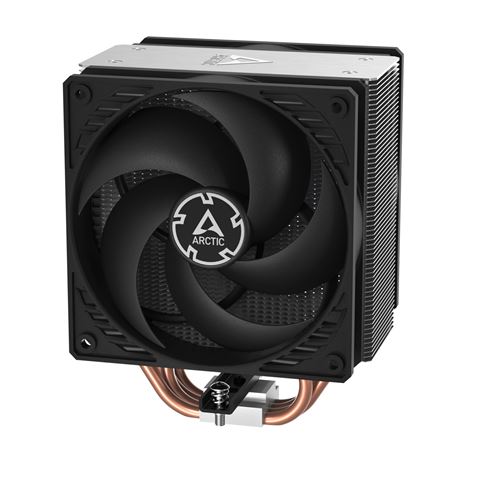

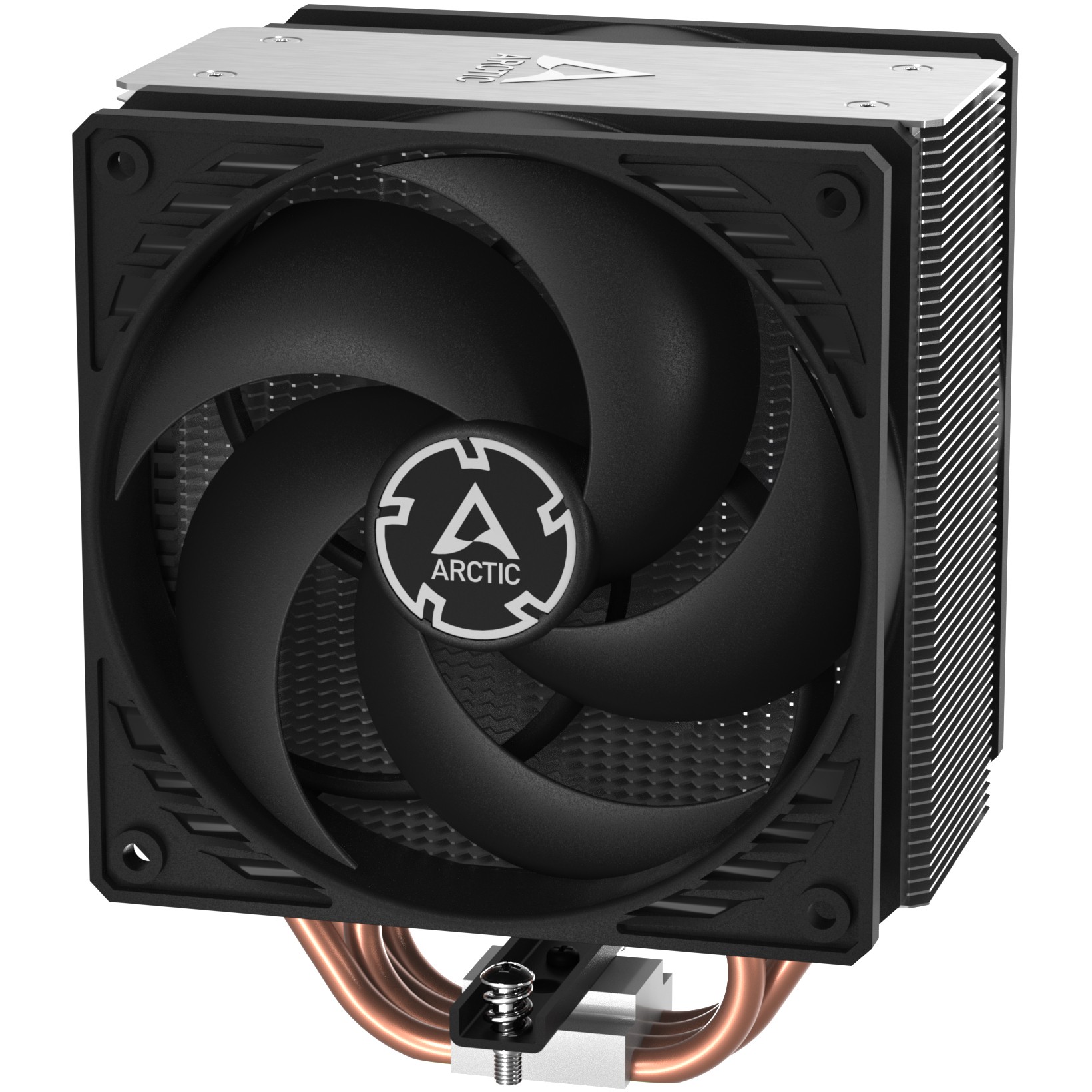

ARCTIC Freezer 36, cooler for INTEL/AMD desktop processors

High-quality processing with an aluminum top plate

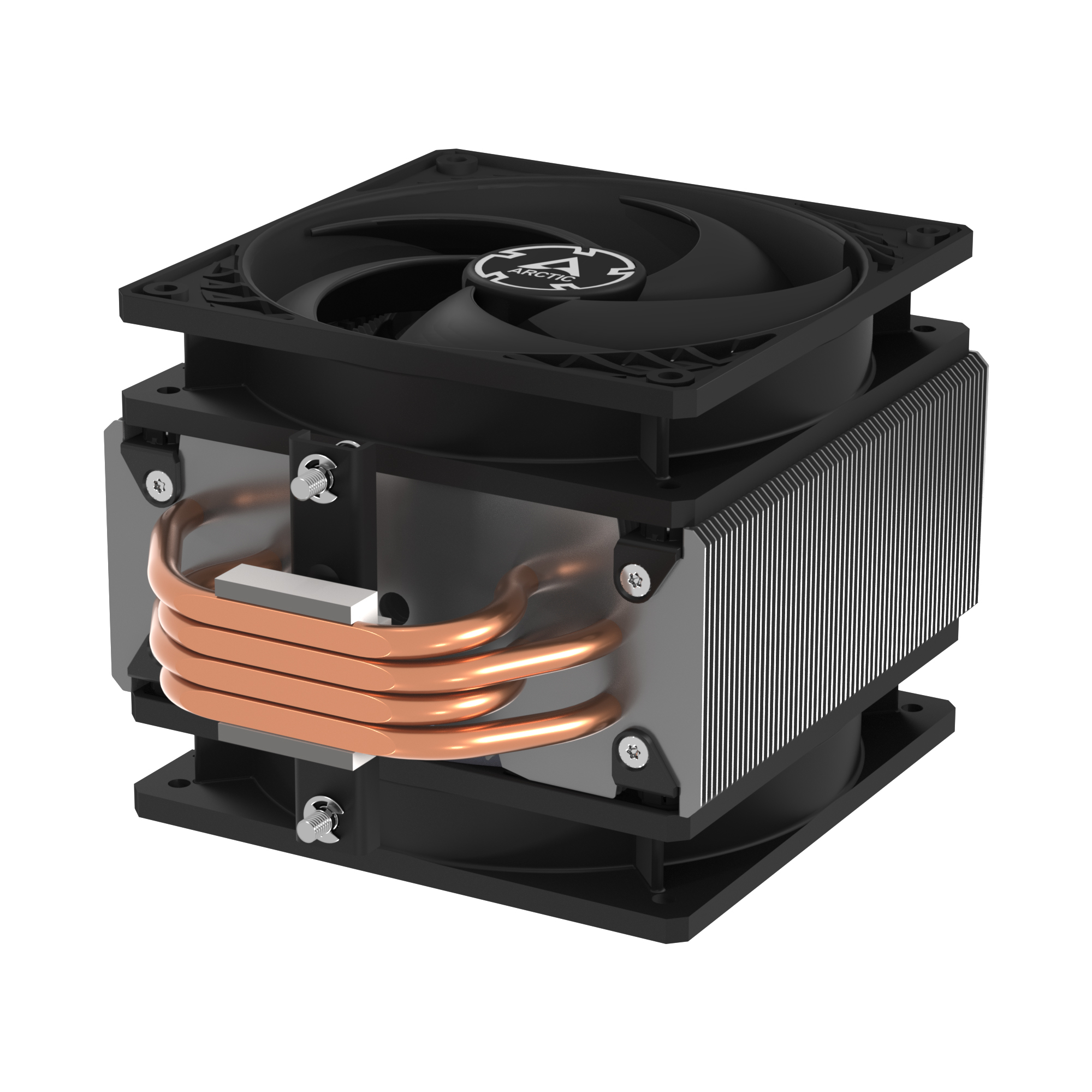

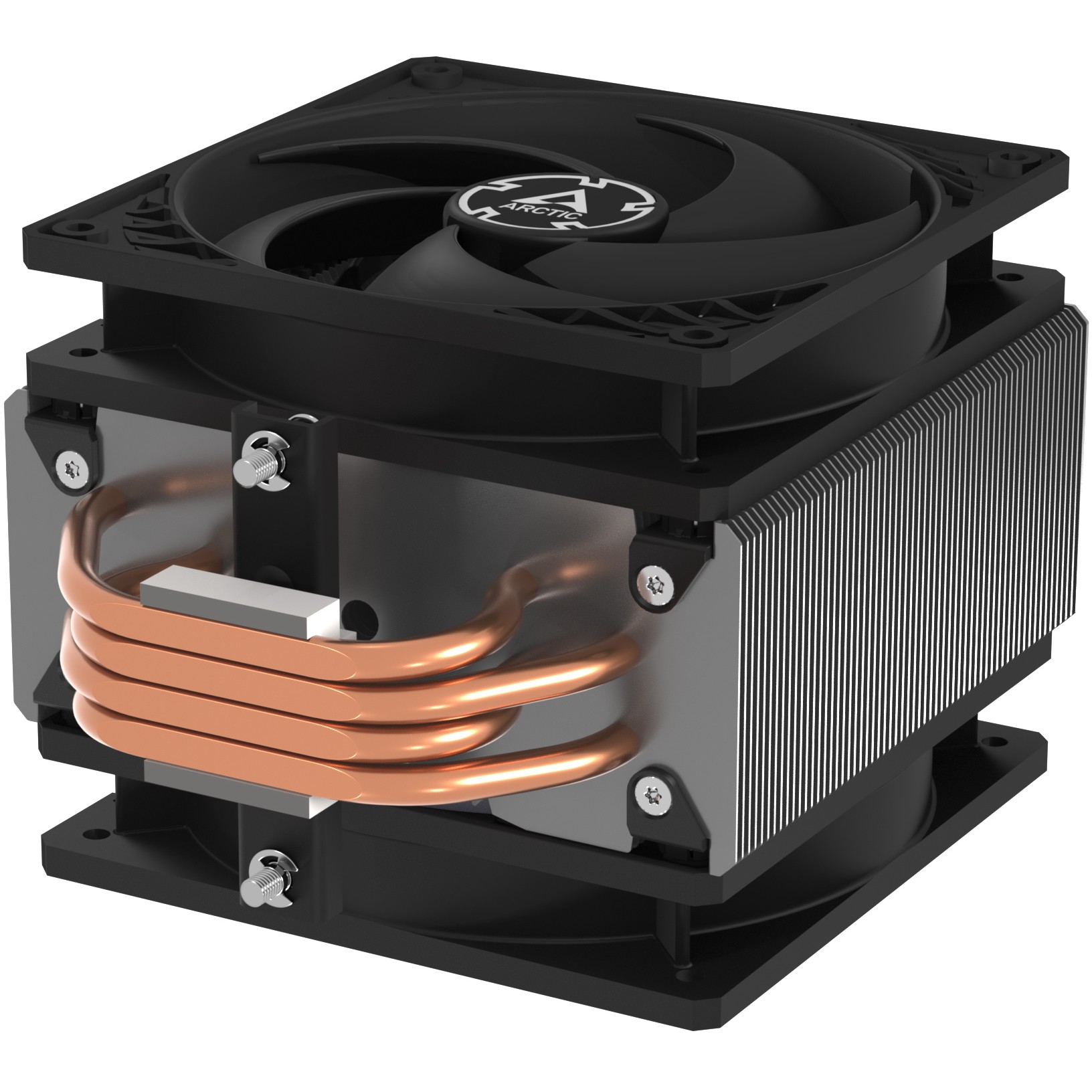

With its push-pull configuration, the Freezer 36 not only impresses with its efficient cooling capacity, but also with its design. The soldered ends of the heatpipes are hidden by a bolt-on aluminum cover, allowing it to blend seamlessly with any PC setup and enhance performance and appearance.

Improved Fan Mounting
Thanks to the innovative fastening system, the fans in the cabin are easily installed in the refrigerator with the help of the click system. This mounting method eliminates the need for fan clips, making it easy to install the heatsink or replace fans, even if the heatsink is already installed. Freezer 36 is therefore compatible with most 120 mm fans.

High-quality bearing
Thanks to the combination of alloy and lubricant developed in Germany, friction inside the bearing is reduced to a minimum and greater efficiency is achieved. In addition to preventing lubricant loss, pin and sleeve wear is also reduced. In this way, less heat is produced, less bearing noise is produced and the lifespan of the fan is significantly extended.

Optimized heatsink

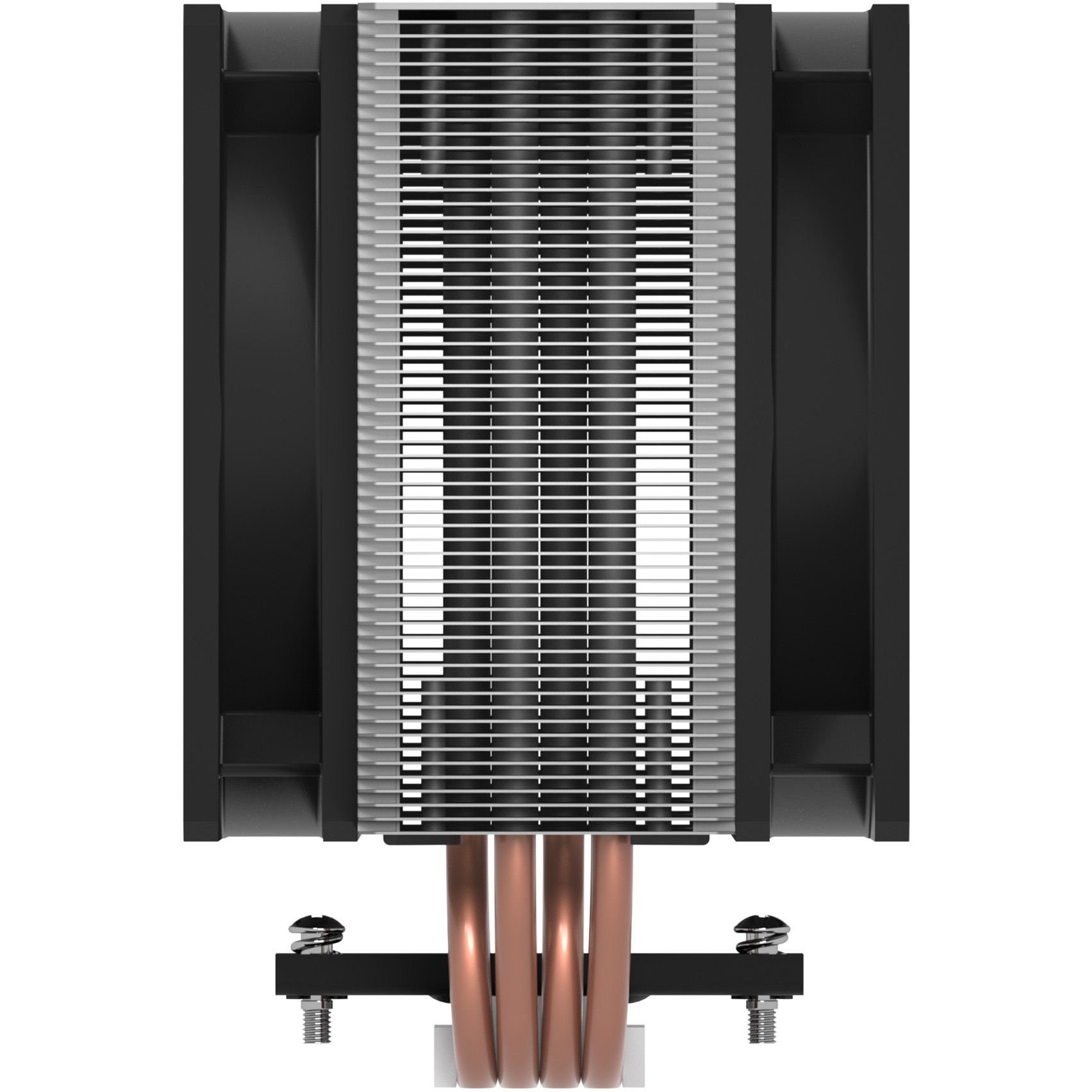

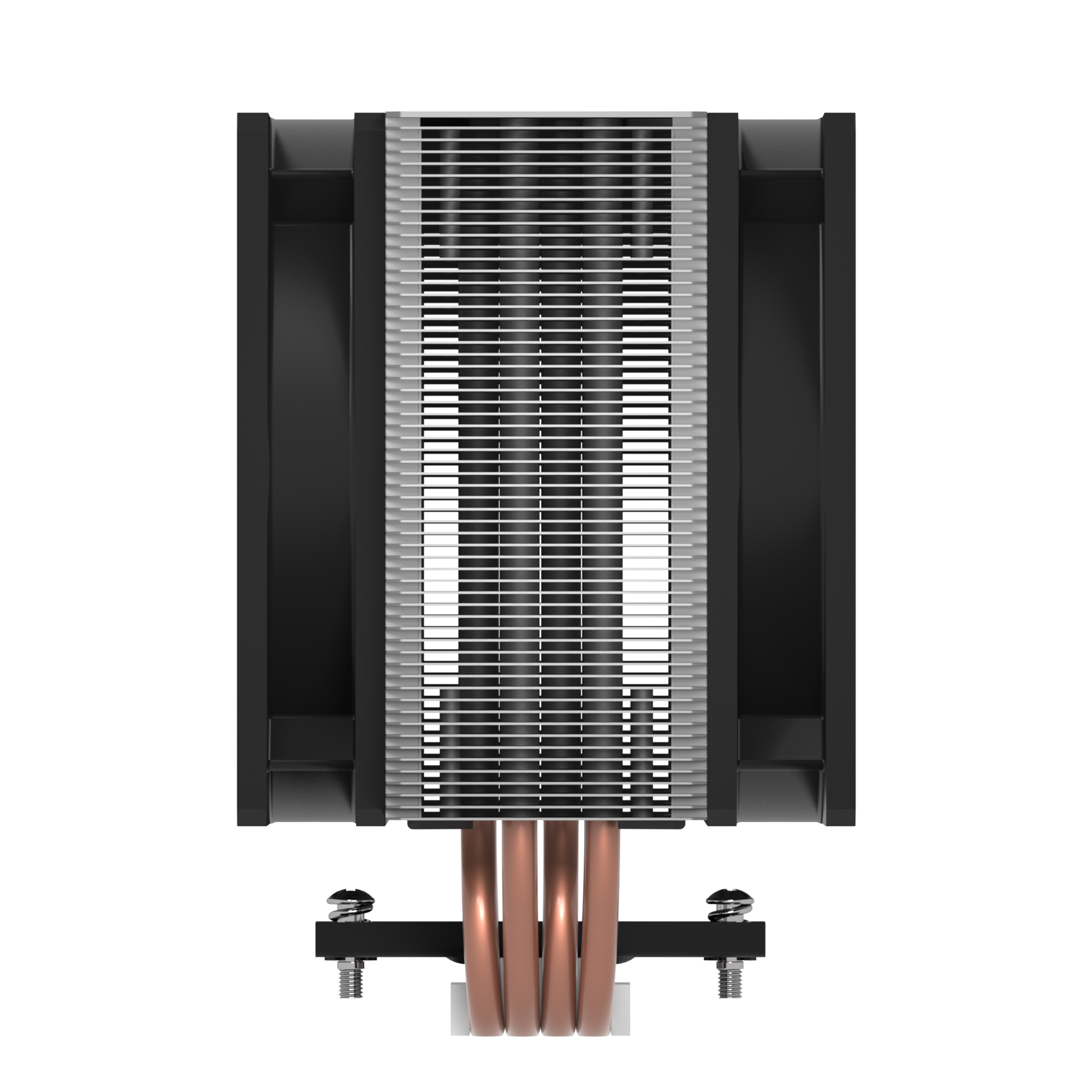

The fins of the heatsink are open on the side and allow the draft fan to draw additional cool air from the computer case through the heatsink. This side flow design allows for even more efficient ventilation.

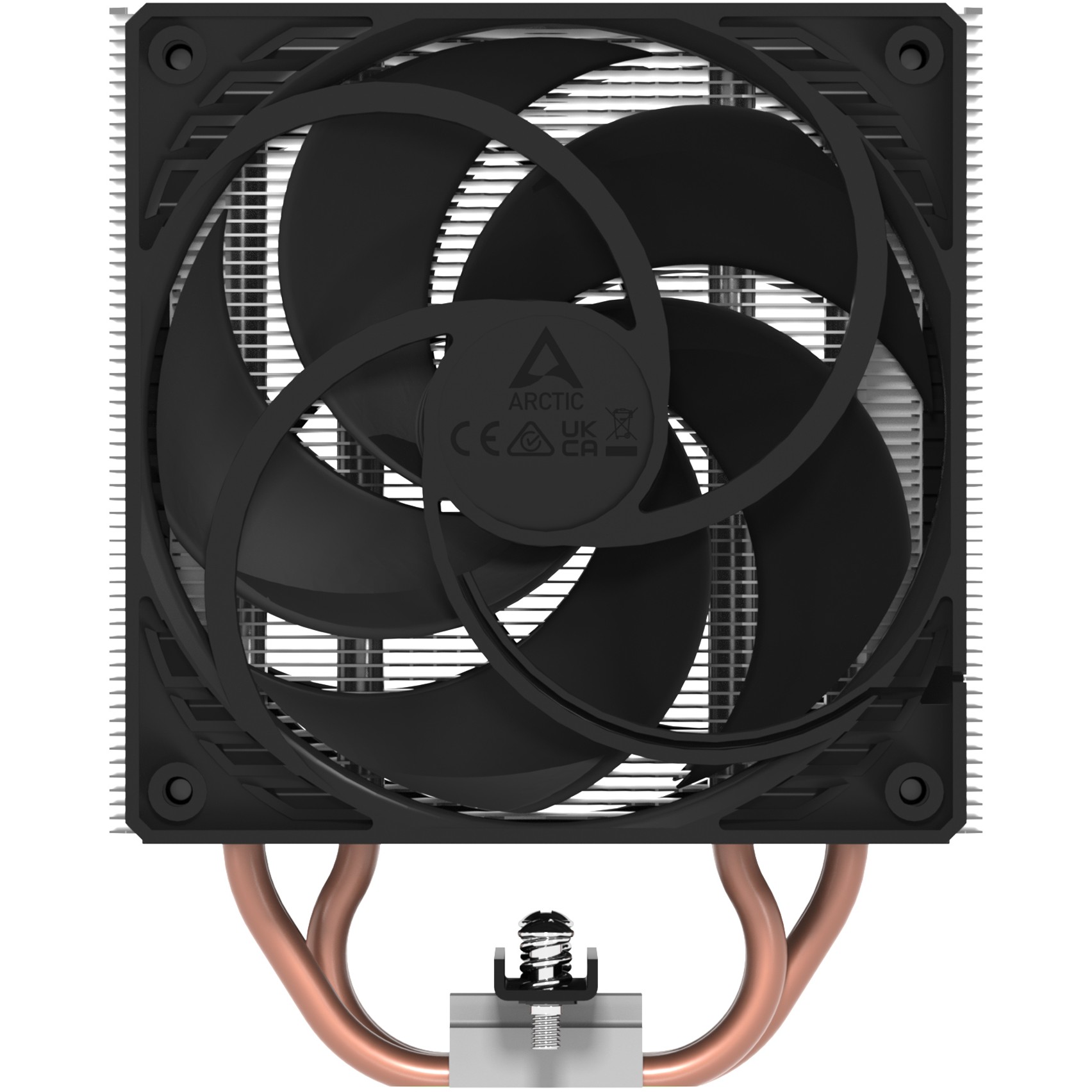

High Static Pressure P-fans
ARCTIC relies on proven P fans known for their strong performance. The P series is particularly suitable for use on refrigerators and radiators. Due to the dense ribbed structure of the cooling ducts, the fans used achieve significantly better performance than fans designed for air flow due to high static pressure.

Quality you can rely on
To ensure the long life of our products, we carry out long-term tests in various, sometimes very unfavorable conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only exceptional in terms of quality, but also in terms of durability.

Compatibility:
Intel: LGA1851 | LGA1700
AMD: AM5 | AM4
PI | NNPI: 250 | 234
TIM: MX-6 (0.8 g)
Operating ambient temperature: 0—40 °C

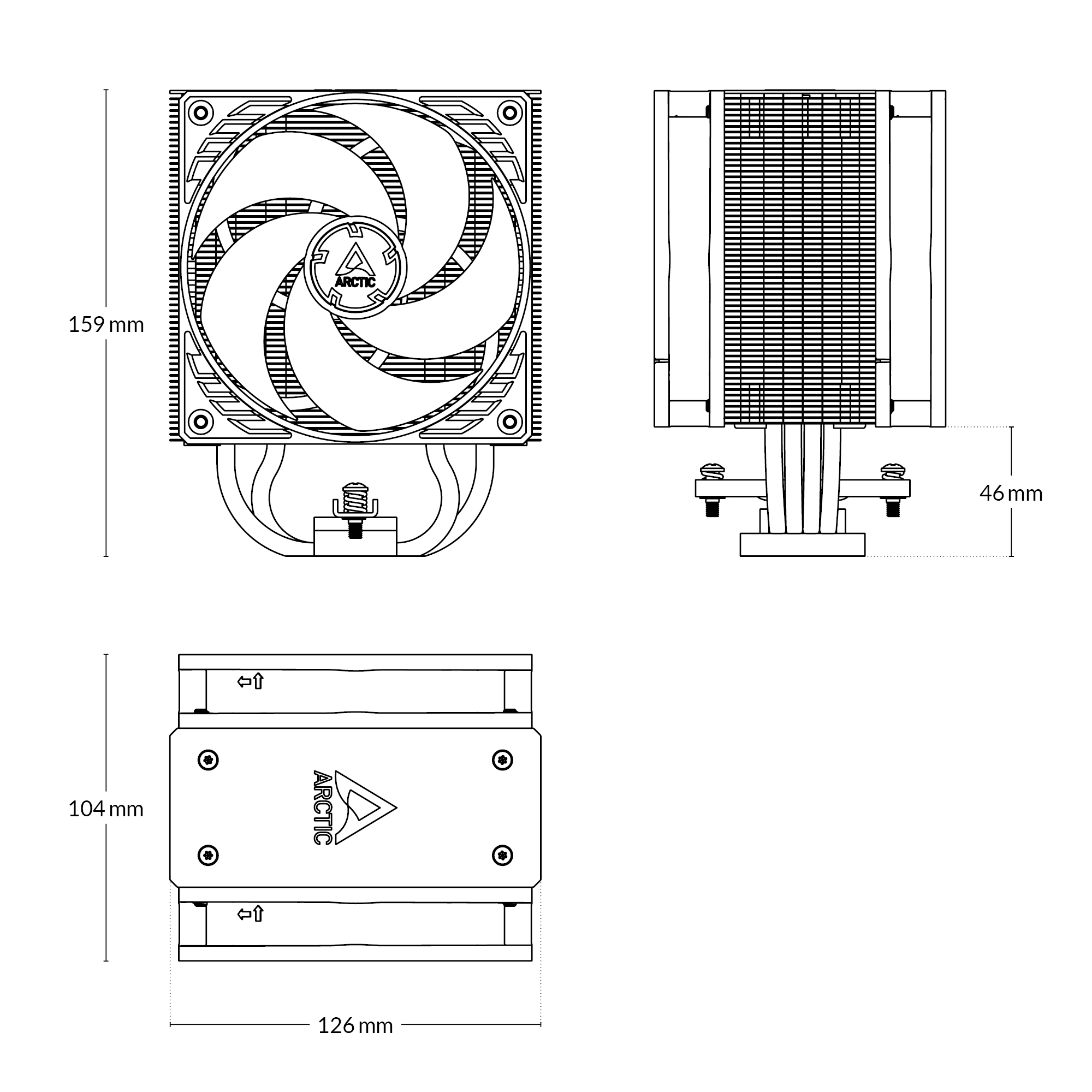

Dimensions: 104 (L) x 126 (W) x 159 (H) mm
Weight: 890 g
Cooler:
Heat pipes: 4 x 6 mm Ø, copper
Fin bundle: 59 x 0.4 mm, aluminum
Fans:
Fan: 2x P12 PWM PST
Speed: 200 - 1800 rpm, PWM control (0 rpm below 5% PWM)
Bearing: fluid dynamic bearing
Currently | Voltage: 0.10 A | 12 V DC
Cable length: 200 mm + 80 mm distribution cable
Connection: 4-pin PWM connector + 4-pin plug
