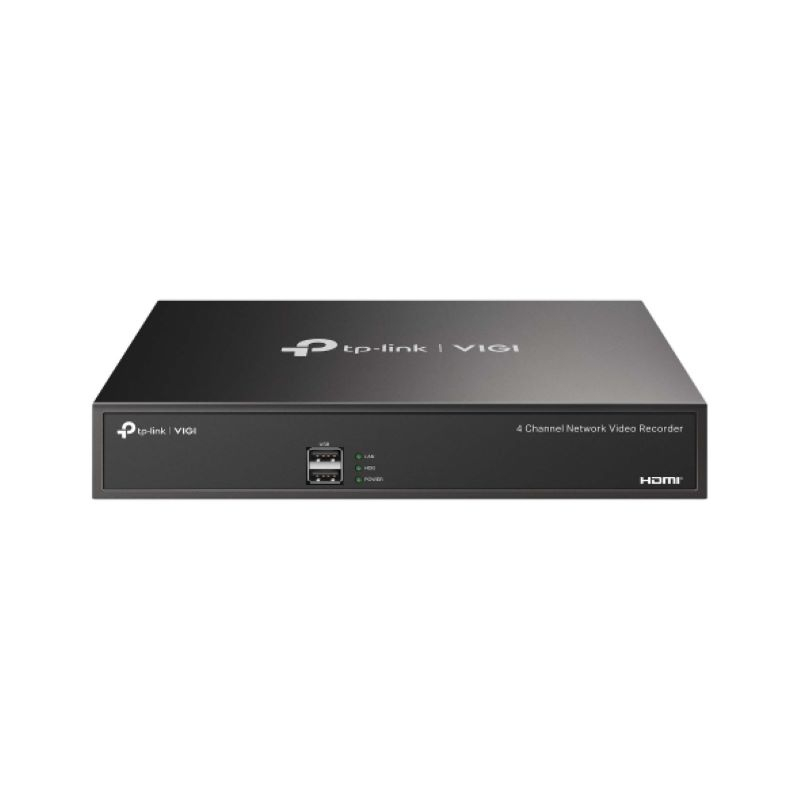

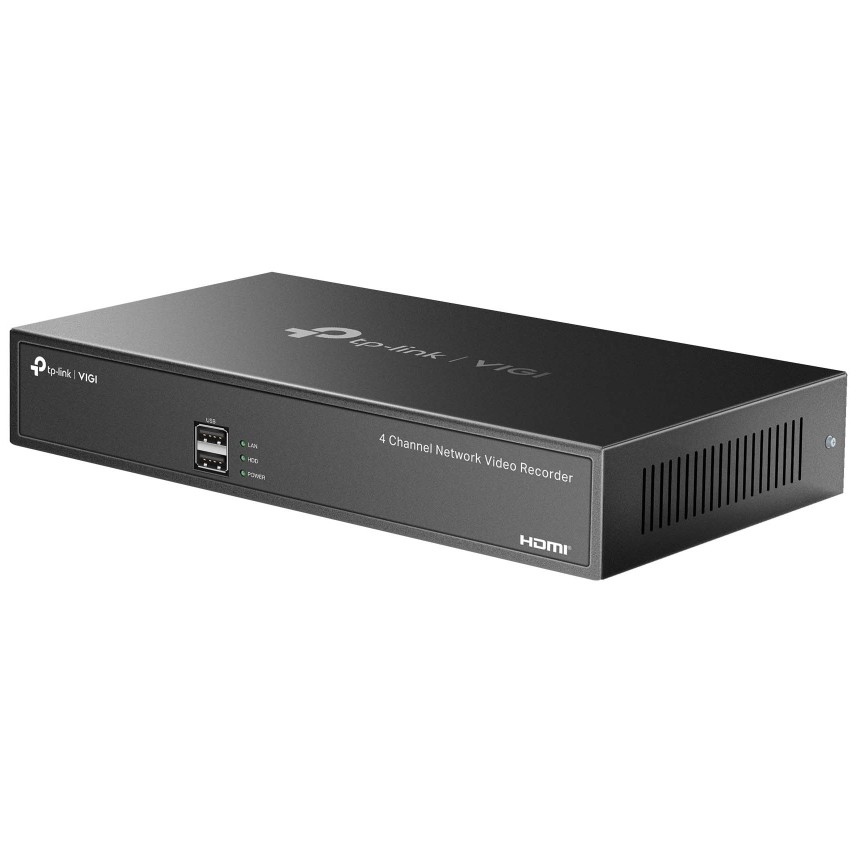

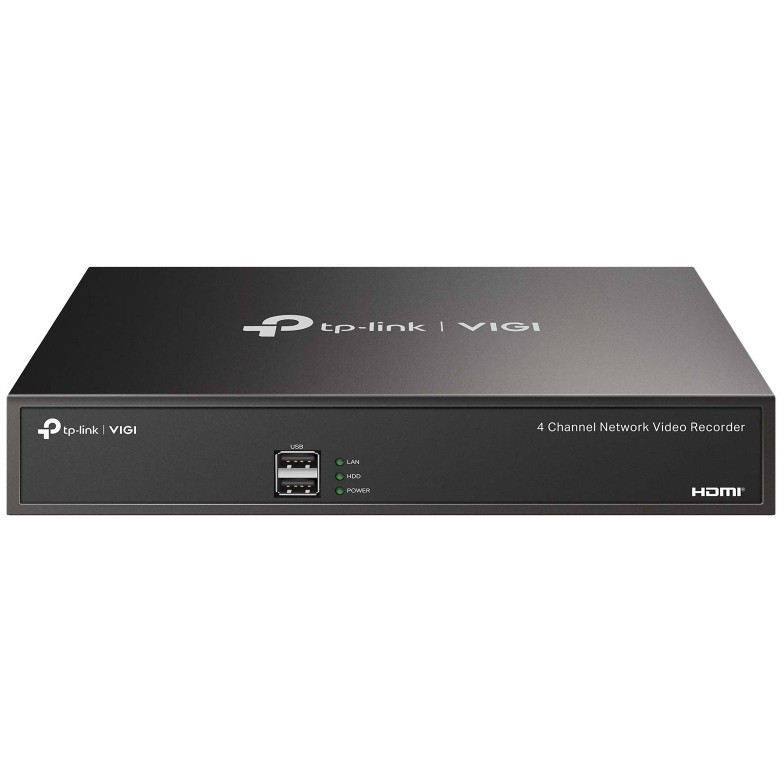

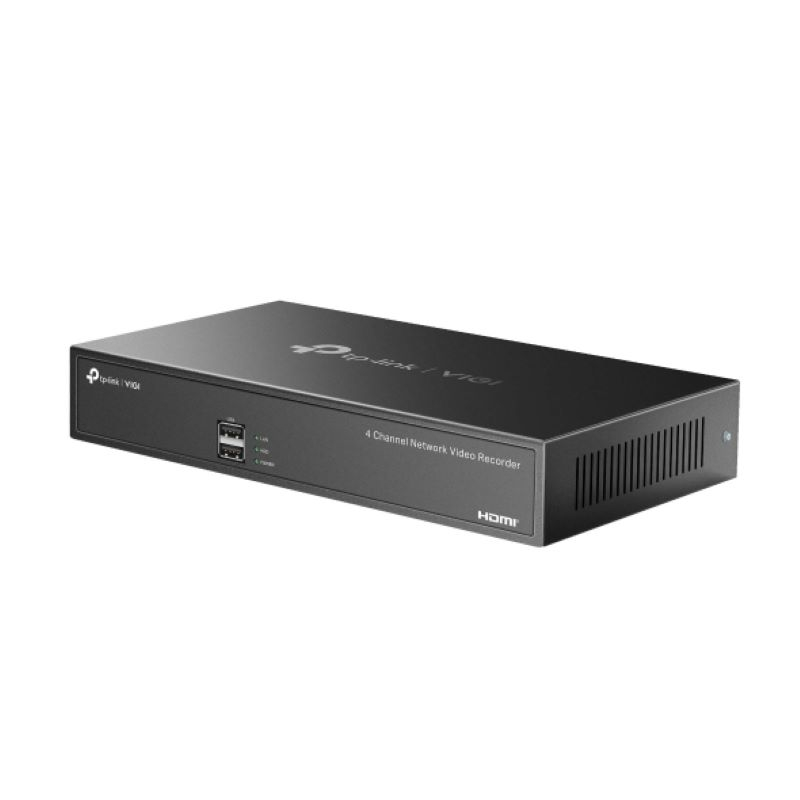

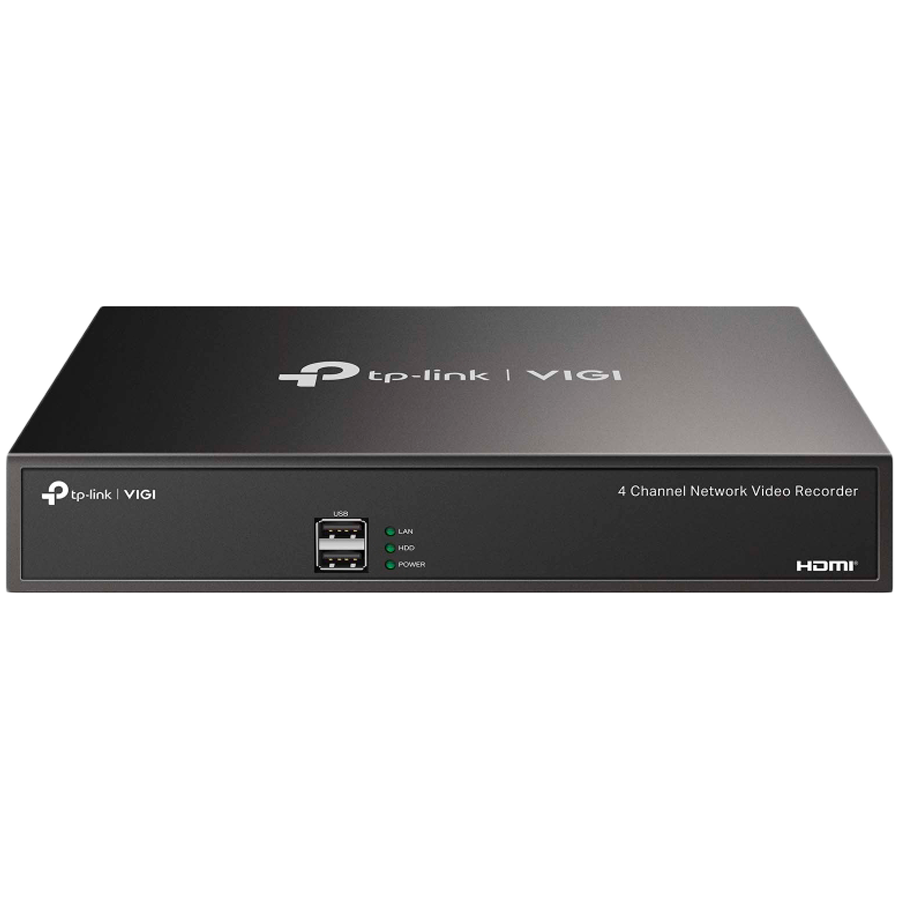

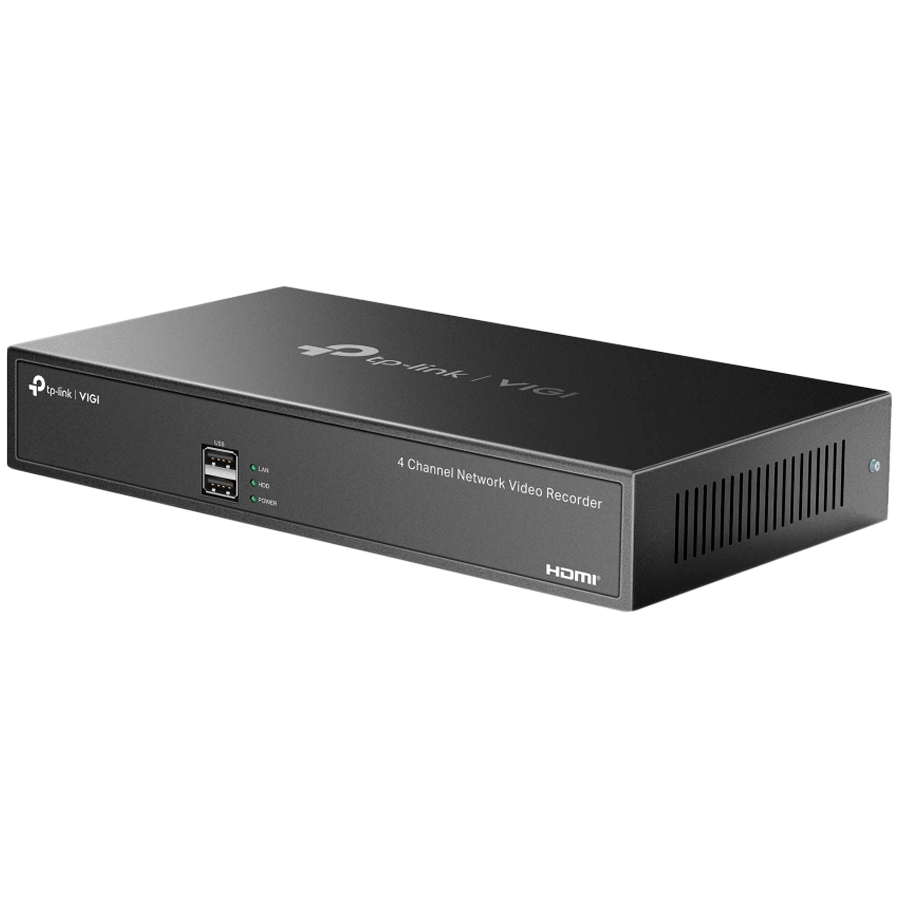

Mrežni video snimač s 4 kanala TP-LINK VIGI (4 kanala, mrežni video snimač)

4-channel live view and 4K HDMI video output
2-channel at 8 MP/ 4-channel at 4 MP decoding capability
4-channel synchronous playback†
80 Mb/ s incoming bandwidth and 60 Mb/s outgoing bandwidth
1 SATA interface (up to 16 TB) *
H.265+ compression technology
Simultaneous HDMI and VGA output
Remote monitoring

VIDEO AND AUDIO
IP video input 4-channel
Incoming bandwidth 80 Mbps
Outgoing bandwidth 60 Mbps
Output resolution HDMI 1 channel , resolution: 3840 × 2160/30 Hz, 1920 × 1080/60 Hz, 1680 × 1050/60 Hz, 1440 × 900/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Output Resolution VGA 1 channel, resolution: 1920 × 1080/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video output mode HDMI/VGA Simultaneous output
Multiview 1/4 screen
DECODE
Audio compression G.711A/G.711U/G.726
Video compression H.265+/H. 265/H.264+/H.264
Recording resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
4 -channel synchronous playback
Capacity 2-channel at 8 MP, 4-channel at 4 MP
RECORD KEEPING
Recording mode • Manual recording
• Scheduling recording
• Motion detection recording
Playback mode • Instant playback
• Regular playback
• Tag playback
• Event playback
Backup mode • Regular backup
• Backup videos
Play function • Play
• Pause
• Stop
• Fast forward
• Fast backward
• Play after frame
• Full screen mode
• Video clip
• Export clip
• Digital zoom
• Lock recording
• Mute on/off
< strong>NETWORK
UPnP protocol (Plug and Play), NTP (Network Timing)
Mobile phone access Android, iOS
Web browser Chrome (57+), Firefox (52 +), Edge (91+)
Interoperability ONVIF, CGI

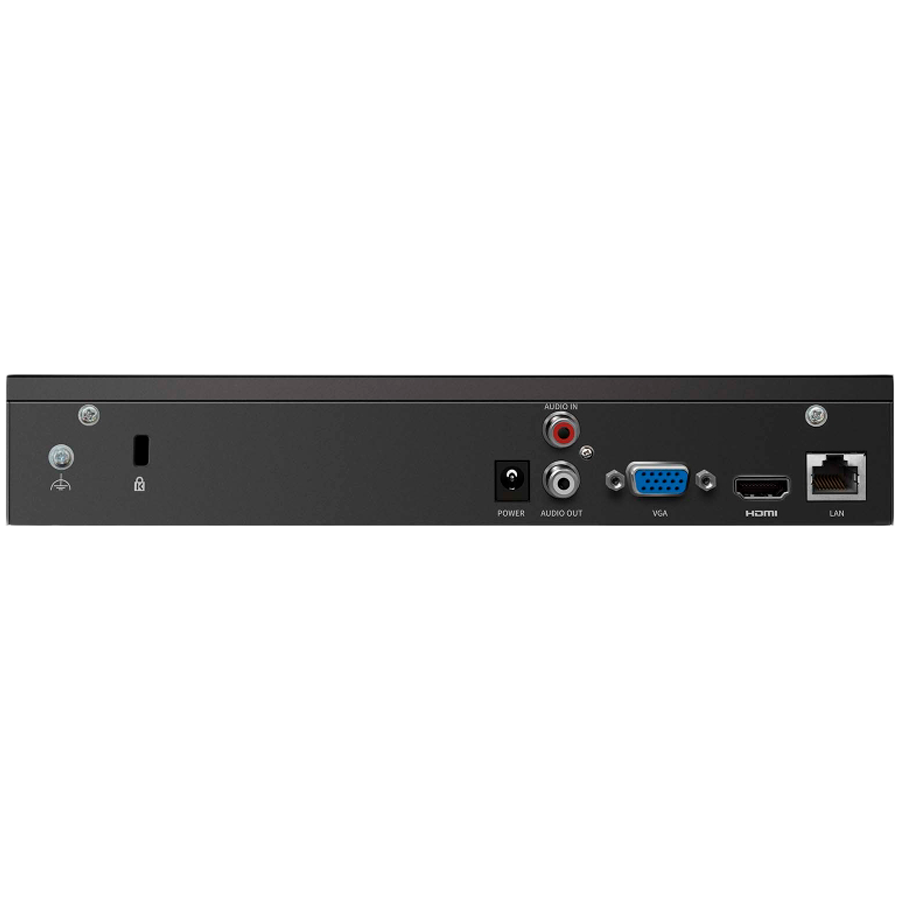

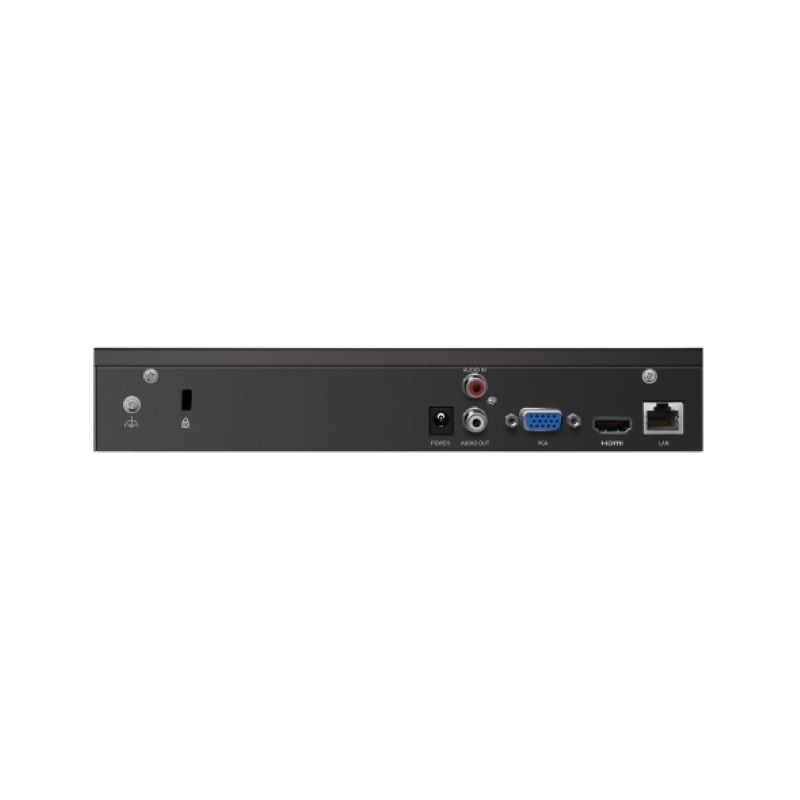

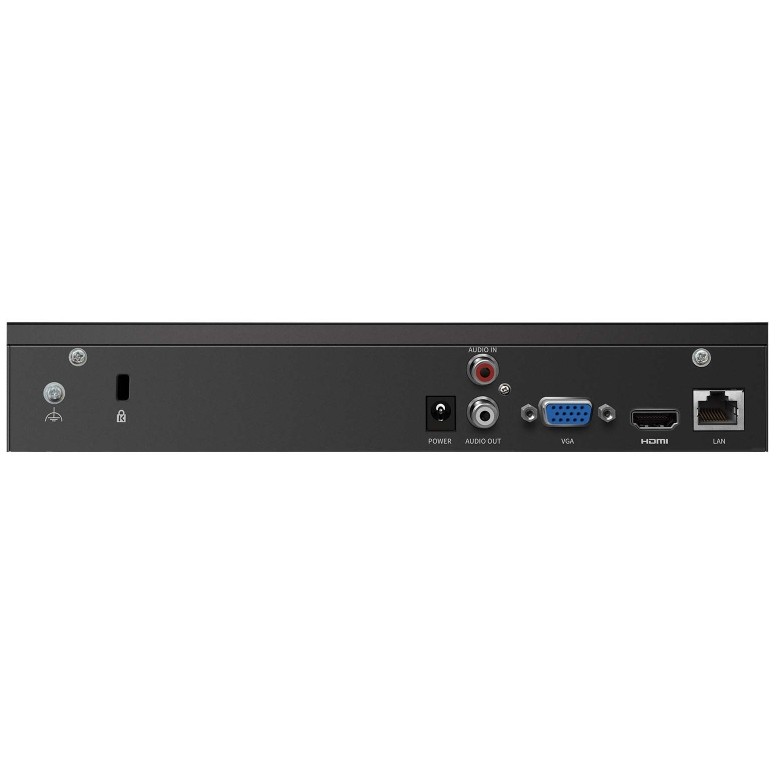

EXTERNAL INTERFACE
Network interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
USB interface 2× USB 2.0
Audio interface 1, Audio input; 1, Audio Out
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A< br />eSATA N/A
HDMI 1
VGA 1
HARD DISK
SATA 1 SATA interface
Capacity up to 10 TB capacity for each HDD*
ALARM
General alarm • Motion detection
• Video tampering
• Line crossing detection
• Intrusion detection
• Region entry detection
• Region exit detection
• Abandoned/removed object detection
• Vehicle detection
• Human detection
• Smart framework
Abnormality Alarm • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Link Alarm • Recording
• White Light Alarm
• Buzzer
• Log
• Audible alarm
GENERAL
Storage temperature -40-70 °C
Storage humidity 10% ~90% RH without condensation
Package contents • VIGI network video recorder
• Charger
• HDD screws
• Mouse
• Rubber feet
• Instructions for quick installation
Operating temperature • NVR: -10-55 °C
• Power supply: 0-40 °C
Operating humidity 10%~90% RH non-condensing
Dimensionsis (W X D X H) 246.2 × 148.2 × 45 mm
External power supply DC 12V/1.5A
Net weight 0.59 kg
Gross weight 0.95 kg
Power consumption 4.25W (without disk)
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
