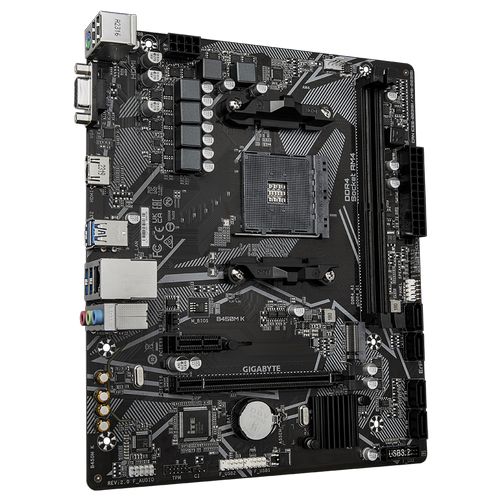

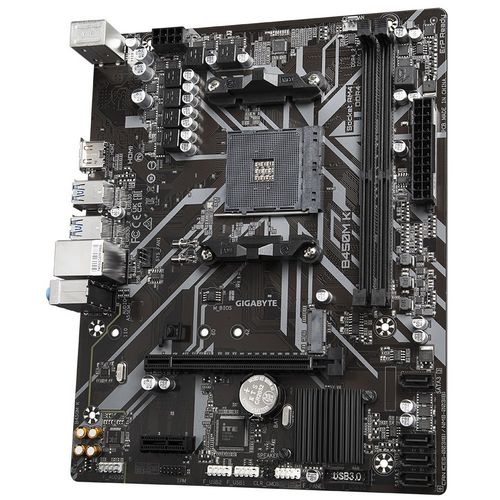

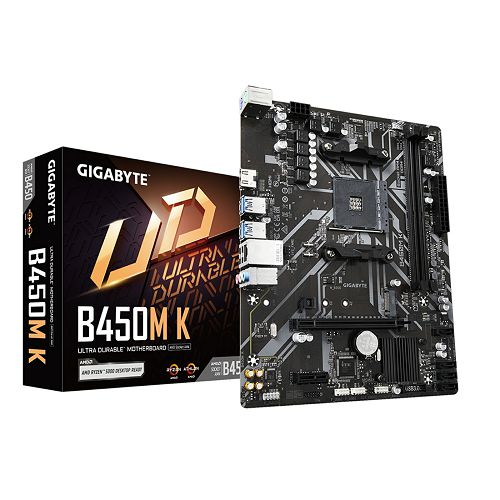

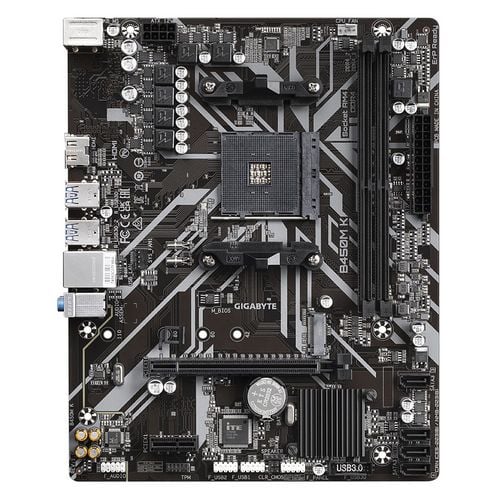

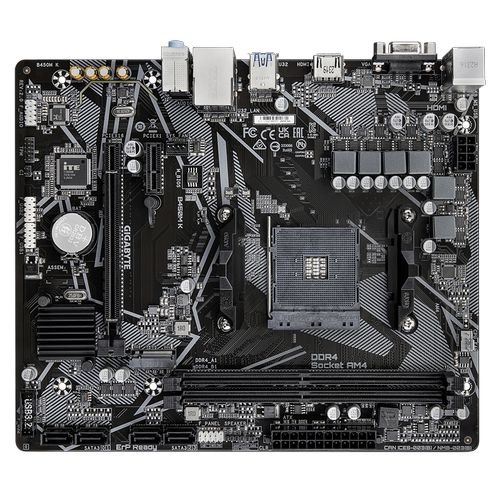

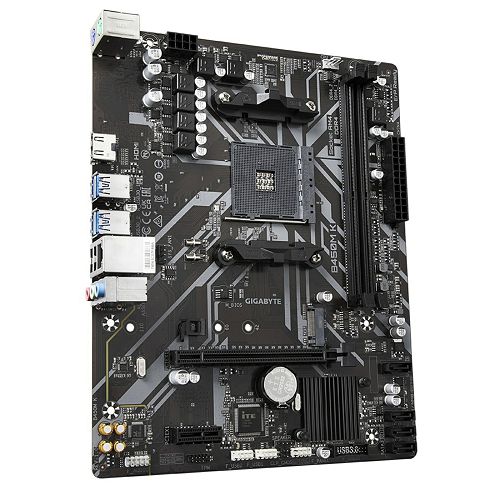

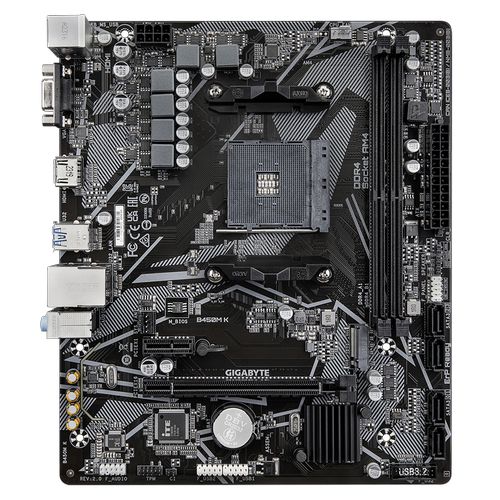

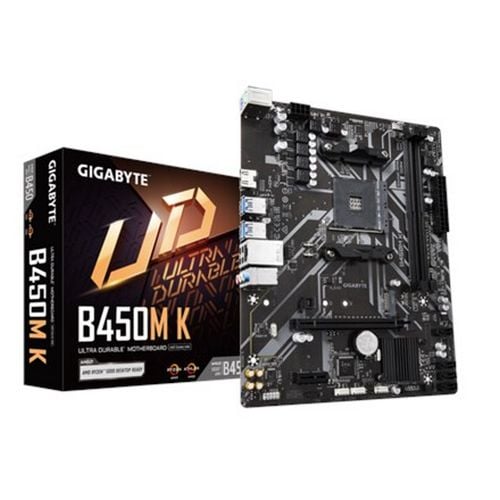

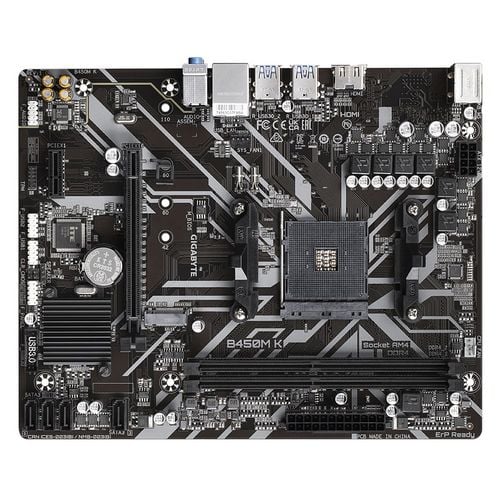

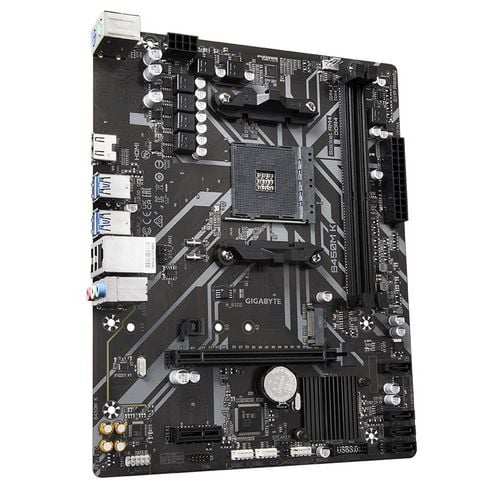

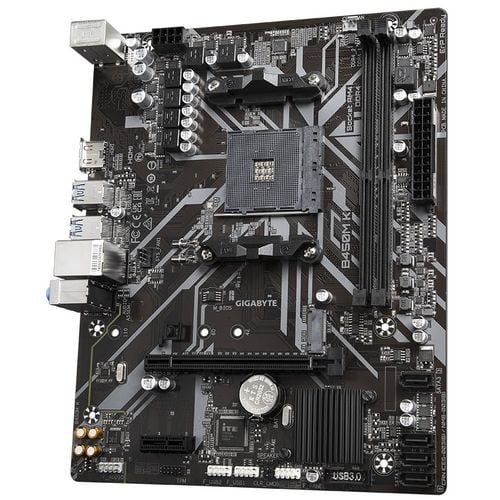

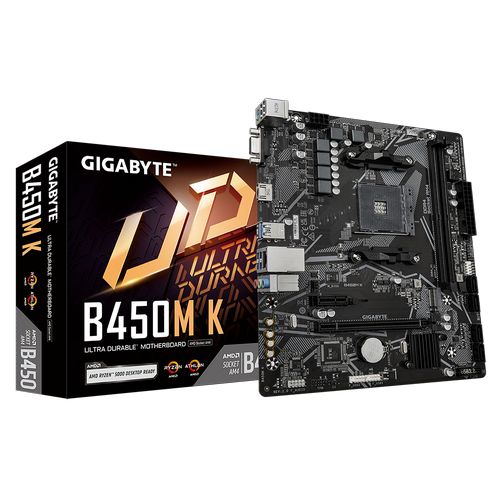

Matična ploča GIGABYTE B450M K (AM4 mATX, DDR4, SATA3, USB3.2Gen1, HDMI)
Najčešće dostupno
Informacije o raspoloživosti i vremenu isporuke su indikativne, ažuriraju se u intervalima i podložne su promjenama, te ne čine obvezujuću ponudu. Potvrdu dostupnosti i cijene ćemo vam dostaviti nakon što primimo i obradimo vašu narudžbu. Ugovor o kupnji je sklopljen tek po izdavanju računa.
BASE: AMD AM4
FOR PROCESSORS: AMD RYZEN
FORMAT: mATX format 24.4 cm x 19.5 cm
CONNECTION CHIP: AMD B450
MEMORY:
2 x DDR4 DIMM ECC/non-ECC (3600(O.C.) /3466(O.C.)/2933/2667/2400/2133MHz) up to a total of 64GB capacity, dual channel support, Extreme Memory Profile (XMP)support
GRAPHICS : YES, via APU
RAID: YES (0,1,10)
EXPANSION SLOTS:
1 x PCI Express x16 PCIEX16
1 x PCI Express x1
NETWORK CARD: Realtek LAN chip (10/100/1000Mbit)
SOUND CARD : Realtek codec High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTIONS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM ) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

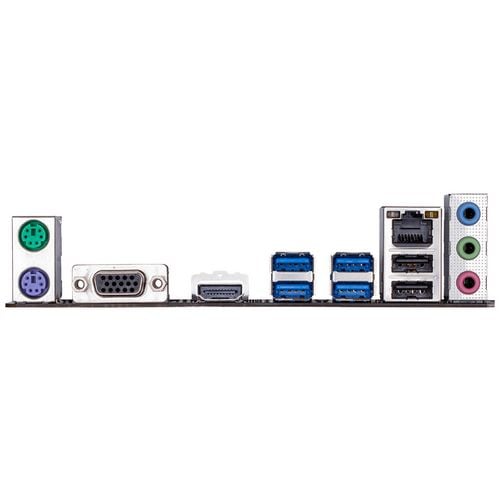

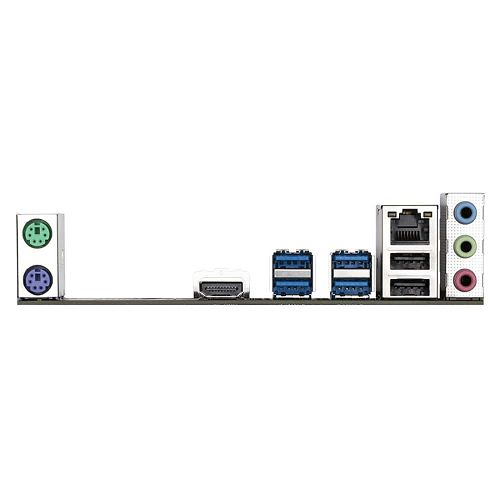

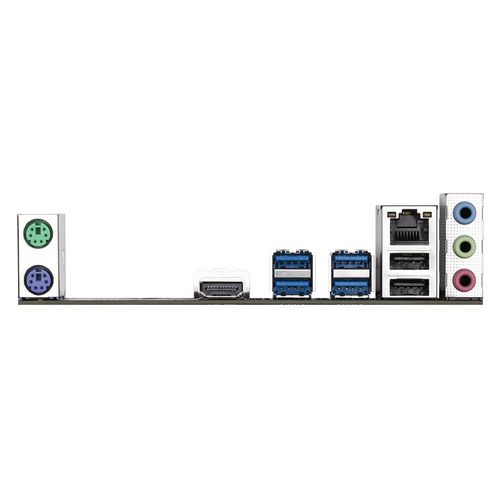

OUTSIDE CONNECTIONS:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x HDMI 2.0 port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
EXTRA:
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Manufacturer website: https://www.gigabyte.com/Motherboard/B450M-K-rev-20#kf
