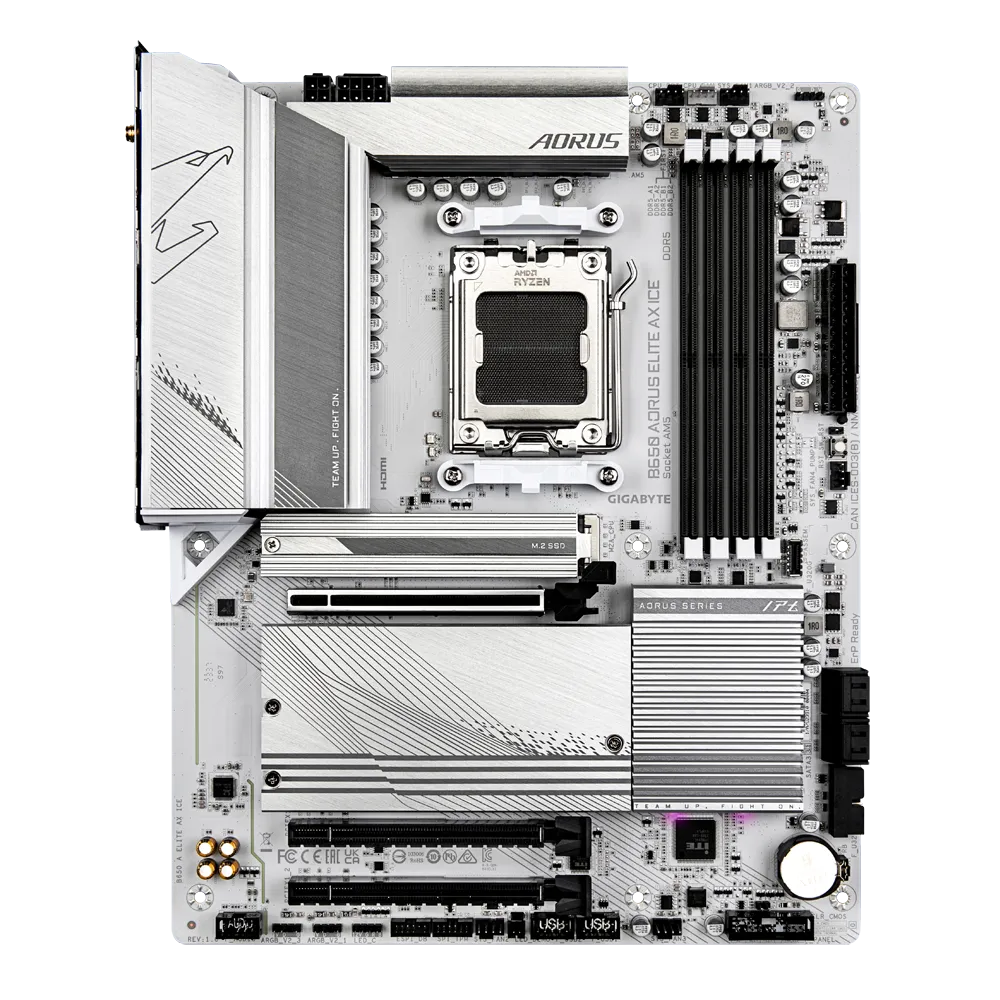

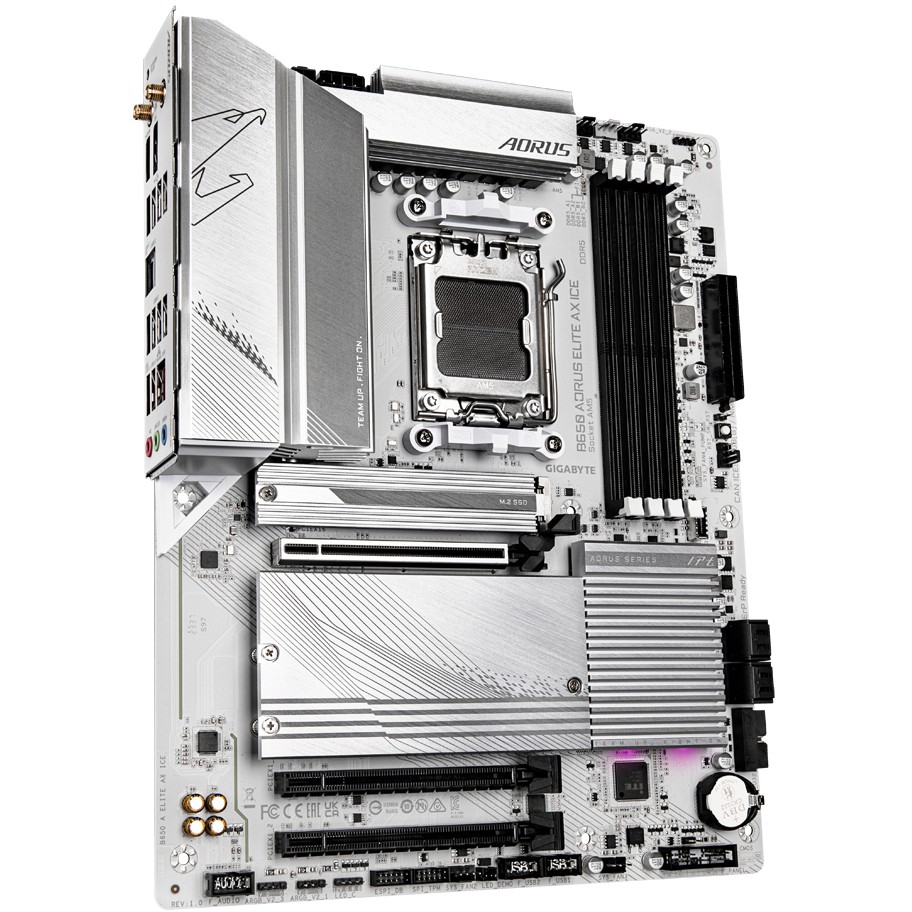

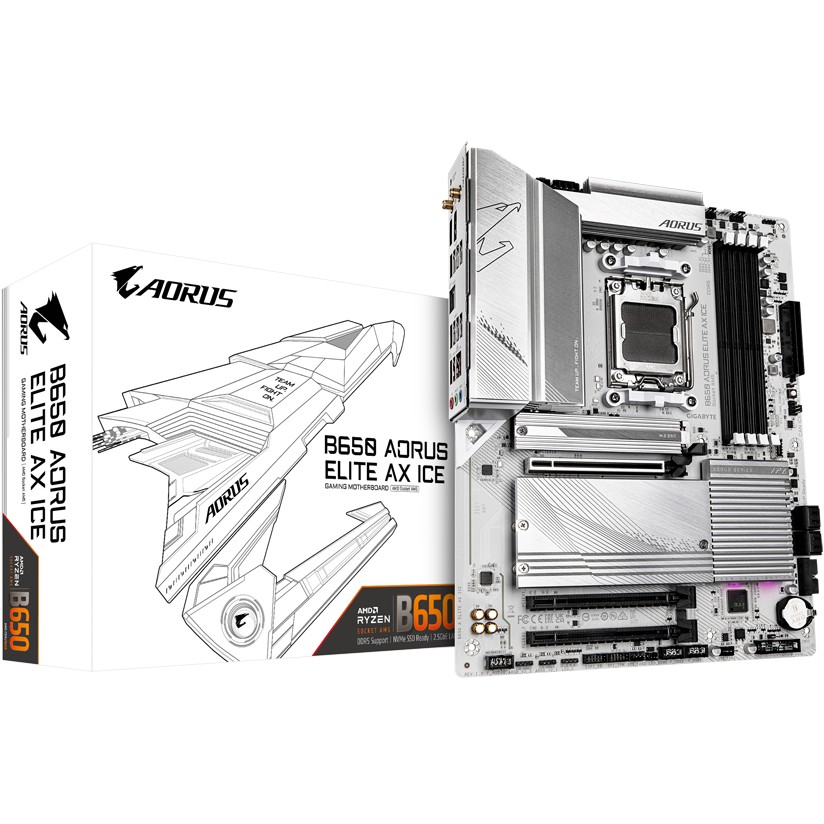

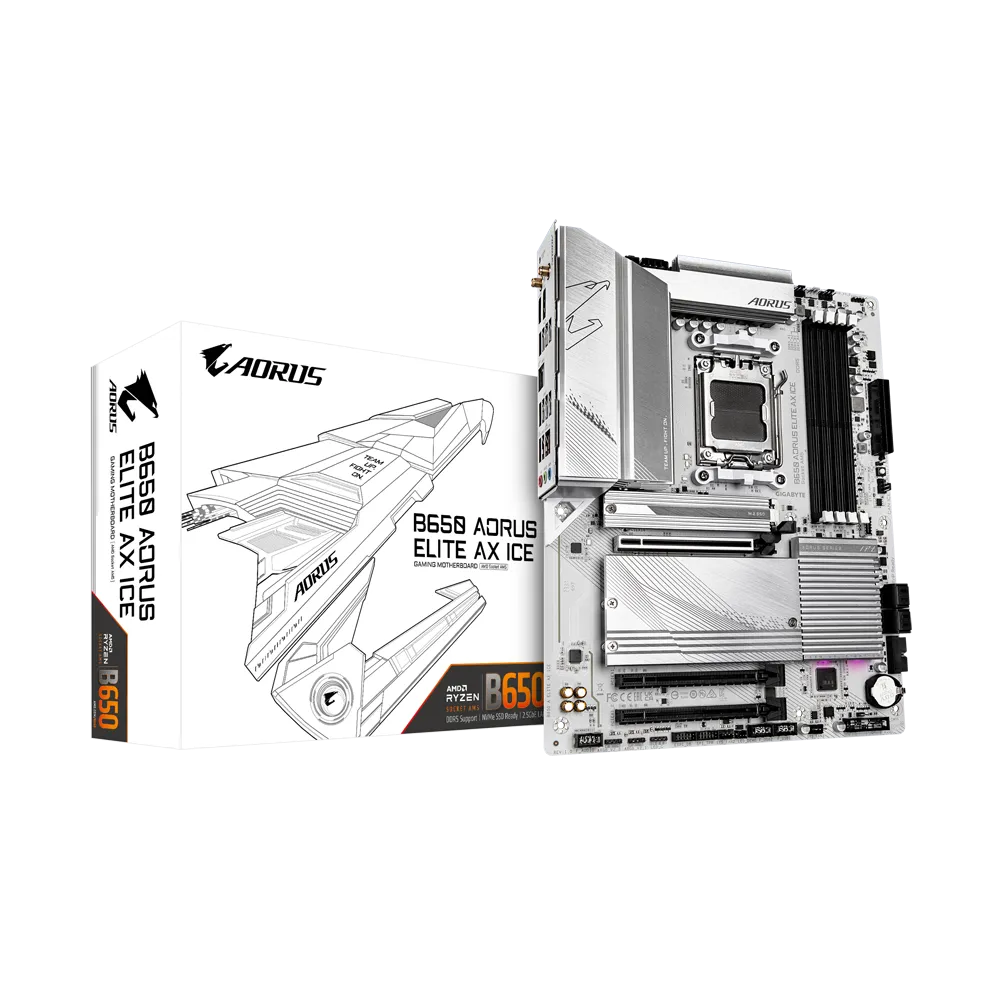

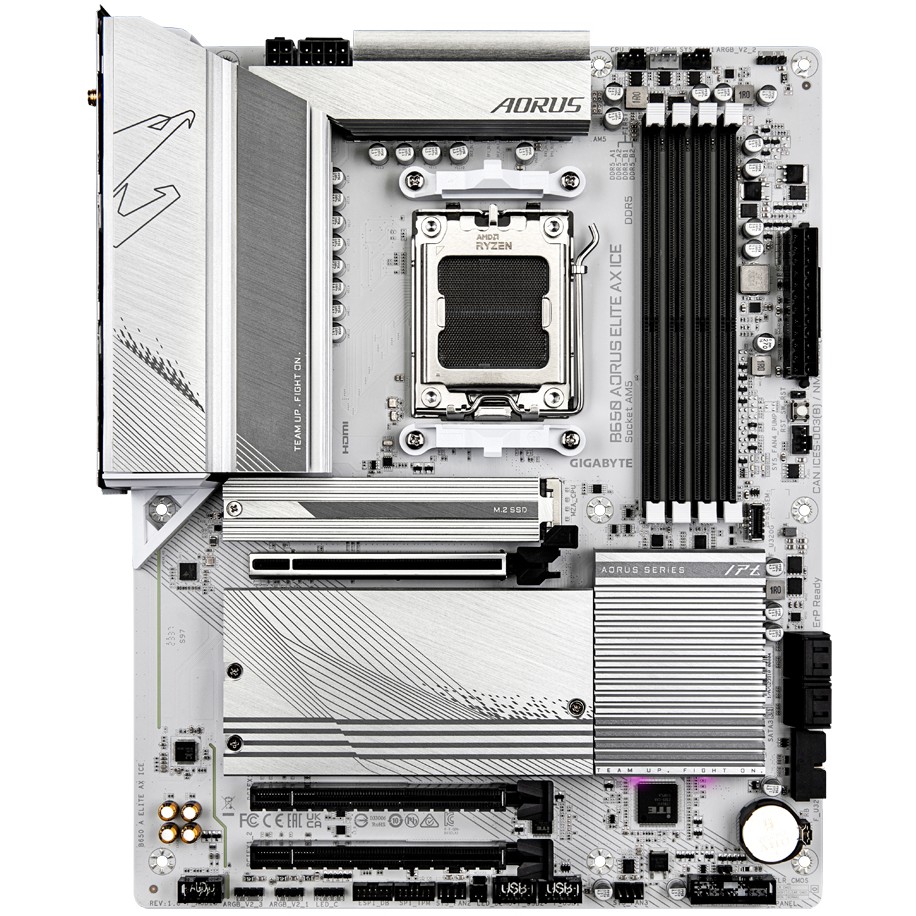

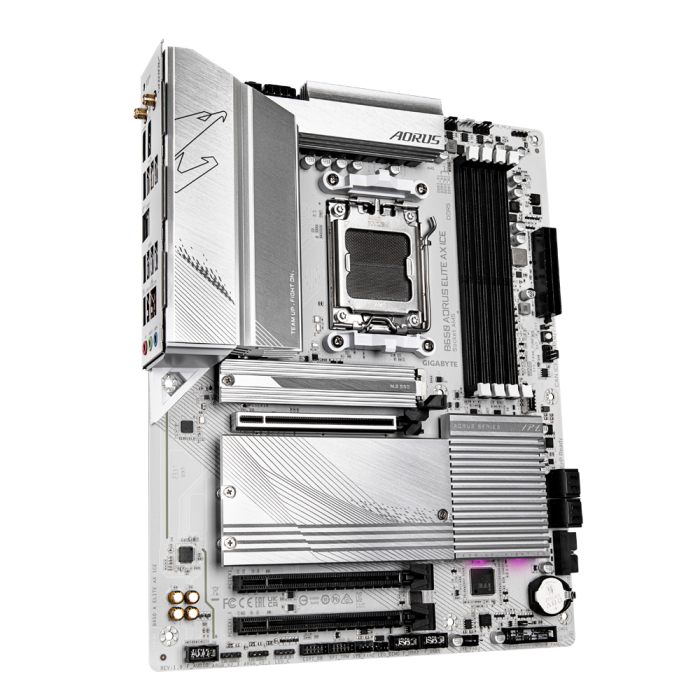

GIGABYTE B650 AORUS ELITE AX ICE, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, WiFi 6E, AM5 ATX

BASE: AMD AM5
FOR PROCESSORS: AMD RYZEN 7000/8000 Series
FORMAT: ATX format 30.5 cm x 24.4 cm
CONNECTION CHIP: AMD B650
MEMORY:
4 x DDR5 DIMM non-ECC8000(OC )/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC )/5600(OC)/5200/4800/4400MHz (depending on the processor) up to a total of 192GB capacity, dual channel and EXTended Profiles for Overclocking,Extreme Memory Profile (XMP)support
GRAPHICS: YES - via APU
RAID: YES (0,1,10)support for SATA/NVME storage devices
EXPANSION SLOTS:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series -Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
NETWORK CARD: Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit); RealtekWi-Fi 6E RTL8852CE, a, b, g, n, ac, ax, supporting 2.4/5/6 GHz, BLUETOOTH 5.3
SOUND CARD: Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTIONS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header< br />3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M .2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2. 0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

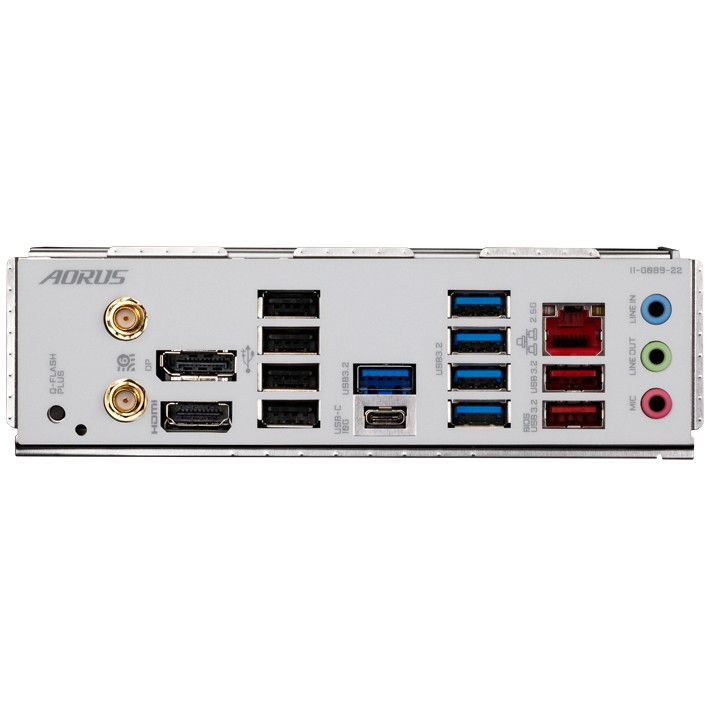

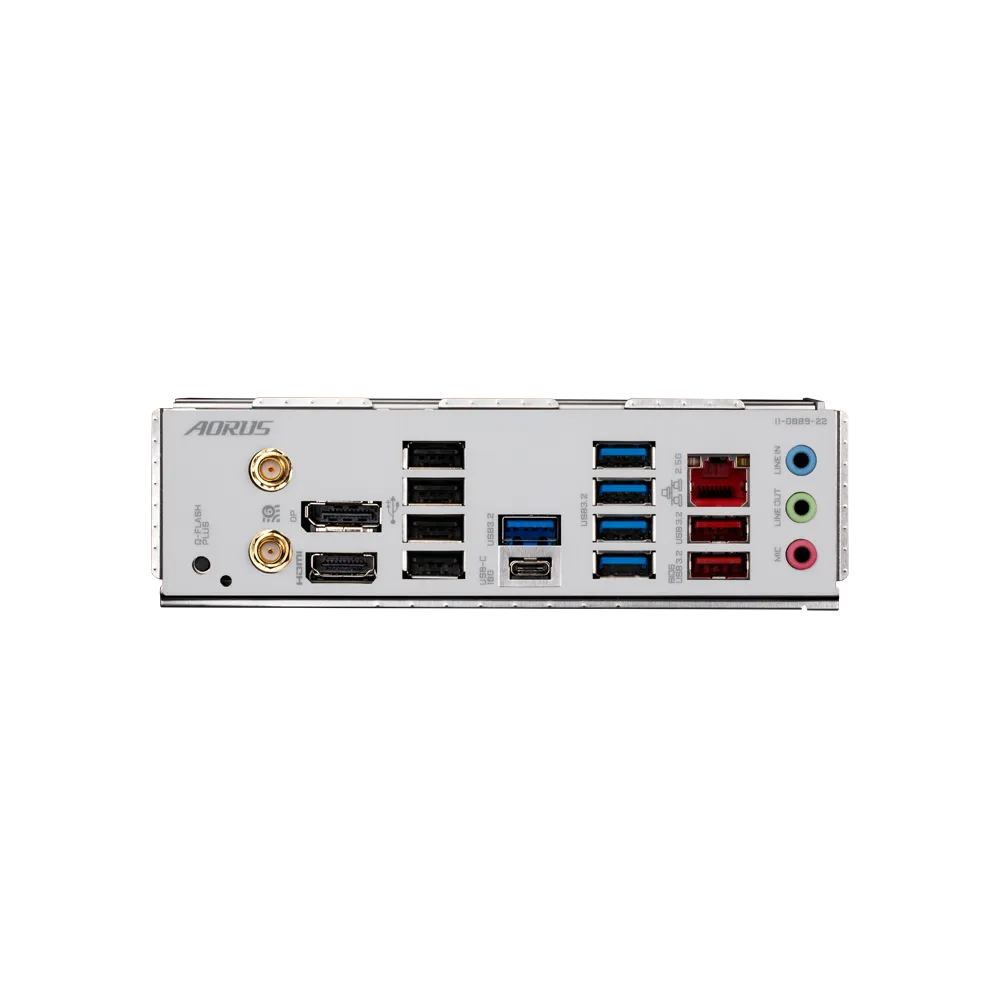

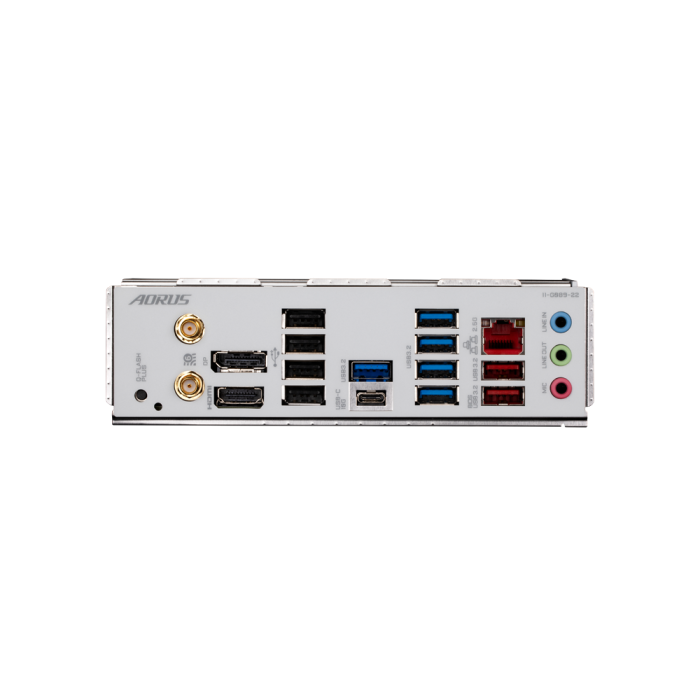

EXTERNAL CONNECTIONS:
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)jk
1 x DisplayPort
1 x HDMI port
1 x USB Type -C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
