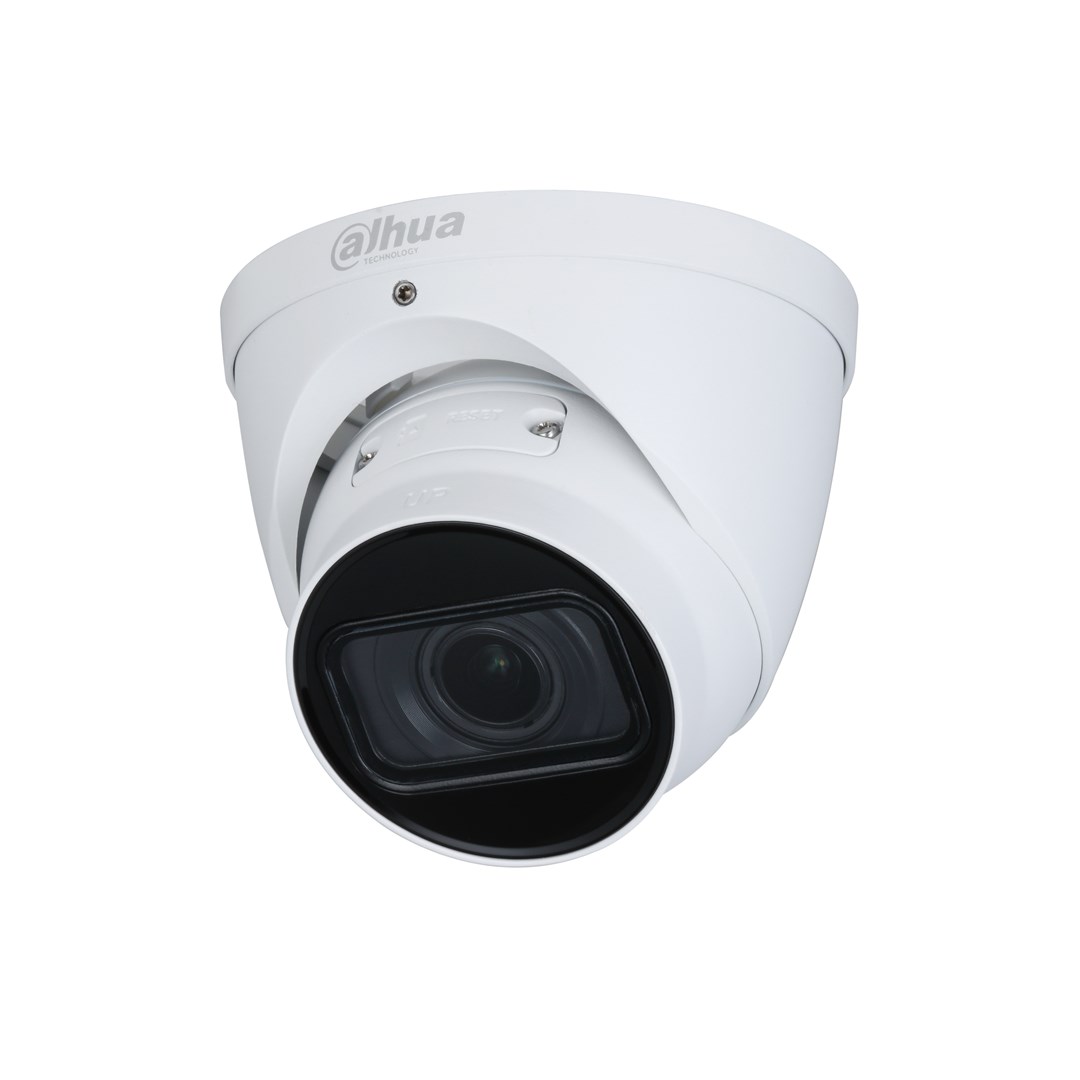

Dahua Technology Entry IPC-HDW1431T-ZS-2812-S4 security camera Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling

Management features Web browser: Yes Packaging content Number of cameras: 1 Power DC output voltage: 12 Power consumption (typical): 6.9 W Power source type: DC, PoE Camera White balance: Manual Angle of rotation: 360° White balance: Outdoor White balance: Auto Minimum illumination: 0.03 lx Lens viewing angle, horizontal: 98 - 31° Pan range: 0 - 355° Camera shutter speed: 1/3 - 1/100000 s White balance: Natural Lens viewing angle, vertical: 55 - 18° Adjustment shutter speed: Auto/Manual Lens viewing angle, diagonal: 116 - 36° Tilt angle range: 0 - 78° Network Ethernet LAN: Yes Ethernet interface type: Fast Ethernet Quality of Service (QoS) support: Yes Networking standards: IEEE 802.3af Streaming method: Multicast Number of users: 20 user(s) Design Mounting type: Ceiling Form factor: Turret International Protection (IP) code: IP67 Housing material: Plastic Product colour: White Housing material: Metal Panoramic camera Number of Privacy masking areas (panoramic camera): 4 Night vision Night vision: Yes LED type: IR Number of illumination LEDs: 2 Night vision distance: 50 m Storage Built-in HDD: No ROM capacity: 128 MB Maximum memory card size: 256 GB Internal memory: 128 MB Compatible memory cards: MicroSD (TransFlash) Card reader integrated: Yes Image sensor Sensor type: CMOS Progressive scan: Yes Optical sensor size: 25.4 / 3 mm (1 / 3") Security Video motion detection: Yes Security algorithms: HTTPS Security algorithms: 802.1x RADIUS System requirements Mobile operating systems supported: iOS Mobile operating systems supported: Android Weight & dimensions Height: 108.3 mm Depth: 122 mm Width: 122 mm Weight: 690 g Diameter: 12.2 cm Operational conditions Storage temperature (T-T): -40 - 60 °C Operating relative humidity (H-H): 0 - 95% Operating temperature (T-T): -30 - 60 °C Lens system Identify distance (tele): 20 m Recognize distance (wide): 13.2 m Observe distance (tele): 80 m Detect distance (tele): 200 m Closest focusing distance: 0.8 m Detect distance (wide): 66 m Maximum aperture number: 1.7 Recognize distance (tele): 40 m Observe distance (wide): 26.4 m Number of lenses: 1 Identify distance (wide): 6.6 m Focal length range: 2.8 - 12 mm Performance Day/night mode: Yes Connectivity technology: Wired Wide Dynamic Range (WDR): Yes Type: IP security camera Certification: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B Placement supported: Indoor & outdoor Dynamic range: 120 dB Video Frame rate: 30 fps Highlight Compensation (HLC): Yes Video formats supported: H.264 Noise reduction: Yes Back Light Compensation (BLC): Yes Video formats supported: H.265 Total megapixels: 4 MP Supported graphics resolutions: 1280 x 720 (HD 720) Supported graphics resolutions: 2560 x 1440 Supported graphics resolutions: 640 x 480 (VGA) Supported graphics resolutions: 352 x 288 Maximum resolution: 2688 x 1520 pixels Supported graphics resolutions: 704 x 576 Supported graphics resolutions: 1280 x 960 Supported graphics resolutions: 704 x 480 Supported graphics resolutions: 2688 x 1520 Supported graphics resolutions: 352 x 240 Supported graphics resolutions: 2304 x 1296 Supported graphics resolutions: 1920 x 1080 (HD 1080) Video recording: Yes Video compression formats: H.265 Video compression formats: H.264B Supported video modes: 1080p Video compression formats: H.264 Video compression formats: M-JPEG Bit rate: H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps Video streaming: Yes Supported video modes: 720p Smart IR: Yes Noise reduction technology: 3D noise reduction Privacy masking: Yes Region of Interest (ROI) encoding: Yes Gain control type: Auto/Manual Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR) Packaging data Package weight: 870 g Ports & interfaces Ethernet LAN (RJ-45) ports: 1
